Heat Shields: Description
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

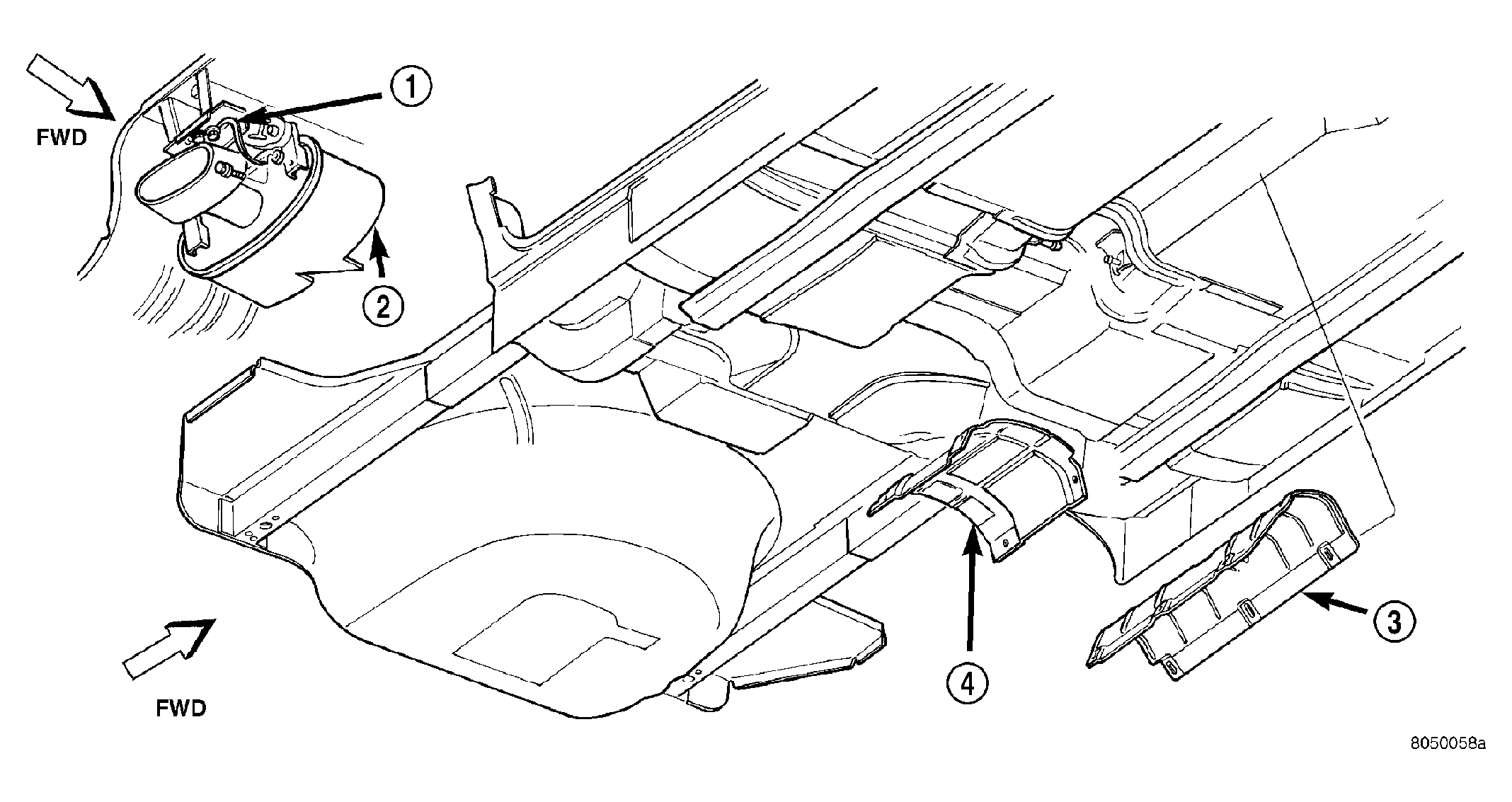

The exhaust system heat shields are attached to the under body of the vehicle. See Fig 1.
| 1 - GROUND STRAP |
| 2 - MUFFLER |
| 3 - HEAT SHIELD |
| 4 - RESONATOR HEAT SHIELD |
