Exhaust System: Description

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

The exhaust system on the 2.0L/2.4L engine models consists of a front mounted catalytic converter, resonator/pipe assembly, muffler/pipe assembly, band clamps, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

The exhaust system on the 2.7L engine model consists of front and rear bank catalytic converters, cross-under pipe, connector pipe, resonator/pipe assembly, muffler/pipe assembly, band clamps, and support isolators. The upstream oxygen sensors are located in the front and rear exhaust manifolds. The downstream oxygen sensors are located in the cross-under pipe.

Resonators, mufflers, and exhaust pipes are tuned to each powertrain combination. See Fig 1, Fig 2 and Fig 3.

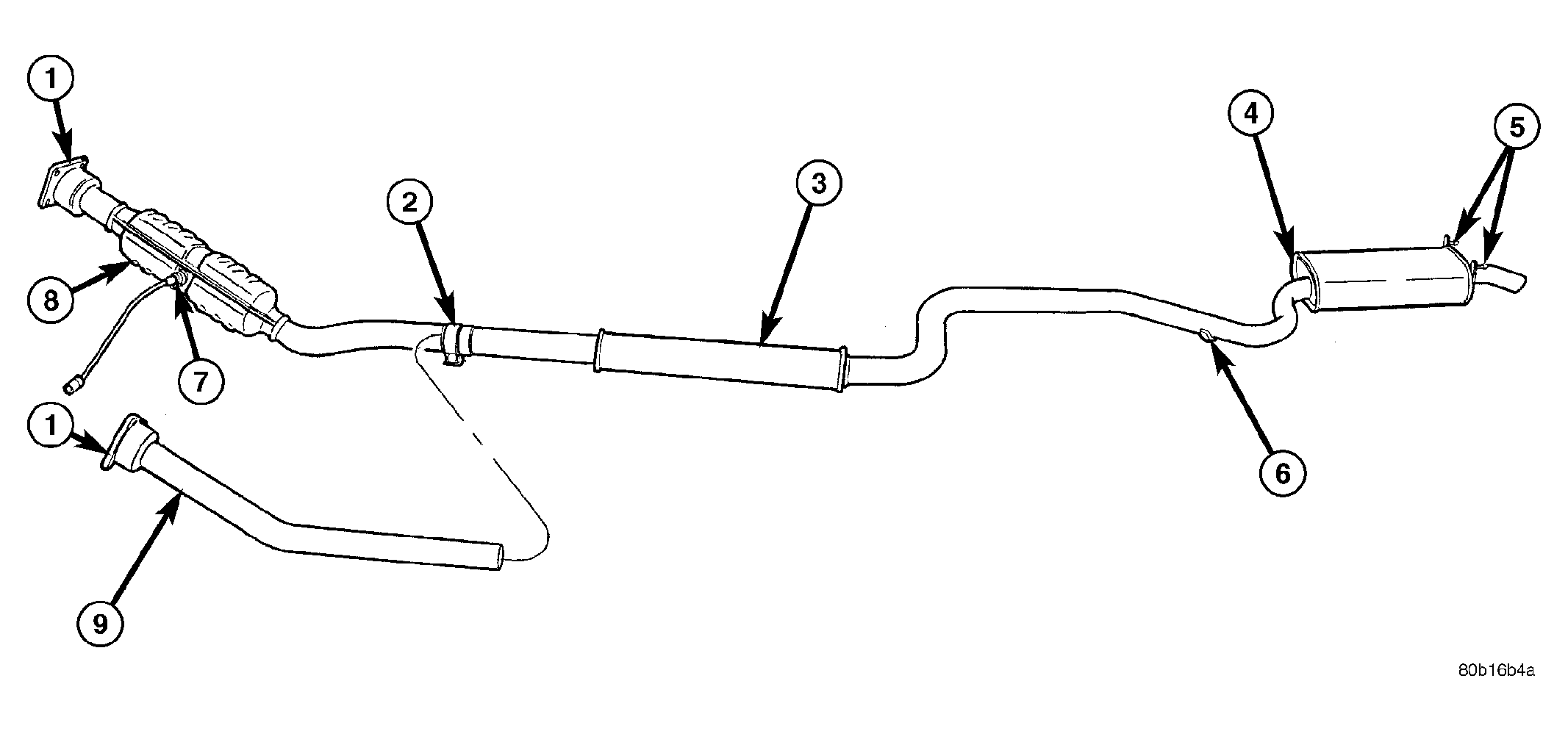

Fig 1: Exhaust System

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLEX JOINT

2 - BAND CLAMP

3 - RESONATOR ALIGNMENT PIN

4 - RESONATOR/PIPE ASSEMBLY

5 - BAND CLAMP

6 - MUFFLER/PIPE ASSEMBLY

7 - REAR MUFFLER SUPPORTS

8 - MIDPIPE SUPPORT

9 - OXYGEN SENSOR

10 - CATALYTIC CONVERTOR (2.0L/2.4L)

11 - CONNECTOR PIPE (2.7L)

Fig 2: Exhaust System Supports

Courtesy of DAIMLERCHRYSLER CORP.

1 - GROUND STRAP

2 - RESONATOR GUIDANCE BRACKET

3 - MUFFLER/FRONT PIPE SUPPORT ISOLATOR

4 - REAR MUFFLER SUPPORT ISOLATORS

Fig 3: Band Clamp

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP SIZE

2 - TORQUE SPECIFICATION
