Connector/Ground/Splice Location: Description

WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

This article provides illustrations identifying connector, ground, and splice locations in the vehicle. Connector, ground, and splice indexes are provided. Use the wiring diagrams for connector, ground, and splice identification (Refer to appropriate Wiring Information article in ELECTRICAL). Refer to the appropriate index below for the proper figure number. For items that are not shown in this article N/S is placed in the Fig. column.

CONNECTORS

Connector Name/Number Color Location Fig.
A/C Compressor Clutch BK At A/C Compressor Clutch Fig 5, Fig 6.

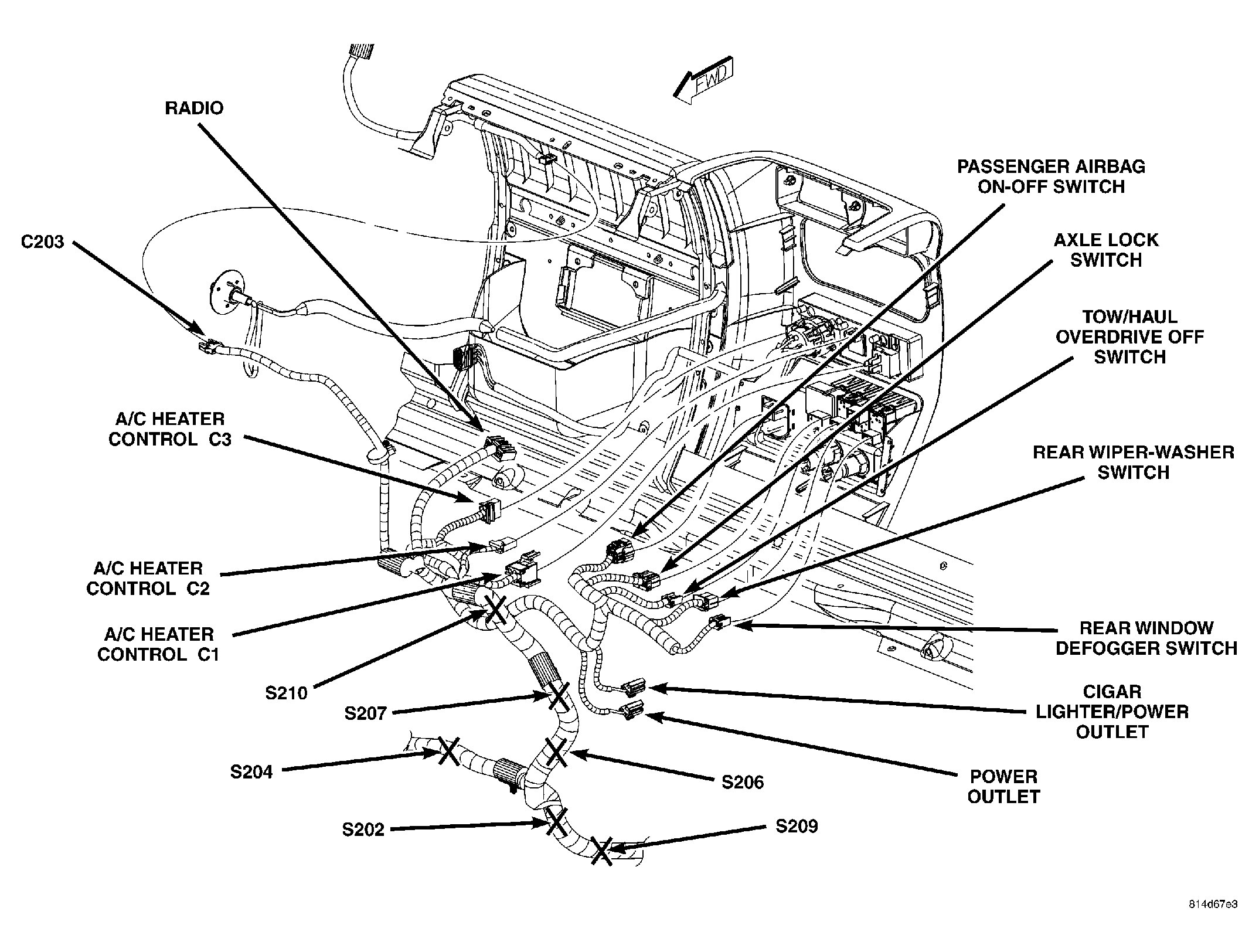

A/C Heater Control - C1 - Center of Instrument Panel Fig 26, Fig 29.
A/C Heater Control - C2 - Center of Instrument Panel Fig 26, Fig 29.
A/C Heater Control - C3 - Center of Instrument Panel Fig 26, Fig 29.

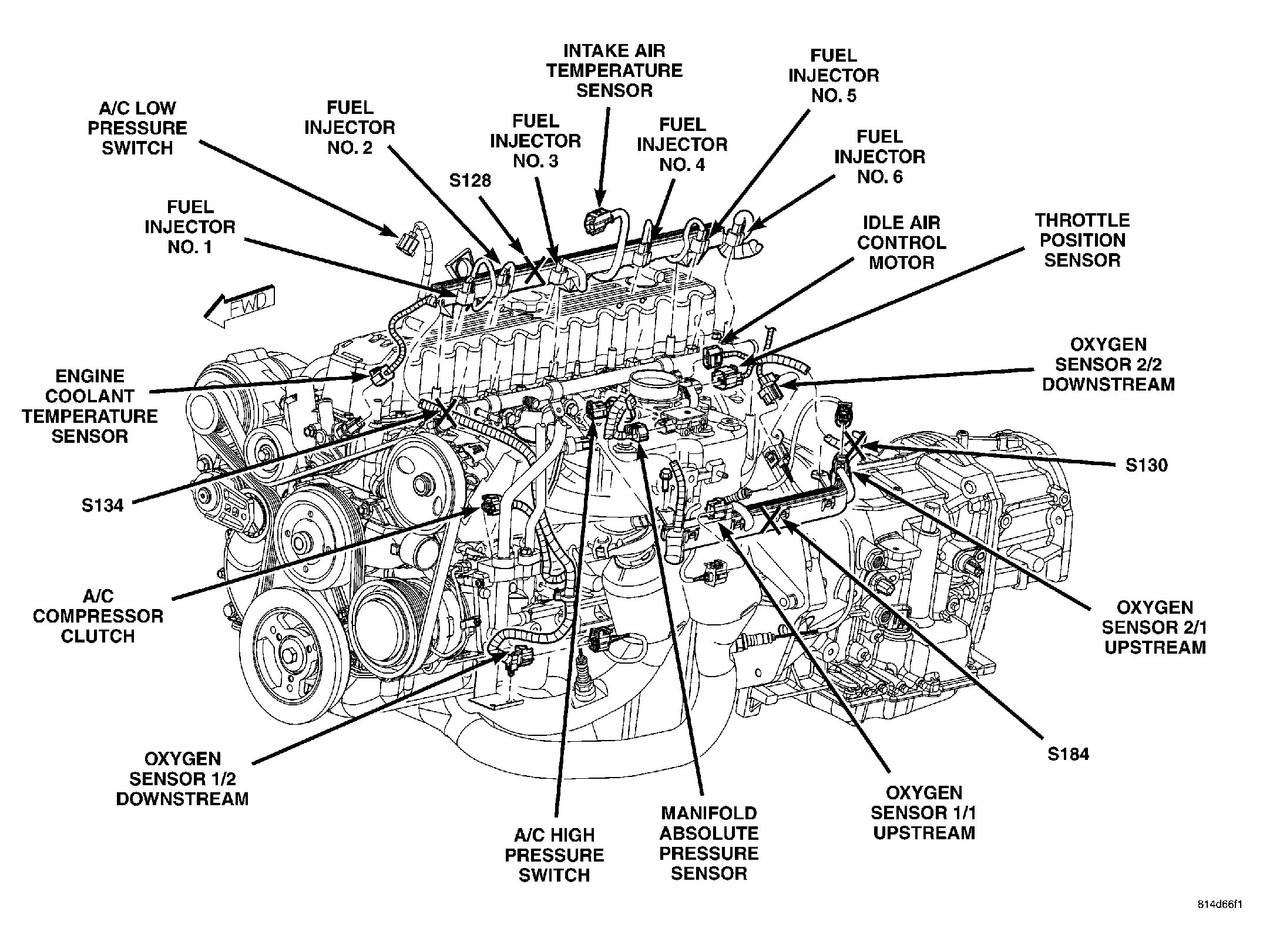

A/C High Pressure Switch BK Left Side of Engine Fig 5.
A/C Low Pressure Switch GN Near Powertrain Control Module Fig 5, Fig 6.
A/C Pressure Transducer (2.4L) BK Near Compressor Fig 6.

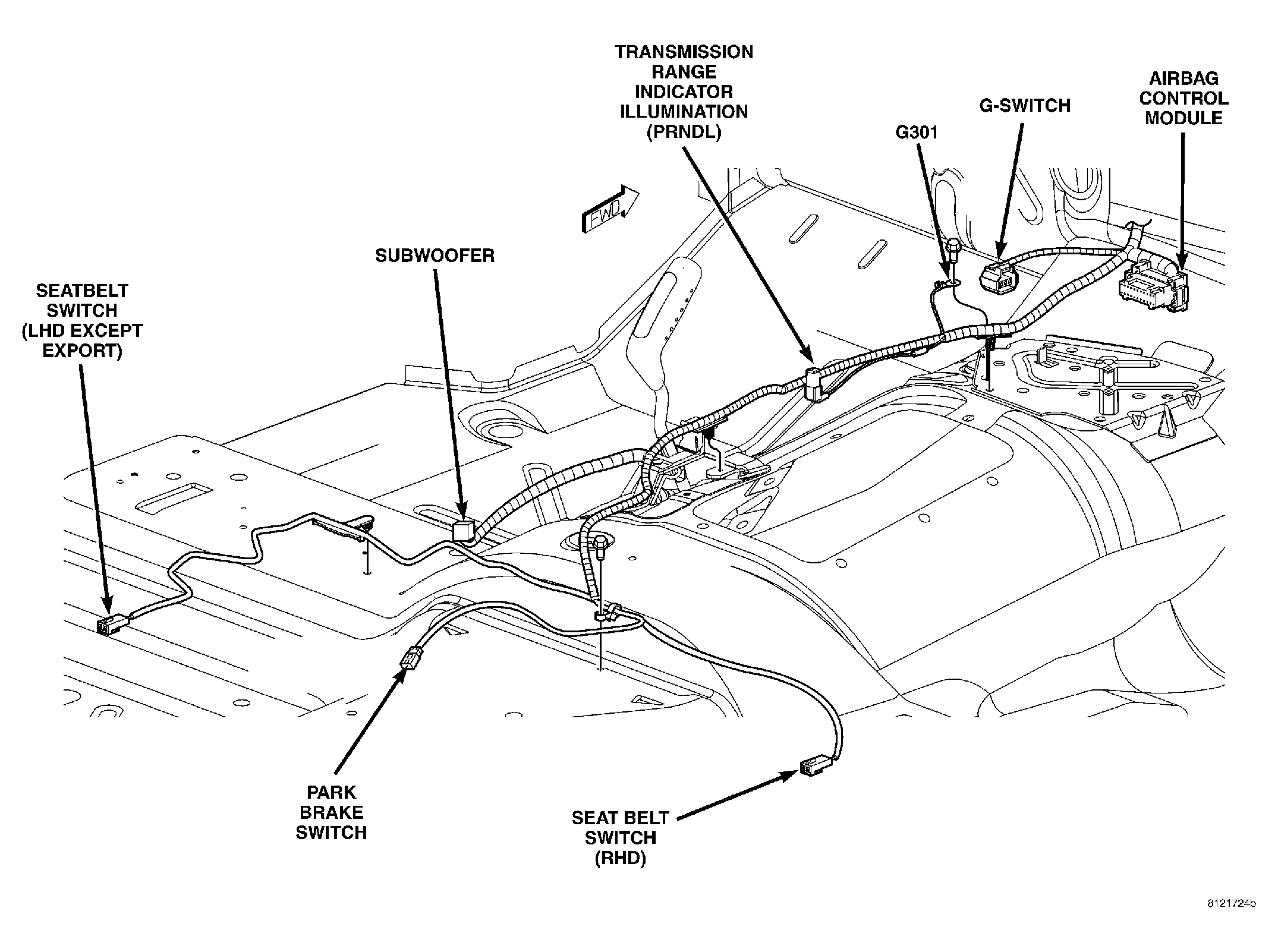

Airbag Control Module YL Front of Floor Pan Tunnel Fig 20.
Ambient Temperature Sensor (Compass/Temperature Mirror) Left Front of Engine Compartment Fig 1.
Ambient Temperature Sensor (Engine) Left Front Engine Compartment Fig 2.
Axle Lock Switch (Off Road) - Near Cigar Lighter Fig 26.

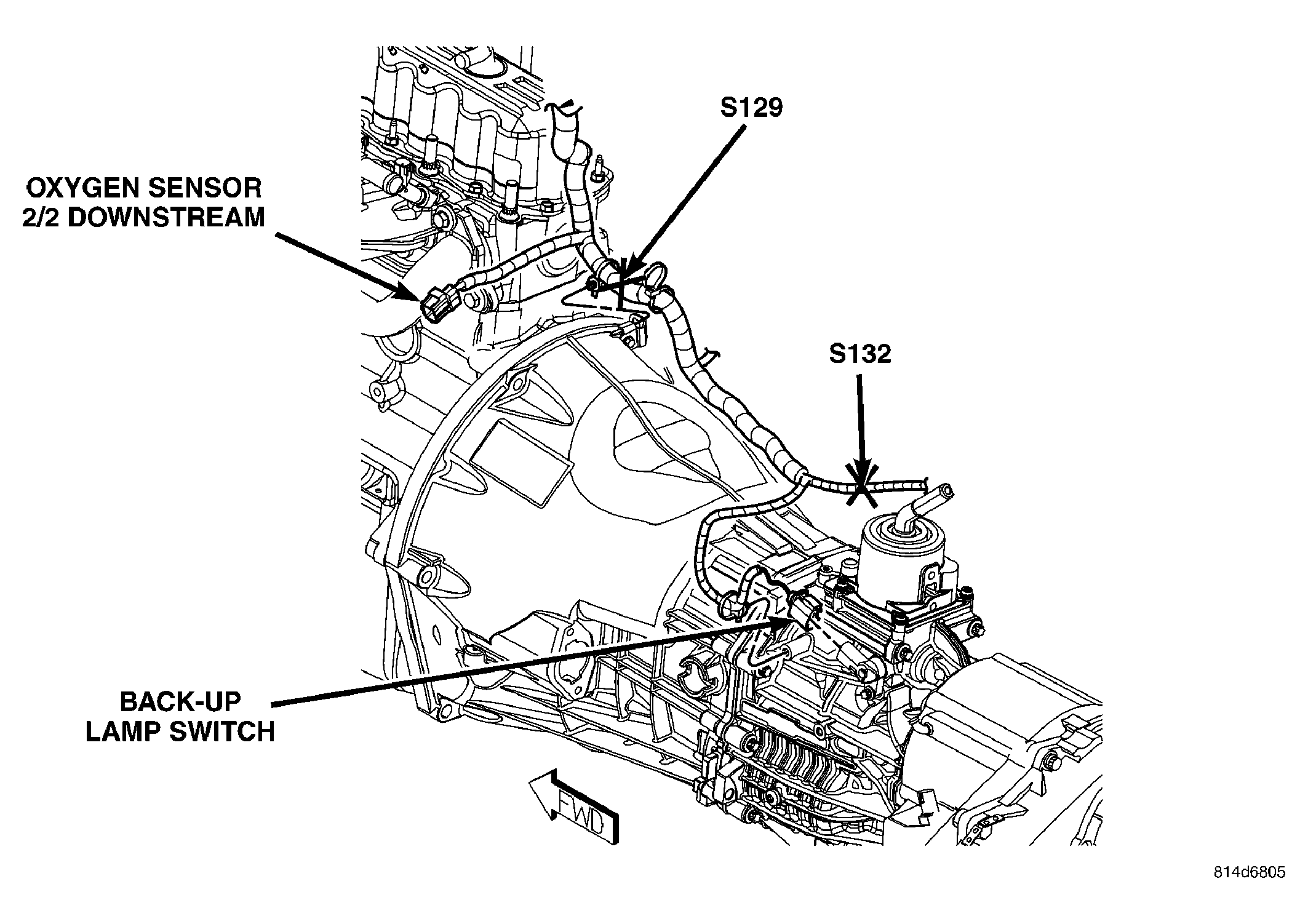

Back-up Lamp Switch (M/T) BK Right Side of Transmission Fig 35, Fig 37.
Battery Rear Engine Compartment Fig 11.
Battery Temperature Sensor BK Under Battery Tray Fig 10, Fig 12.
Blend Door Actuator On HVAC Harness N/S
Blower Motor On HVAC Harness N/S
Blower Motor Relay BK On HVAC Harness N/S
Blower Motor Resistor Block On HVAC Harness N/S
Brake Lamp Switch GY Top of Brake Pedal Bracket Fig 22, Fig 30.
Brake Transmission Shift Interlock Solenoid WT Near Steering Column Fig 30.
Brake Warning Indicator Switch BK On Brake Master Cylinder Fig 12, Fig 14.

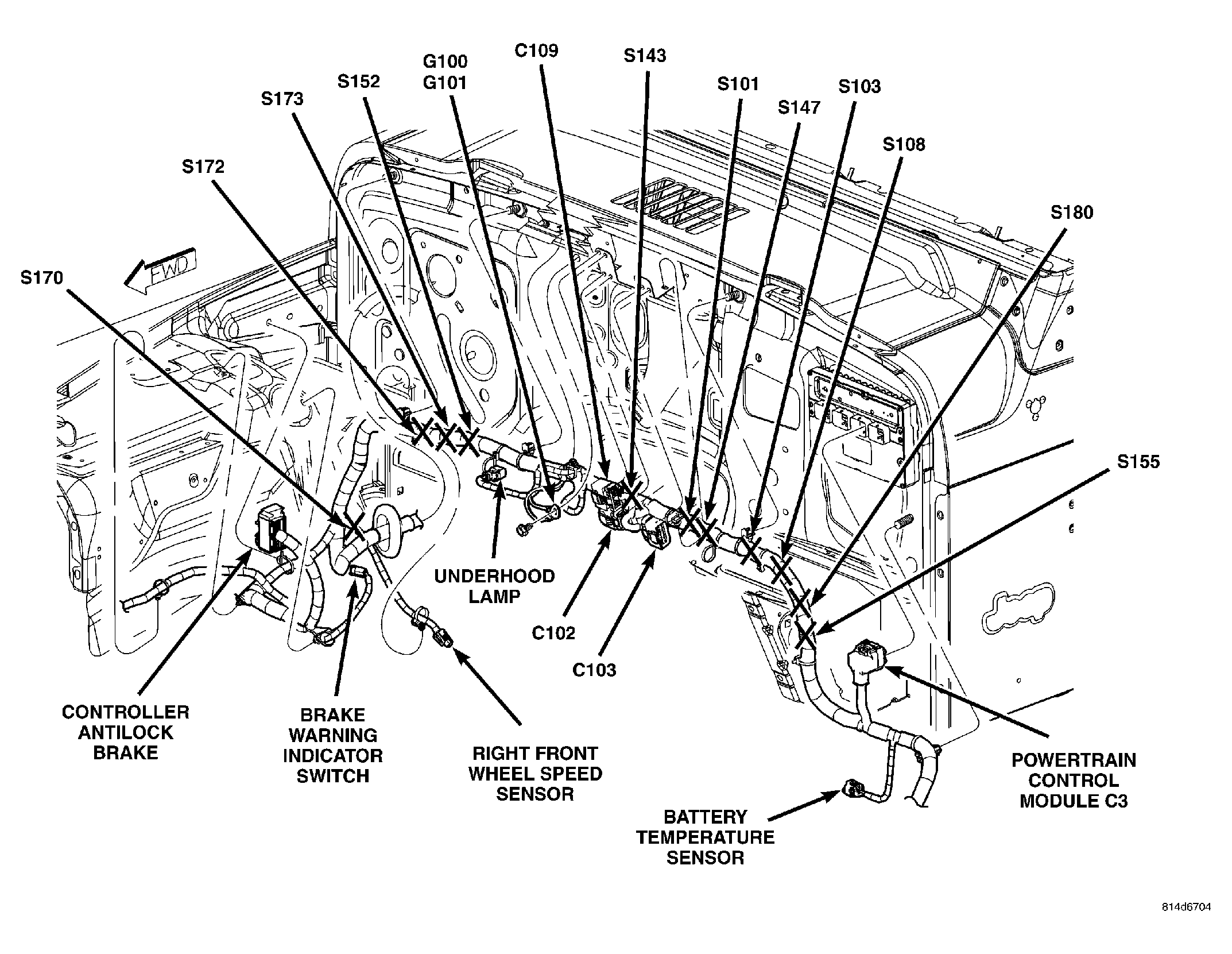

C102 GY Rear Engine Compartment Fig 10, Fig 12.
C103 BK Rear of Engine Compartment Fig 10, Fig 12, Fig 17, Fig 18.
C104 BK Rear of Engine Compartment Fig 17, Fig 18.
C109 (A/T) LT-GY Rear of Engine Compartment Fig 10, Fig 12, Fig 17, Fig 18.
C170 (LHD) WT Left Kick Panel Fig 24.
C170 (RHD) WT Right Kick Panel Fig 27.
C180 BK Below EVAP/Purge Solenoid N/S

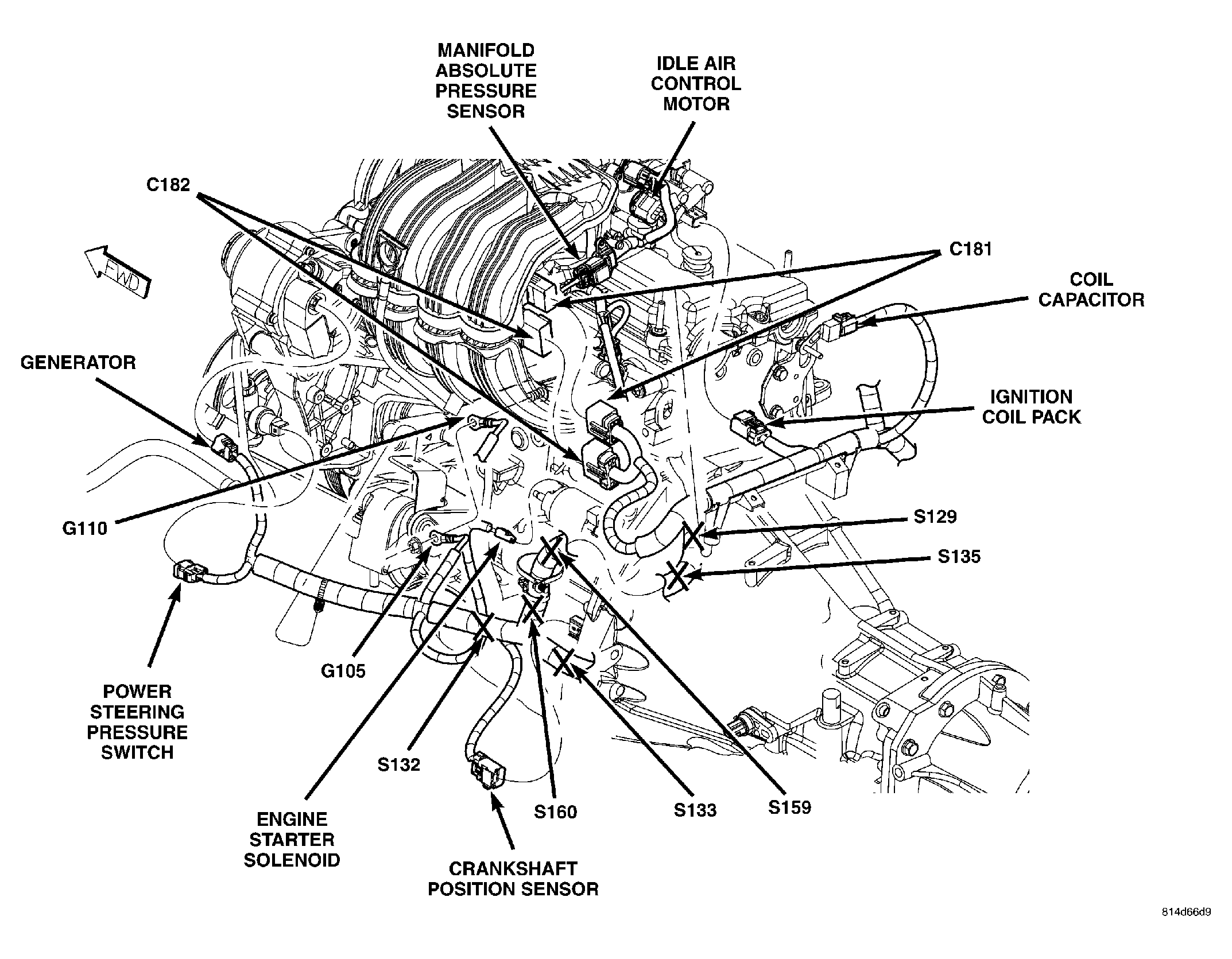

C181 BK Left Rear of Engine Head Fig 4.
C182 BK Left Rear of Engine Head Fig 4.
C203 (LHD) GN Left Kick Panel Fig 26.
C203 (RHD) GN Right Kick Panel Fig 29.
C205 LT GN Left Kick Panel Fig 25, Fig 27.
C300 (LHD) GY Left Kick Panel Fig 22, Fig 24, Fig 38.
C300 (RHD GY Right Kick Panel Fig 23, Fig 27.
C301 (LHD) YL Left Kick Panel Fig 22, Fig 38.
C301 (RHD) YL Right Kick Panel, see LHD Similar Fig 23.
C324 (Speaker Pod) WT/BK Right Side of Sport Bar N/S
C325 (Speaker Pod) WT/BK Left Side of Sport Bar Fig 38, Fig 39.

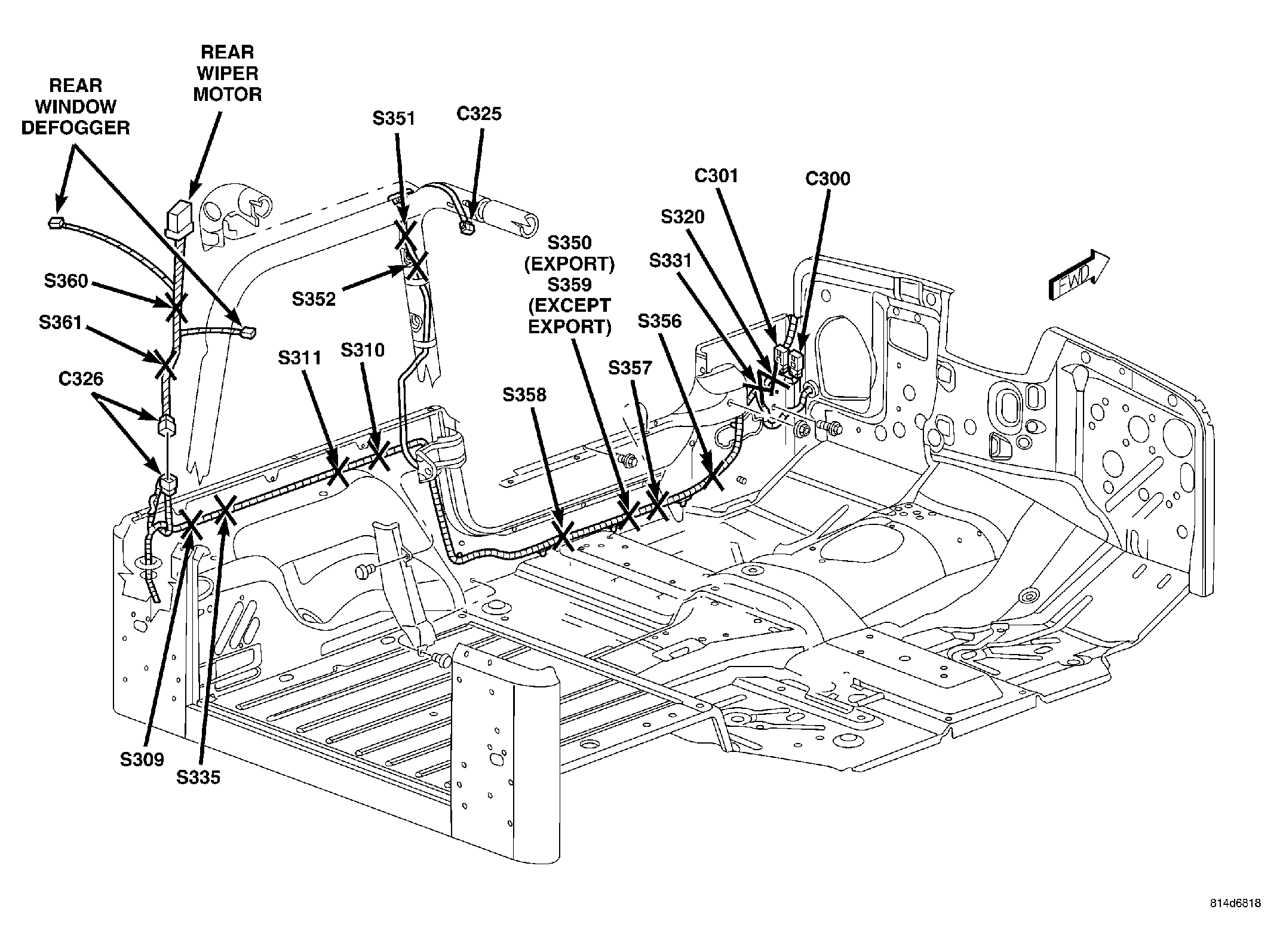

C326 (Hard Top) BK Left Rear Quarter Panel Fig 38, Fig 39.
C329 (Export) BK Left Rear of Rear Bumper Fig 41.

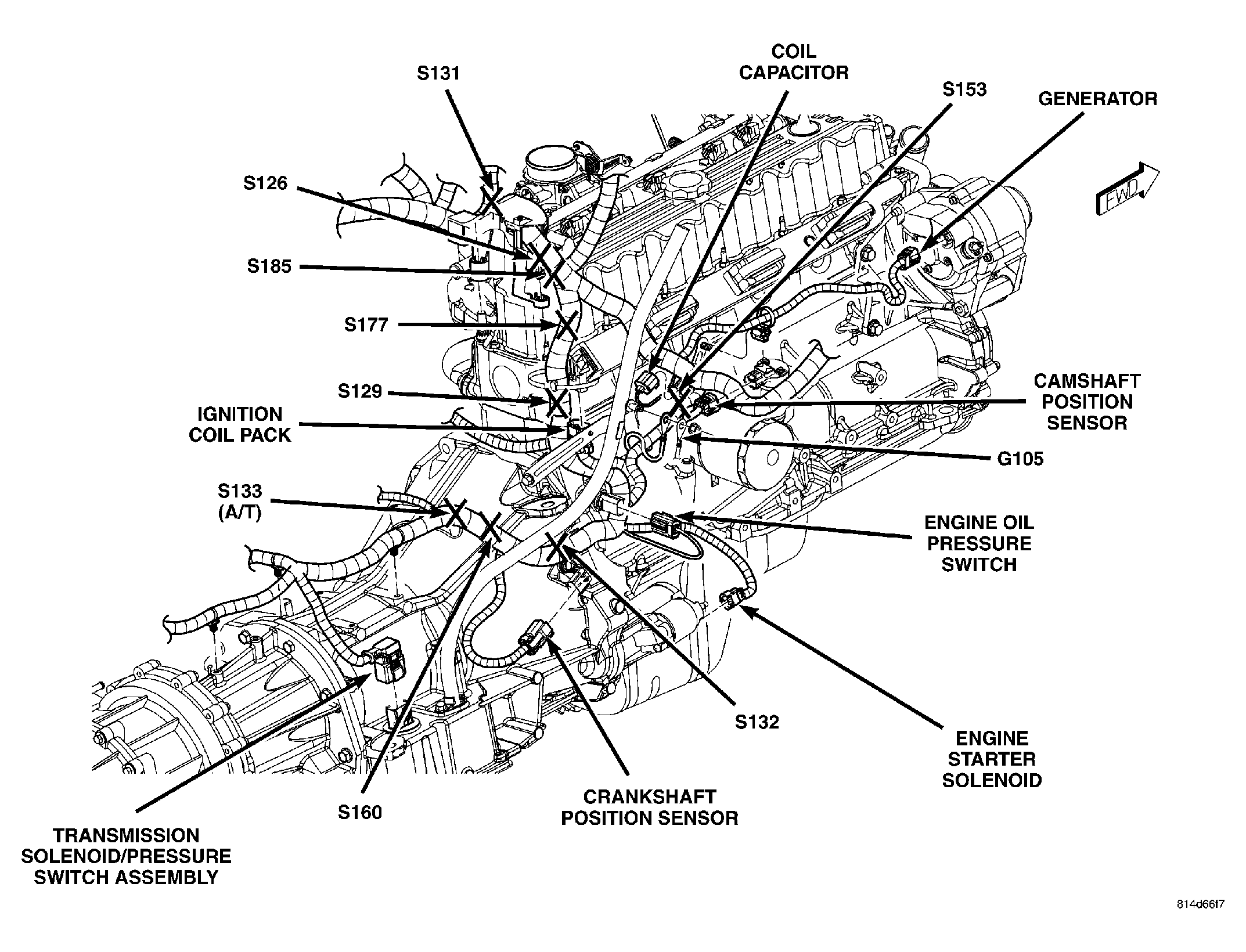

Camshaft Position Sensor (4.0L) BK Right Side of Engine Fig 7.
Camshaft Position Sensor (2.4L) BK Right Front Corner of Engine Head, behind Air Cleaner N/S
Center High Mounted Stop Lamp BK Near Right Rear Lamp Assembly Fig 41, Fig 42.
Cigar Lighter/Power Outlet RD Rear of Cigar Lighter Fig 26, Fig 28.

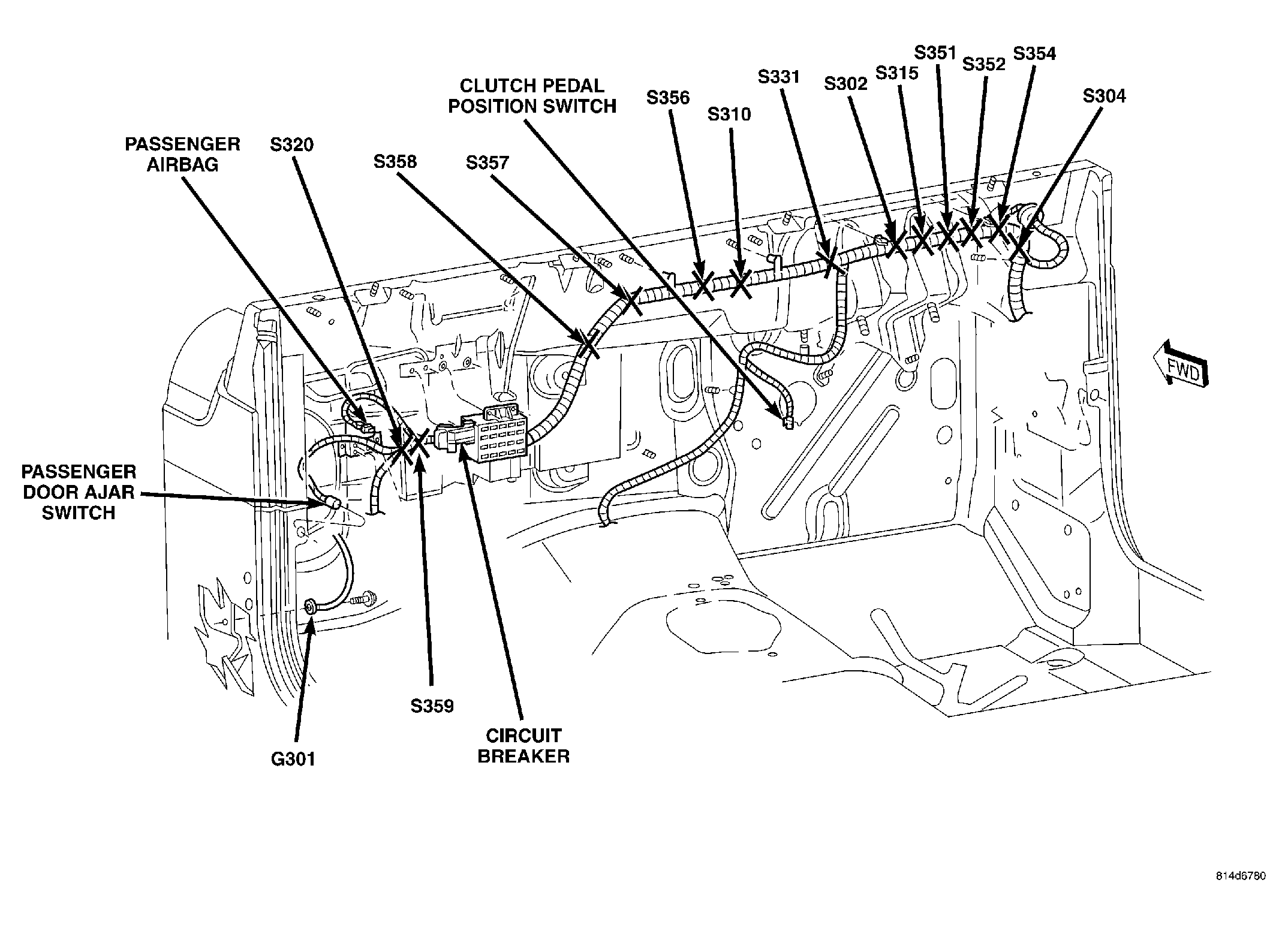

Circuit Breaker GY Near Day Time Running Lamp Module Fig 19, Fig 21.
Clockspring - C1 NAT Rear of Clockspring Fig 30.
Clockspring - C2 YL Rear of Clockspring Fig 30.
Clutch Pedal Position Switch (M/T) BK Top of Clutch Pedal Bracket Fig 21, Fig 22.
Coil Capacitor (2.4L) Rear Engine Fig 4, Fig 17.
Coil Capacitor (4.0L) BK Right Rear of Engine Head Fig 7.
Compass/Temperature Mirror BK At Top Center of Windshield N/S
Controller Anti-Lock Brake BK Rear Left Side of Dash Panel Fig 12, Fig 14.
Crankshaft Position Sensor (4.0L) BK At Rear of Intake Manifold Fig 7.
Crankshaft Position Sensor (2.4L) BK Left Bellhousing Fig 4.
Data Link Connector BK Bottom Driver Side of Instrument Panel Fig 24, Fig 27.
Daytime Running Lamp Module (Except Export) BK Left Side of Engine Compartment Fig 10.
Driver Airbag Squib YL Under Horn Pad Fig 31.

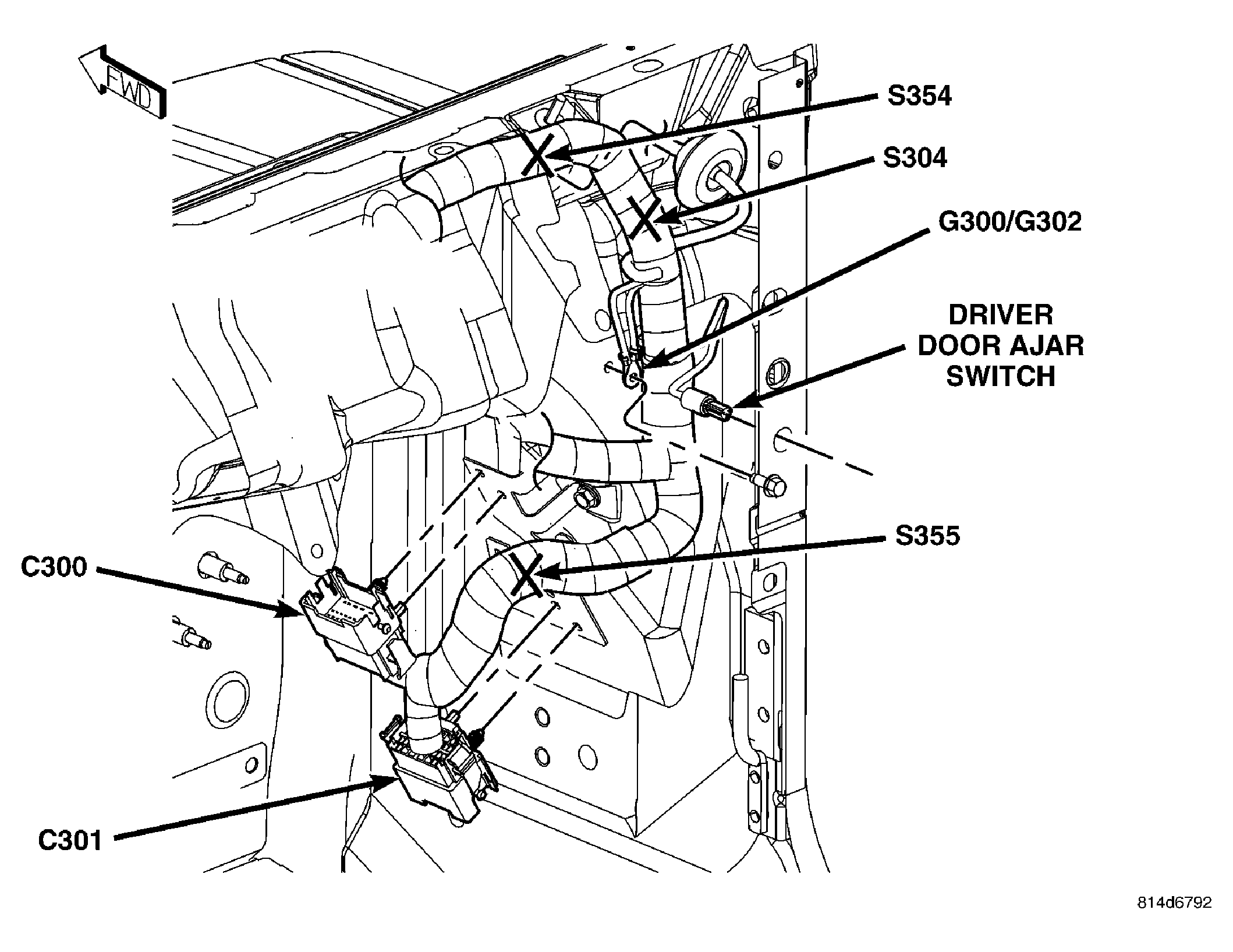

Driver Door Ajar Switch NAT At "A" Pillar Fig 22, Fig 23.
Engine Coolant Temperature Sensor BK On Thermostat Housing Fig 5, Fig 18.
Engine Oil Pressure Switch (4.0L) BK Right Side of Engine Block Fig 7.
Engine Oil Pressure Switch (2.4L) BK Below A/C Compressor N/S
Engine Starter Motor Left Rear of Engine Fig 3, Fig 8.
Engine Starter Solenoid At Starter Motor Fig 4, Fig 7.
EVAP/Purge Solenoid BK Left Fender Side Shield Fig 13, Fig 14.

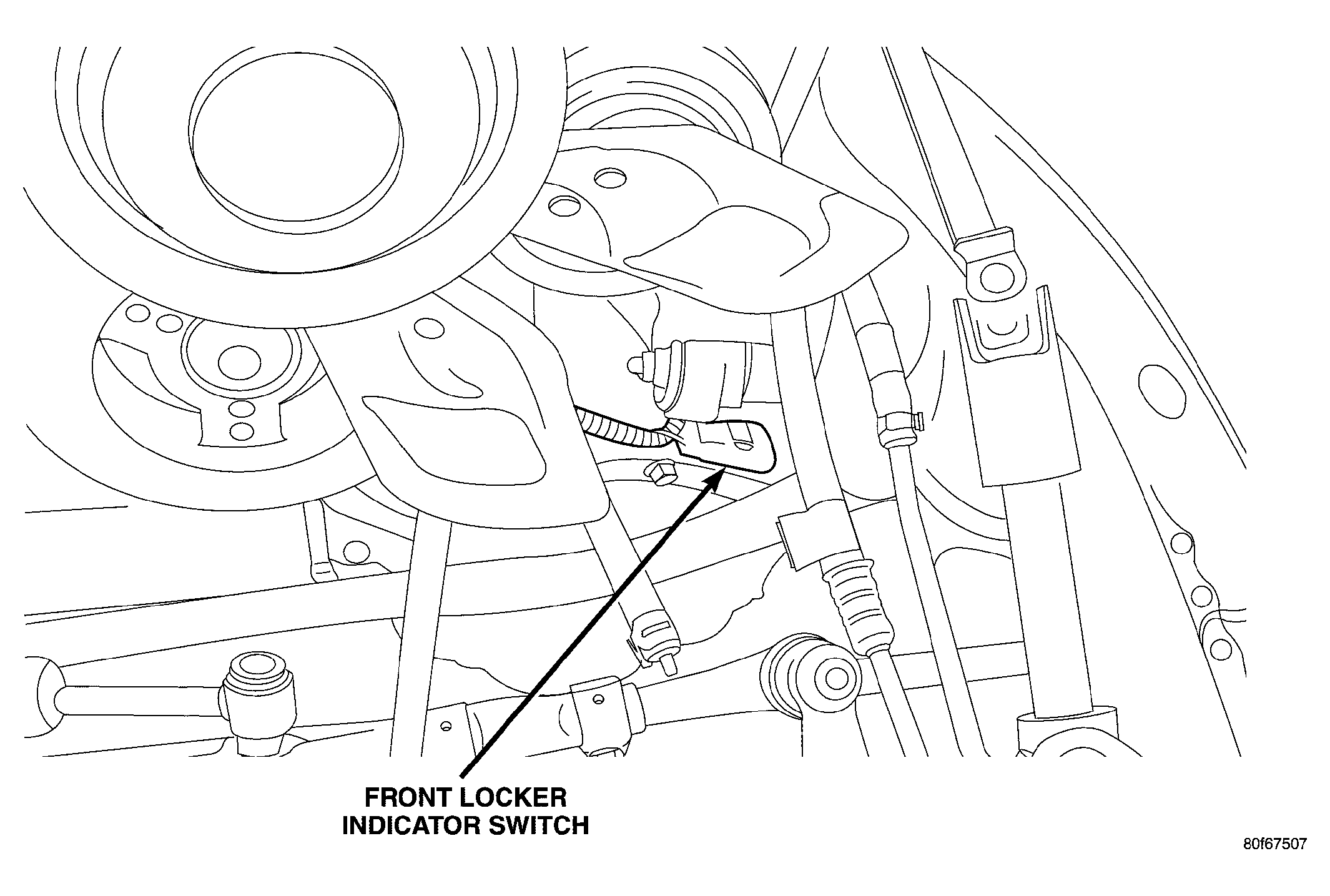

Front Locker Indicator Switch (Off Road) BK Top of Front Differential Fig 33.

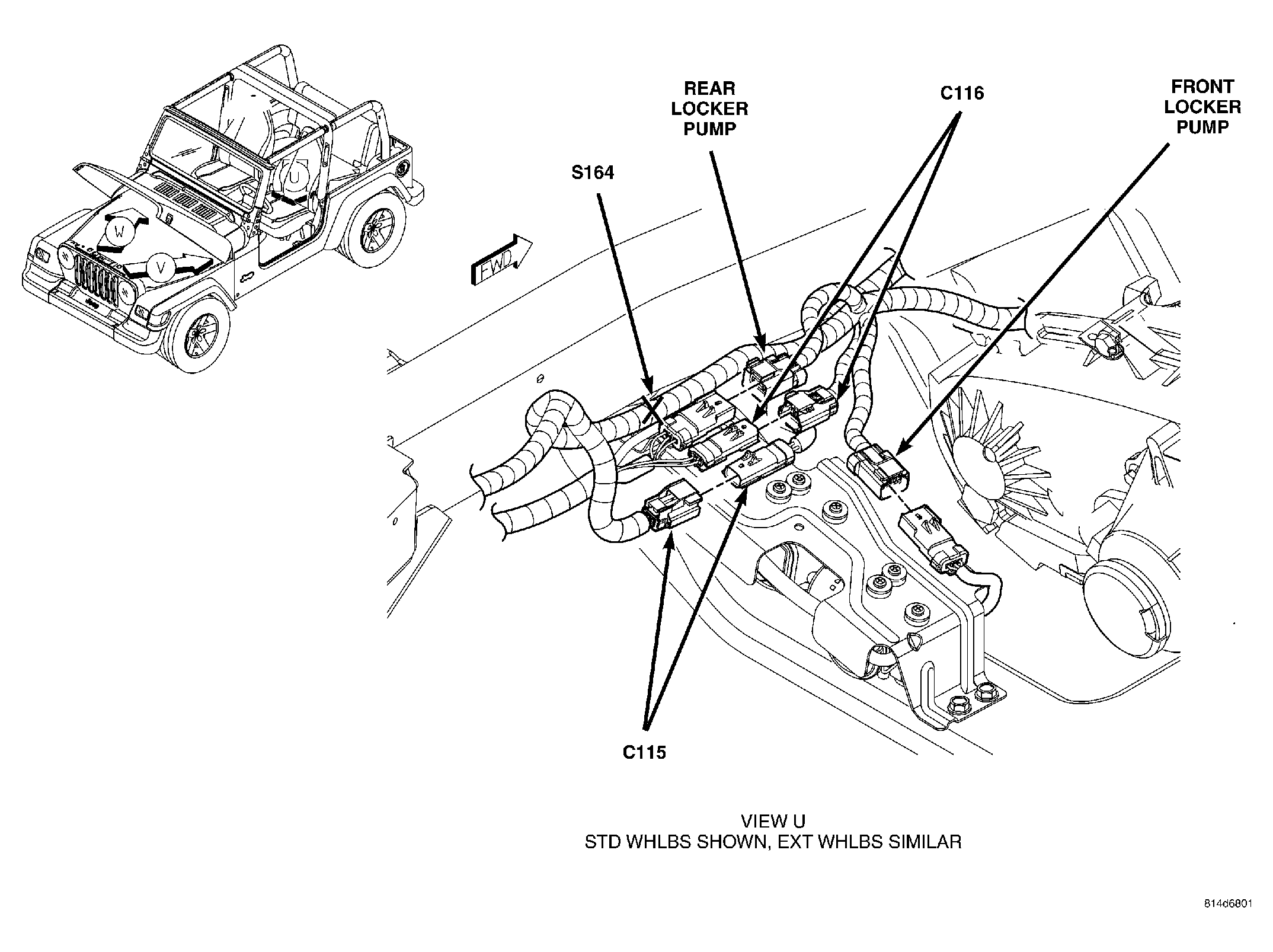

Front Locker Pump (Off Road) LT/GY Top of Locker Pump Bracket Fig 32.
Front Washer Pump BK Under Washer Fluid Reservoir Fig 1.

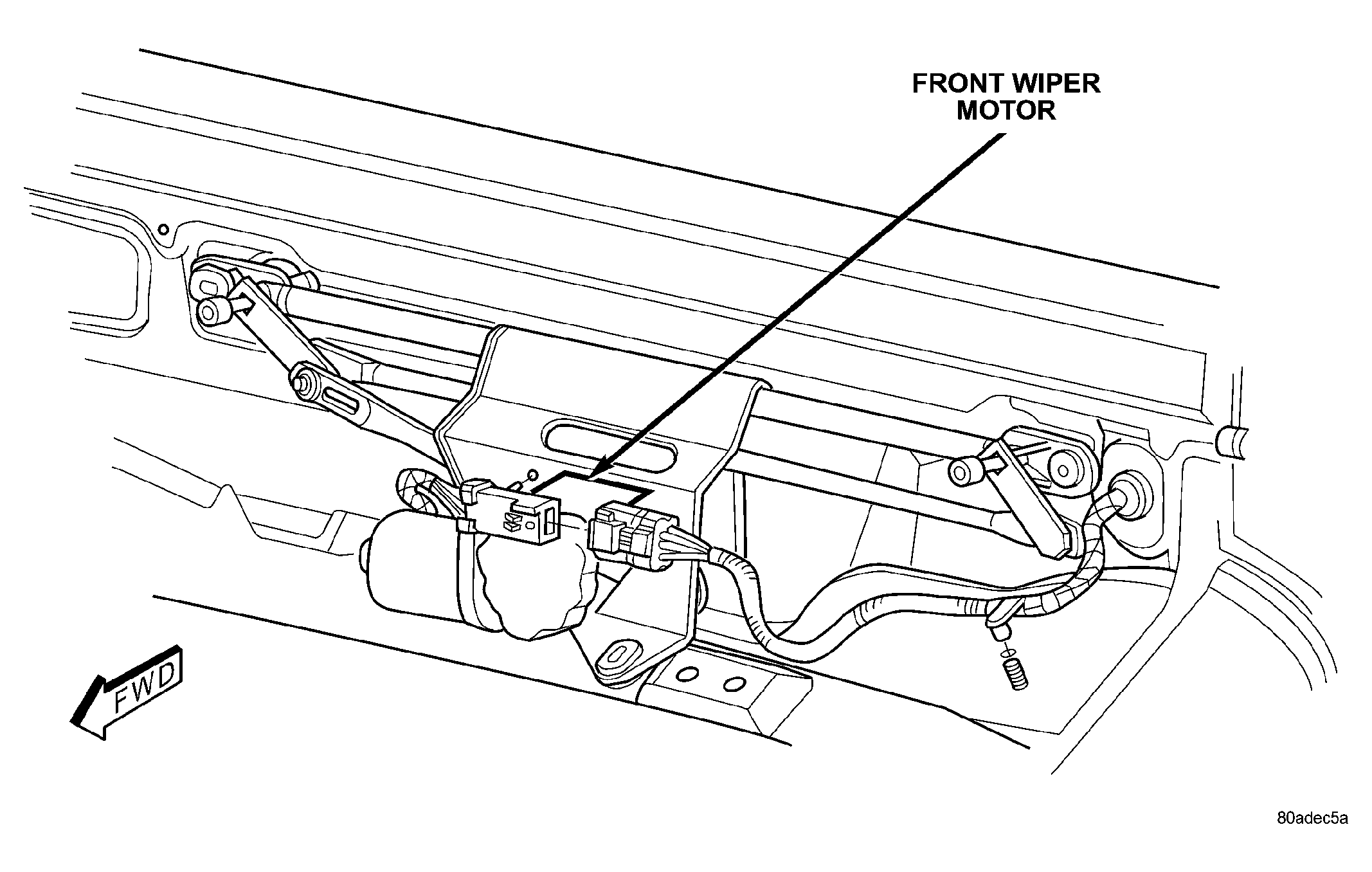

Front Wiper Motor BK At Motor Fig 15.
Fuel Injector NO.1 (4.0L) BK At Injector Fig 5.
Fuel Injector NO.2 (4.0L) BK At Injector Fig 5.
Fuel Injector NO.3 (4.0L) BK At Injector Fig 5.
Fuel Injector NO.4 (4.0L) BK At Injector Fig 5.
Fuel Injector NO.5 (4.0L) BK At Injector Fig 5.
Fuel Injector NO.6 (4.0L) BK At Injector Fig 5.

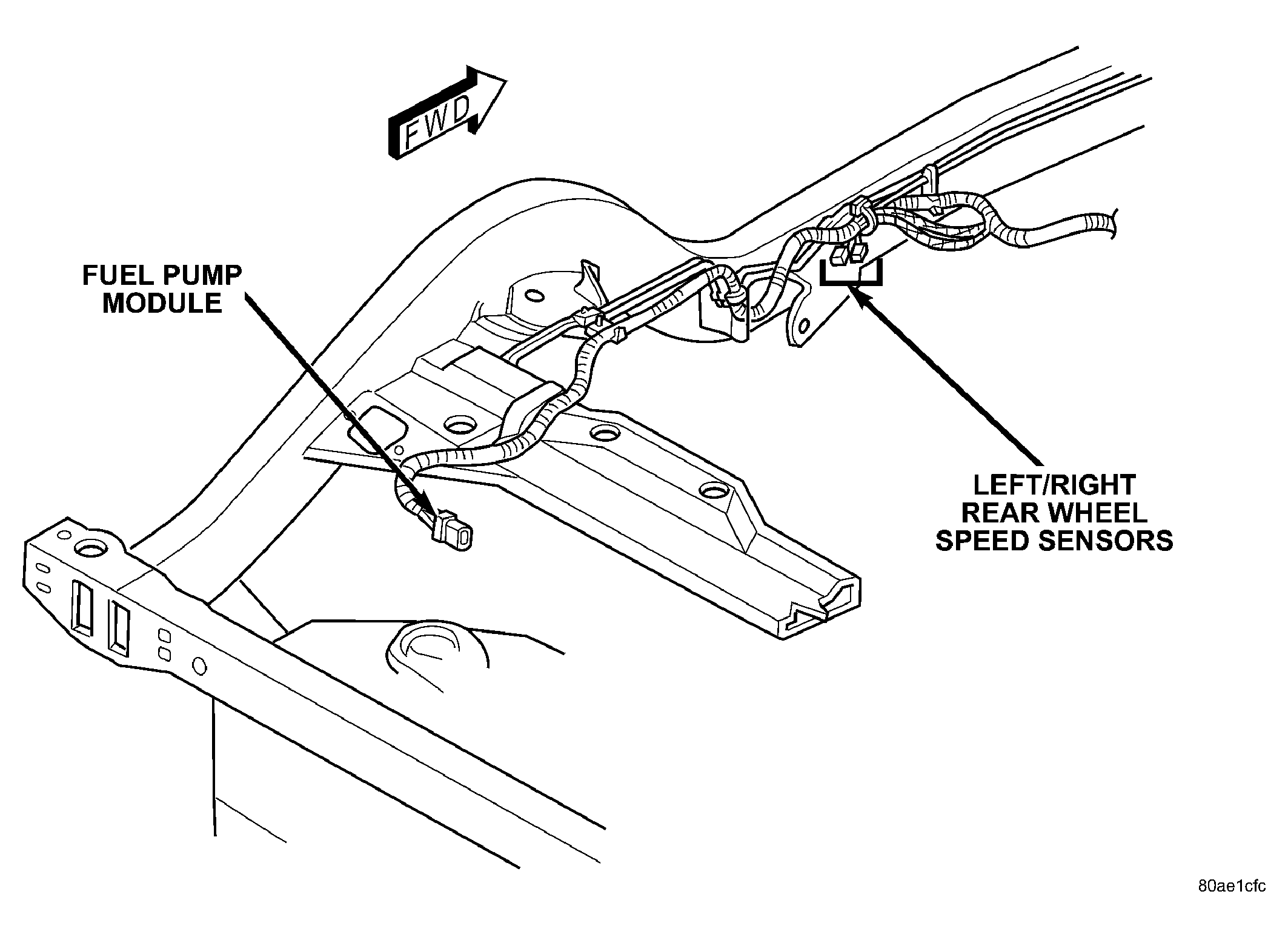

Fuel Pump Module BK Above Fuel Tank Fig 40.
G Switch BK Near T/O for Controller Anti-Lock Brake Fig 20.
Generator BK Rear of Generator Fig 3, Fig 7, Fig 8.
Headlamp Leveling Switch (Export) WT At Switch Fig 24, Fig 27.

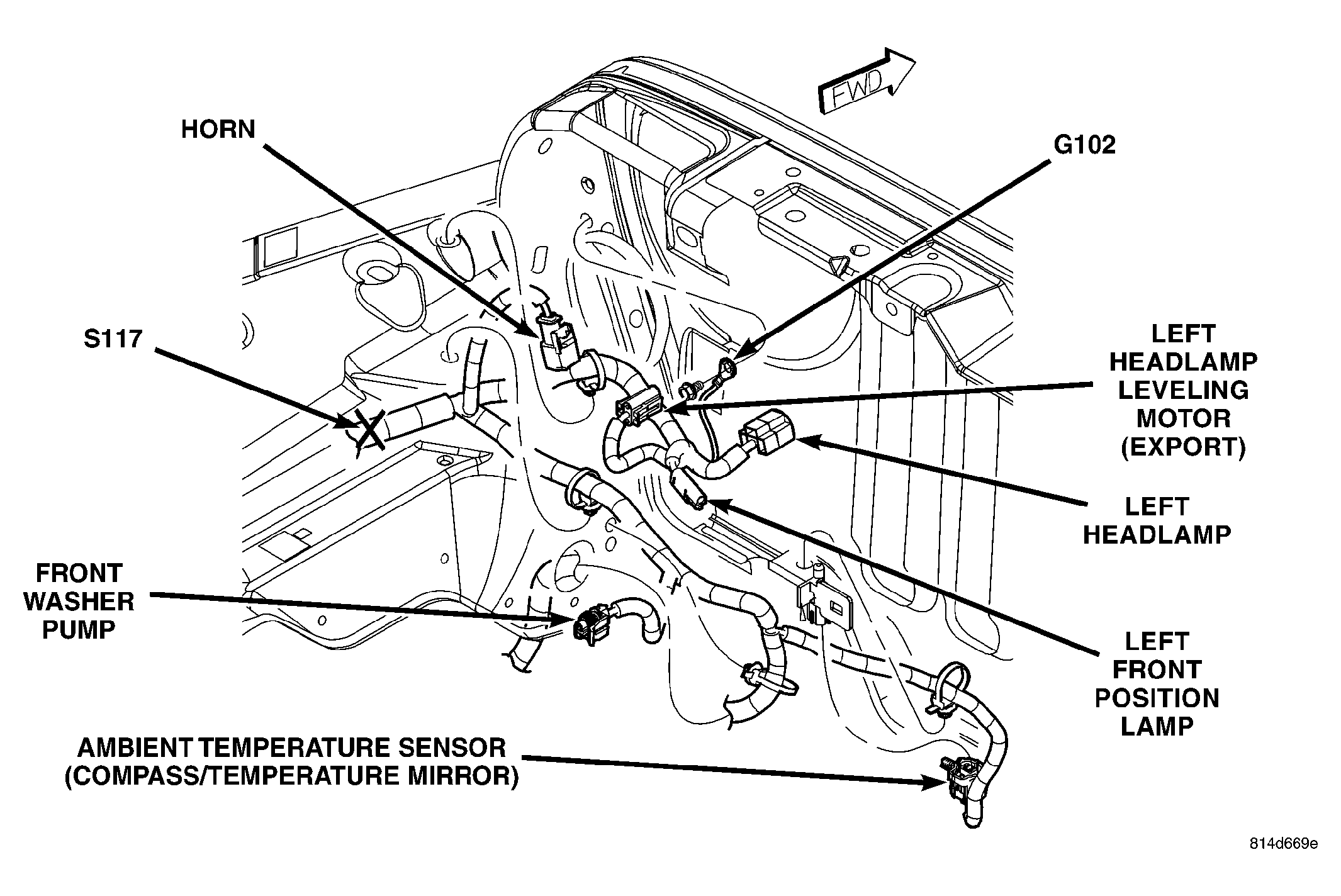

Horn BK Left Front Fender Side Shield Fig 1.
Horn Switch Rear of Steering Wheel Pad Fig 31.
Idle Air Control Motor BK Side of Throttle Body Fig 4, Fig 5.
Ignition Coil Pack (2.4L) GY Right Side of Engine Fig 4, Fig 17.
Ignition Coil Pack (4.0L) BK Right Rear of Engine Fig 7.
Ignition Switch - On Steering Column Fig 30.

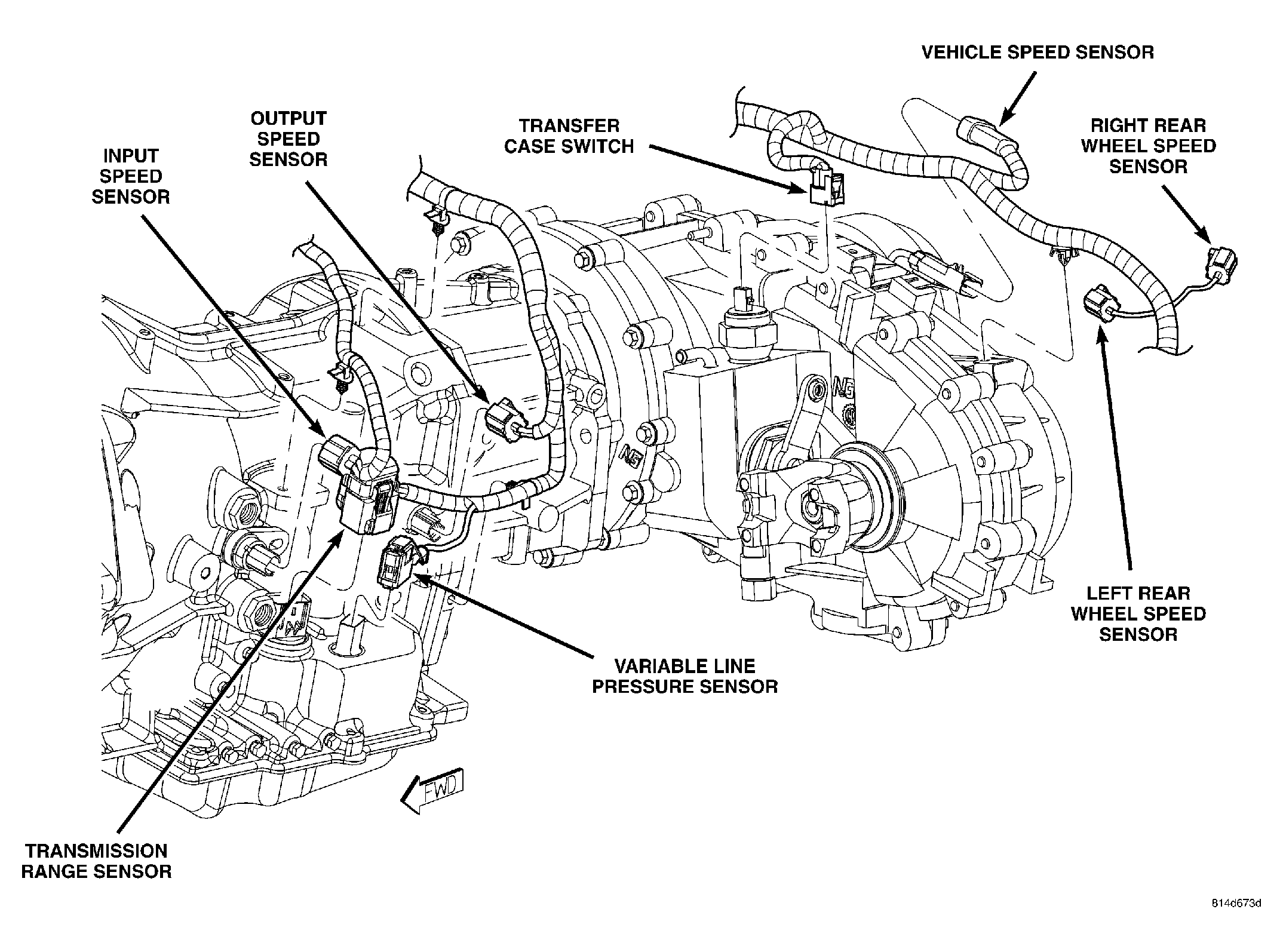

Input Speed Sensor BK Left Center of Trans Fig 16, Fig 36.

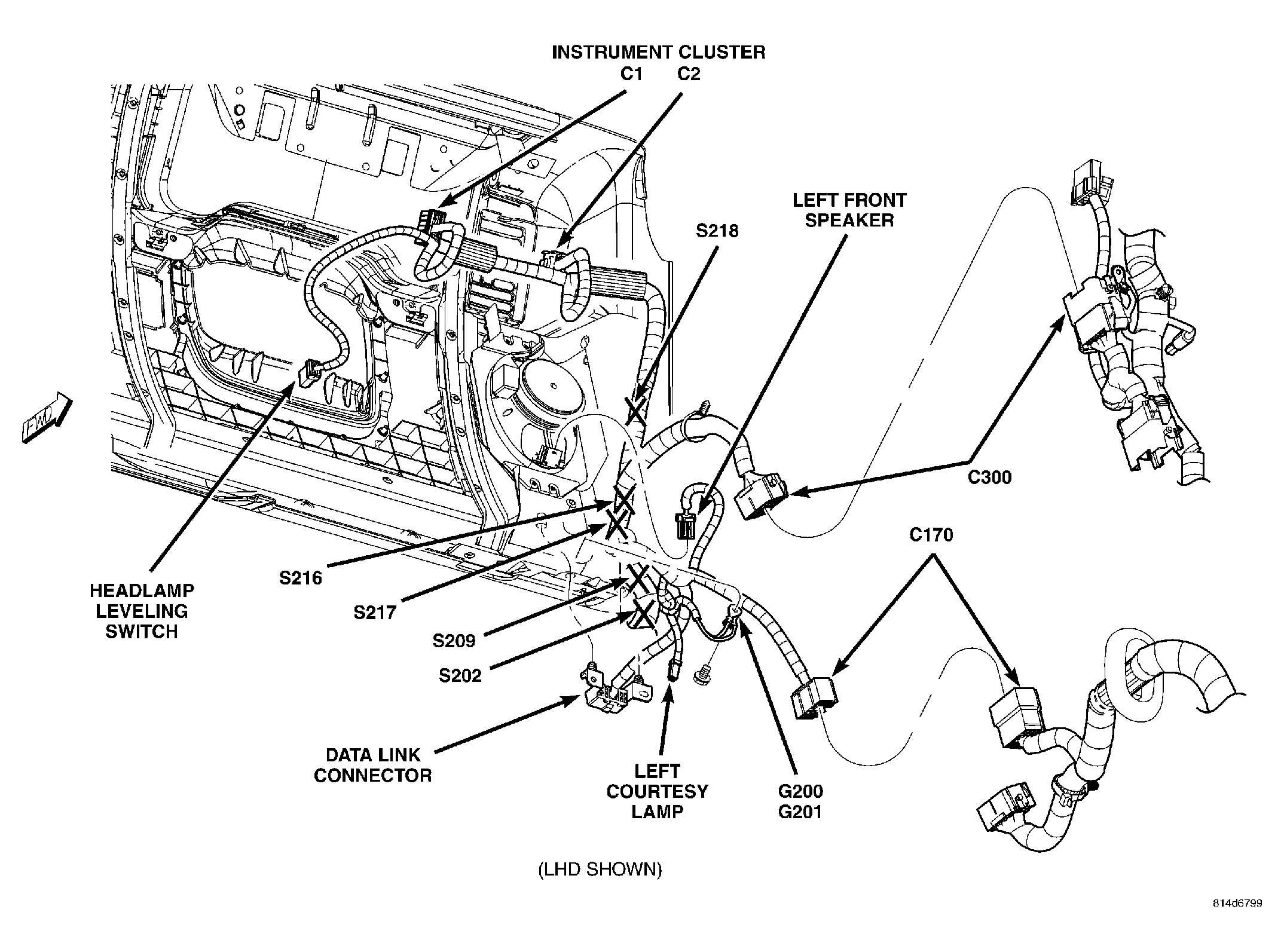

Instrument Cluster - C1 - Rear of Cluster Fig 24, Fig 27.
Instrument Cluster - C2 - Rear of Cluster Fig 24, Fig 27.
Intake Air Temperature Sensor GY Rear of Intake Manifold Fig 5.
Left Courtesy Lamp BK Left Side of Instrument Panel Fig 24, Fig 27.
Left Dome Lamp WT In Left Speaker Pod N/S
Left Fog Lamp (Except Export) BK At Lamp, See Right Fig 2.
Left Front Park/Turn Signal Lamp (Except Export) BK At Lamp, See Right Fig 2.
Left Front Position Lamp (Export) BK At Lamp Fig 1.
Left Front Speaker BK At Speaker Fig 24, Fig 27.
Left Front Turn Signal Lamp (Export) BK At Lamp, See Right Fig 2.
Left Front Wheel Speed Sensor BK Left Side of Engine Compartment Near Hydraulic Control Unit Fig 13, Fig 14.
Left Headlamp BK Rear of Lamp Fig 1.
Left Headlamp Leveling Motor (Export) BK Near Headlamp at Motor Fig 1.
Left License Lamp (Export) GY At Lamp Fig 41, Fig 42.
Left Rear Lamp Assembly BK At Lamp Fig 41, Fig 42.
Left Rear Speaker BK In Left Speaker/lamp Pod N/S
Left Rear Wheel Speed Sensor BK Near Vehicle Speed Sensor T/O Fig 16, Fig 40.
Left Side Marker Lamp GY At Lamp, See Right Fig 2.
Left Side Repeater Lamp (Export) GY At Lamp, See Right Fig 2.
Left Speed Control Switch Left Steering Wheel Fig 31.
Manifold Absolute Pressure Sensor BK Side of Throttle Body Fig 4, Fig 5.

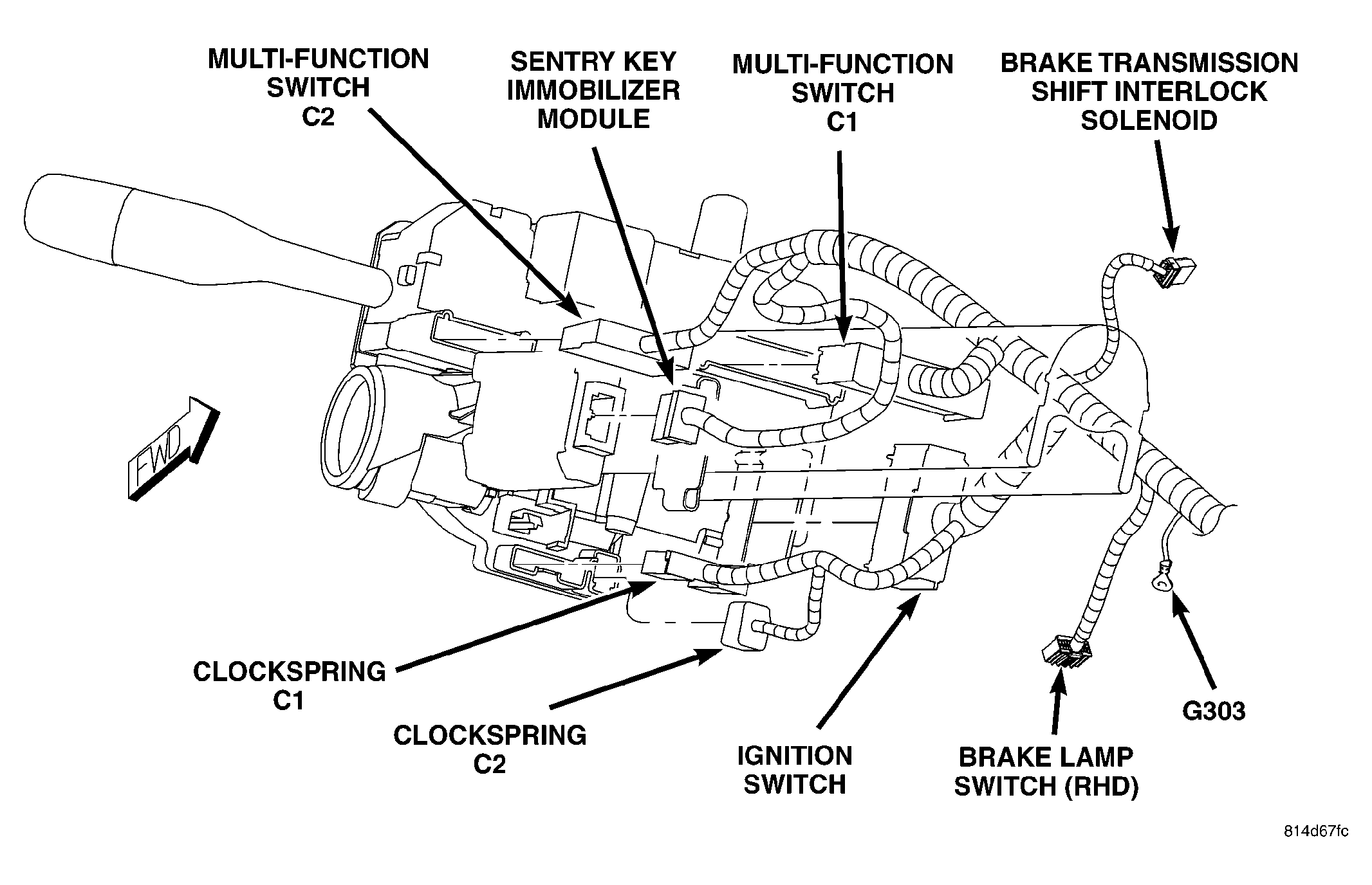

Multi-Function Switch C1 GY Steering Column Fig 30.
Multi-Function Switch C2 BK Steering Column Fig 30.

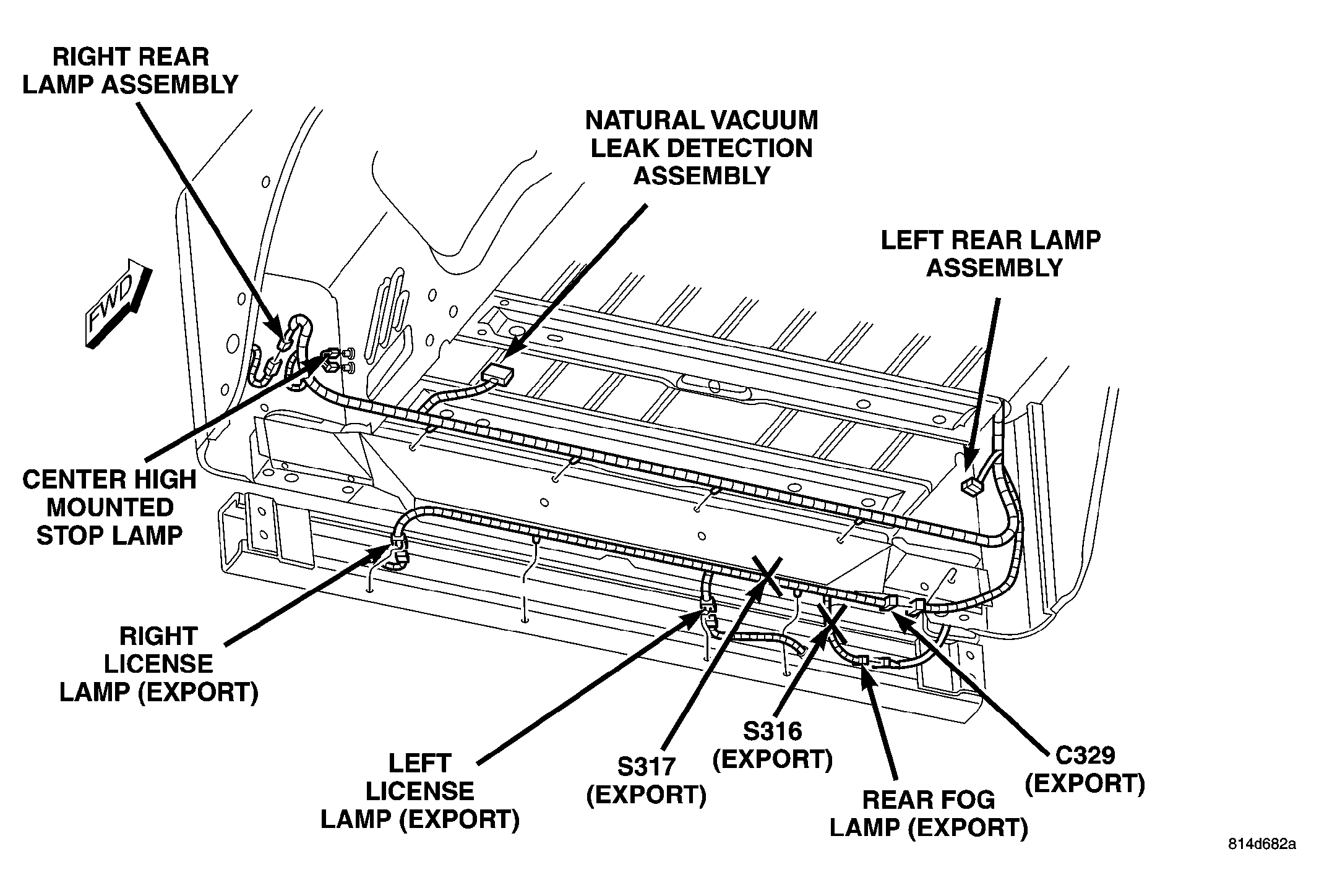

Natural Vacuum Leak Detection Assembly BK Under Rear Body Fig 41, Fig 42.
Output Speed Sensor BK Rear Left Side of Trans Fig 16, Fig 36.
Oxygen Sensor 1/1 Upstream - On Front Exhaust Pipe Fig 5, Fig 17.
Oxygen Sensor 1/2 Downstream BK Rear of Catalytic Converter Fig 5, Fig 36, Fig 37.
Oxygen Sensor 2/1 Upstream (4.0L California/European III) - Near Idle Air Control Motor T/O Fig 5.
Oxygen Sensor 2/2 Downstream (4.0L California/European III) GY T/O near Ignition Coil Pack T/O Fig 5, Fig 35.
Park Brake Switch Left of Seat Belt Switch Fig 20.
Passenger Airbag YL Rear of Airbag Fig 19, Fig 21.
Passenger Airbag On/Off Switch - Lower Center of Instrument Panel Fig 26.
Passenger Door Ajar Switch BK Near Top Hinge of Passenger Door Fig 19, Fig 21.
Power Distribution Center BK Engine Compartment Right or Left Fender Fig 13.
Power Distribution Center Eyelet N/A Engine Compartment Right or Left Enter Fig 11.
Power Outlet Center of Instrument Panel Fig 26, Fig 28.
Power Steering Pressure Switch (2.4L) BK Near Power Steering Pump Fig 4.
Powertrain Control Module - C1 (LHD) BK/BK Right Rear of Engine Compartment Fig 9, Fig 17.
Powertrain Control Module - C1 (RHD) BK/BK Left Rear of Engine Compartment Fig 9.
Powertrain Control Module - C2 (LHD) BK/OR Right Rear of Engine Compartment Fig 9, Fig 17.
Powertrain Control Module - C2 (RHD) BK/OR Left Rear of Engine Compartment Fig 9.
Powertrain Control Module - C3 (LHD) BK/NAT Right Rear of Engine Compartment Fig 10, Fig 17.
Powertrain Control Module - C3 (RHD) BK/NAT Left Rear of Engine Compartment Fig 12.
Powertrain Control Module - C4 (LHD) BK/GN Left Rear Engine Compartment Fig 17.
Powertrain Control Module - C4 (RHD) BK/GN Right Rear Engine Compartment Fig 9.

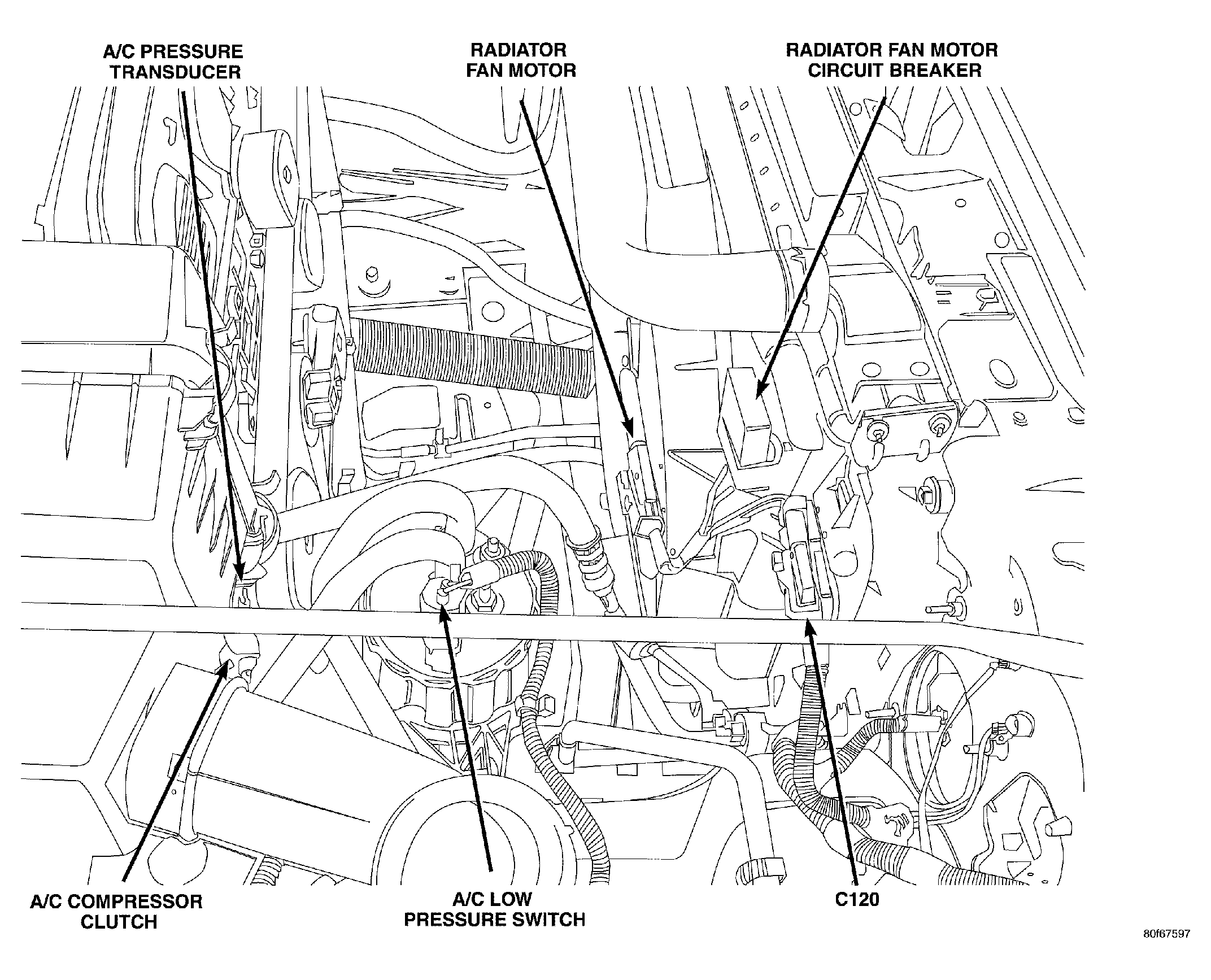

Radiator Fan Motor (2.4L) BK On Right Radiator Fan Shroud Fig 6.
Radiator Fan Motor Circuit Breaker (2.4L) BK On Right Radiator Fan Shroud Fig 6.
Radio GY Rear of Radio Fig 26, Fig 29.
Rear Fog Lamp (Export) BK At Lamp Fig 41, Fig 42.
Rear Locker Indicator Switch (Off Road) BK Top of Rear Differential Fig 34.
Rear Locker Pump (Off Road) LT-GY Top of Locker Pump Bracket Fig 32.
Rear Washer Pump (Hard Top) BK Under Washer Fluid Reservoir N/S

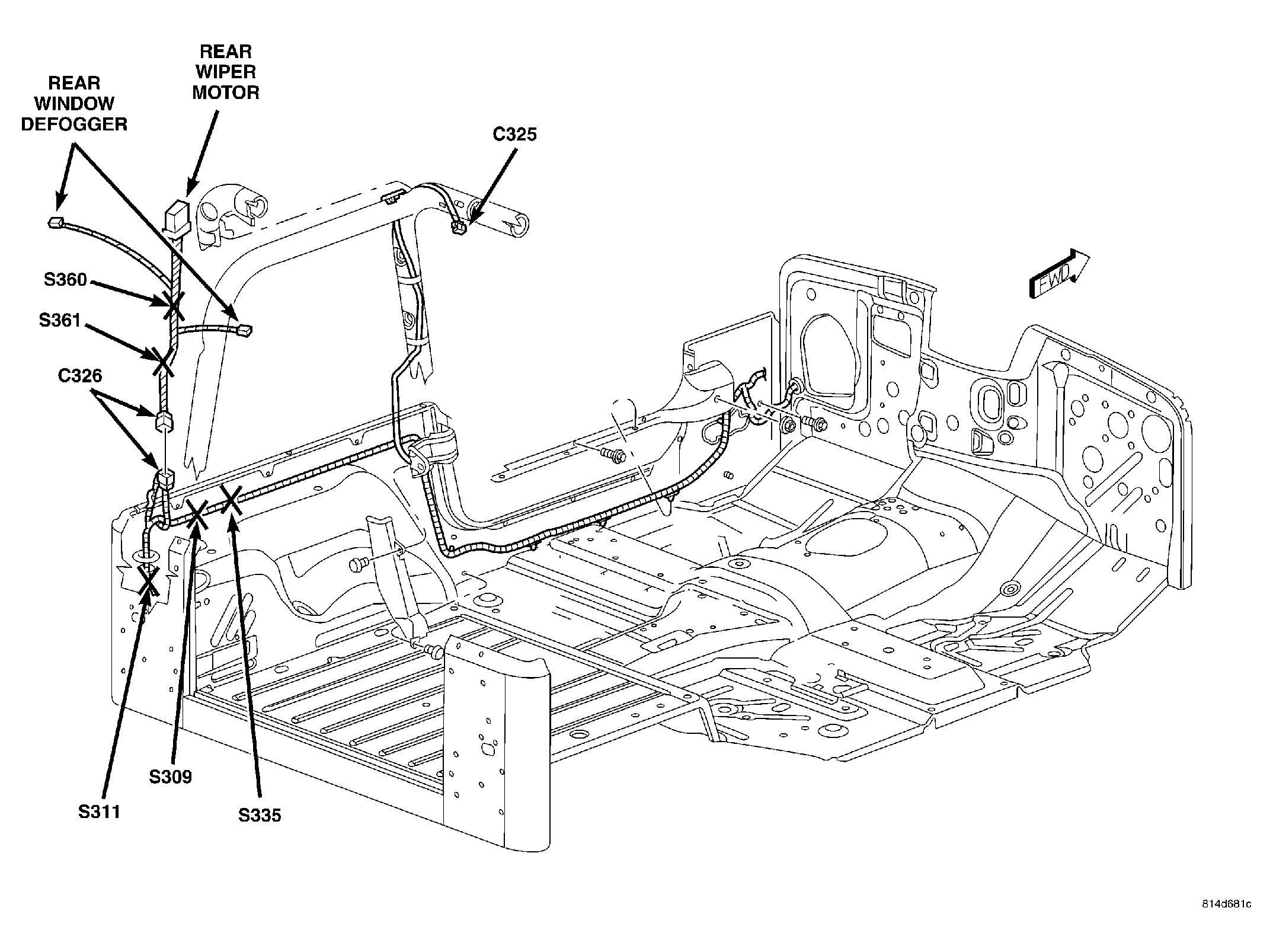

Rear Window Defogger At Rear Window Fig 38, Fig 39.
Rear Window Defogger Switch (Hard Top) GY Behind Rear Window Defogger Switch Fig 26, Fig 28.
Rear Wiper Motor (Hard Top) BK At Rear Wiper Motor Fig 38, Fig 39.
Rear Wiper/Washer Switch (Hard Top) WT Behind Rear Wiper/Washer Switch Fig 26, Fig 28.
Right Courtesy Lamp BK Right Side of Instrument Panel Fig 25, Fig 27.
Right Dome Lamp WT In Right Speaker Pod
Right Fog Lamp (Except Export) BK At Lamp Fig 2.
Right Front Park/Turn Signal Lamp (Except Export) BK At Lamp Fig 2.
Right Front Position Lamp (Export BK At Lamp Fig 2.
Right Front Speaker BK At Speaker Fig 25, Fig 27.
Right Front Turn Signal Lamp (Export) BK At Lamp Fig 2.
Right Front Wheel Speed Sensor BK Rear of Engine Fig 10, Fig 12.
Right Headlamp BK Rear of Lamp Fig 2.
Right Headlamp Leveling Motor (Export) BK Near Headlamp at Motor Fig 2.
Right License Lamp GY At Lamp Fig 41, Fig 42.
Right Rear Lamp Assembly BK At Lamp Fig 41, Fig 42.
Right Rear Speaker BK In Right Speaker/lamp Pod N/S
Right Rear Wheel Speed Sensor BK Near Vehicle Speed Sensor T/O Fig 16, Fig 40.
Right Side Marker Lamp (Except Export) GY At Lamp Fig 2.
Right Side Repeater Lamp GY At Lamp Fig 2.
Right Speed Control Switch BK Right Steering Wheel Fig 31.
Seat Belt Switch BK Near Park Brake Switch Fig 20.
Sentry Key Immobilizer Module BK At Immobilizer Fig 30.
Speed Control Servo BK Left Side Engine Compartment Fig 13, Fig 14.
Subwoofer LT-GY Floor Pan Fig 20.
Throttle Position Sensor WT Side of Throttle Body Fig 5, Fig 18.

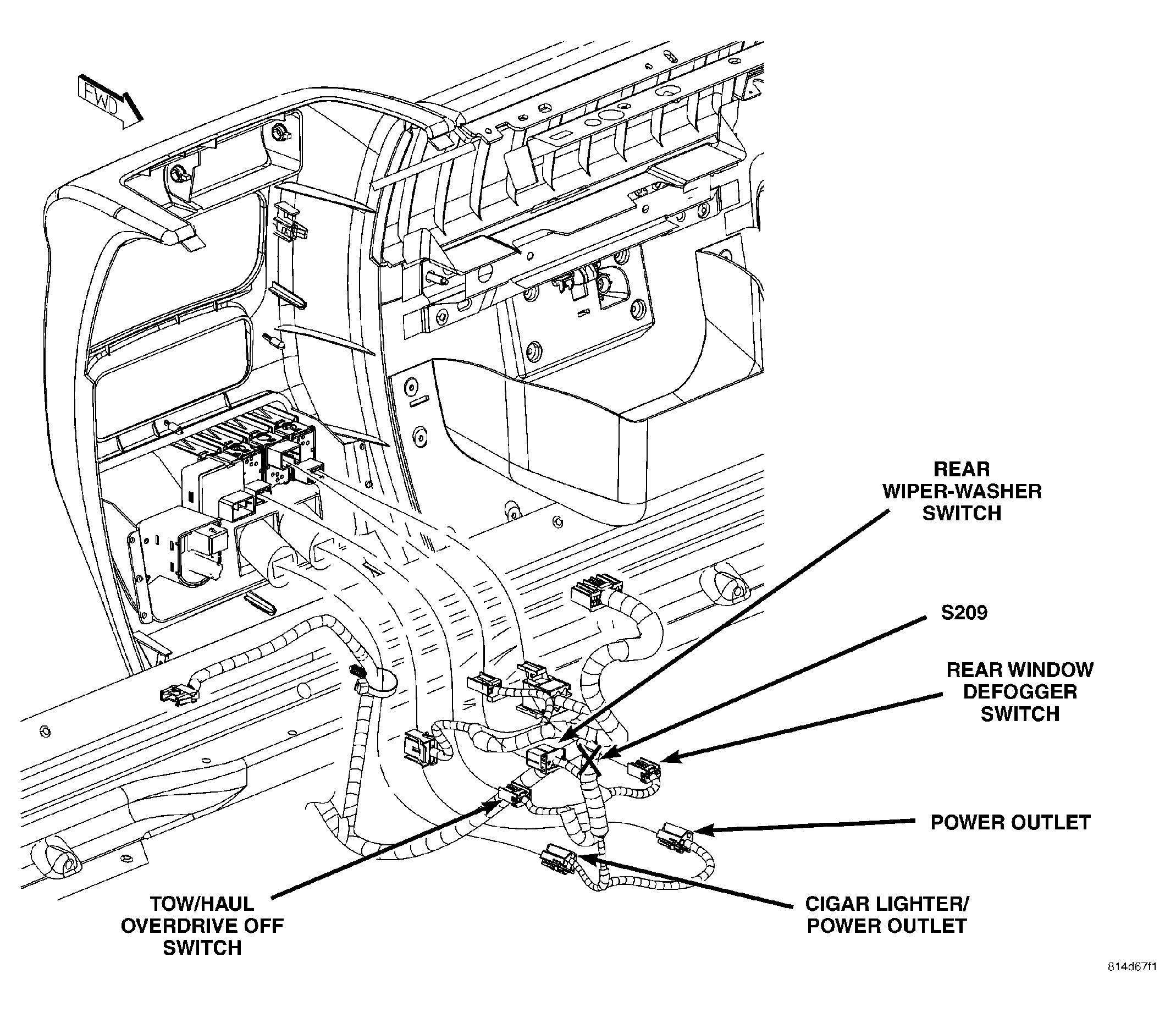

Tow/Haul Overdrive Off Switch Center of Instrument Panel Fig 26, Fig 28.
Transfer Case Switch BK Left Side of Transfer Case Fig 16, Fig 36, Fig 37.
Transmission Range Indicator Illumination (PRNDL) BK Between Seats Fig 20.
Transmission Range Sensor GN Left Center of Transmission Fig 16, Fig 36.
Transmission Solenoid/Pressure Switch Assembly NAT Right Center of Transmission Fig 7, Fig 36.
Underhood Lamp BK Under Hood Fig 10, Fig 12, Fig 18.
Variable Line Pressure Sensor Left Side of Transmission Fig 16, Fig 36.

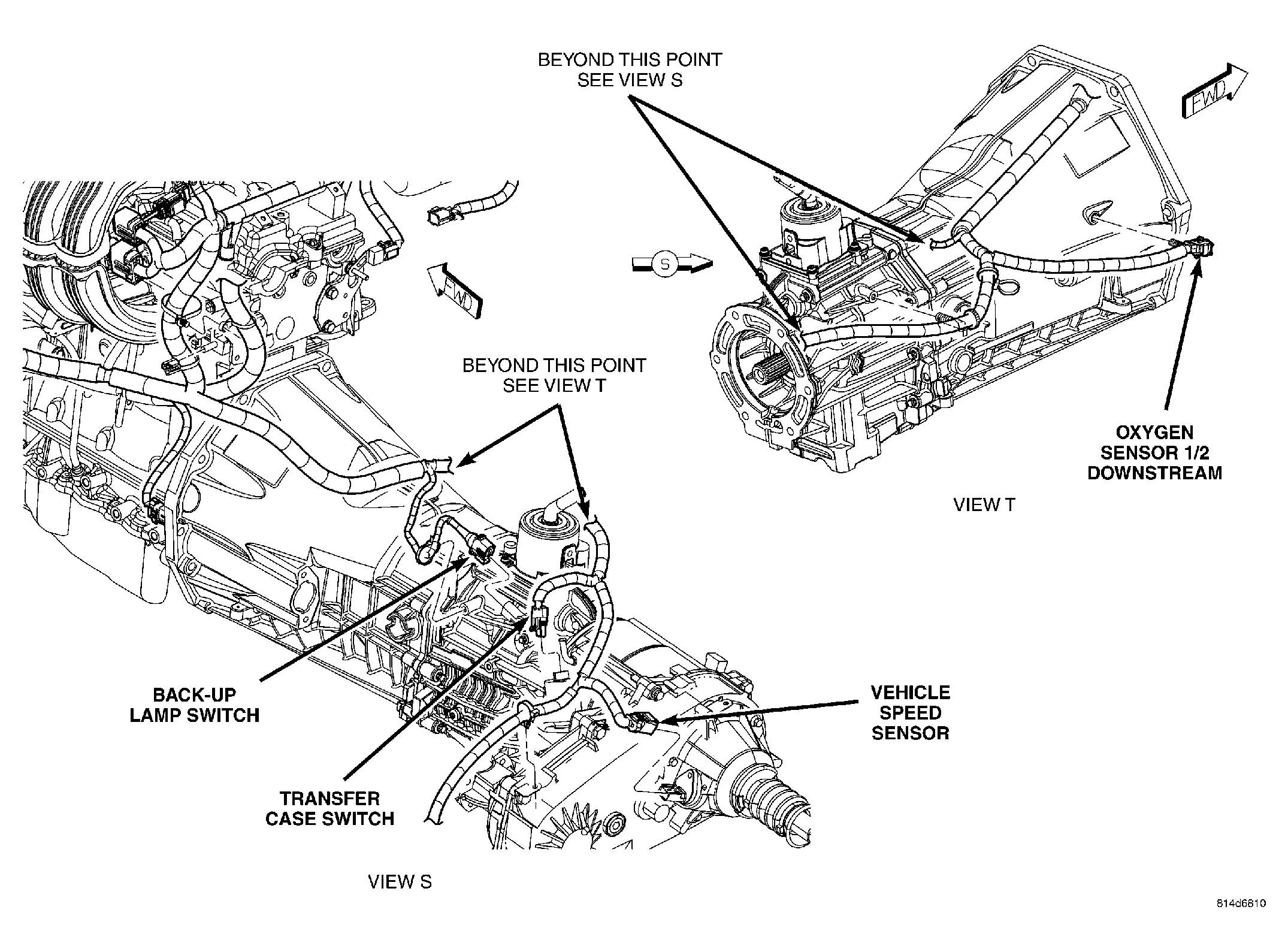

Vehicle Speed Sensor BK Left Rear of Transfer Case Fig 16, Fig 36, Fig 37.
GROUNDS

Connector Name/Number Location Fig.
G100 Rear Center of Engine Compartment Fig 10, Fig 12.
G101 Rear Center of Engine Compartment Fig 10, Fig 12.
G102 Left Radiator Closure Panel Fig 1.
G103 Right Radiator Closure Panel Fig 2.
G104 Near Generator N/S

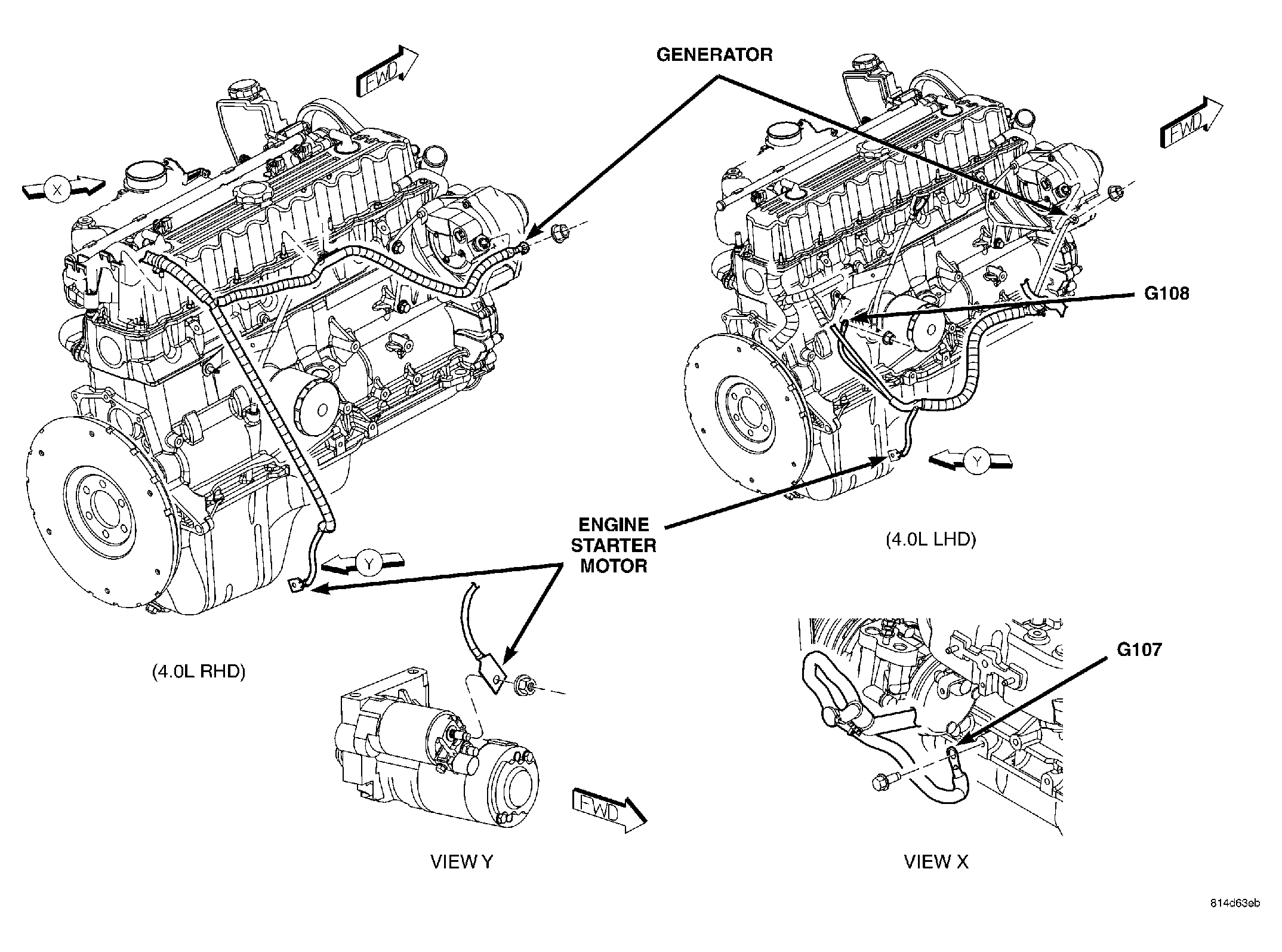

G105 Right Rear of Engine Block (4.0L) Near Left Engine Mount (2.4L) Fig 4, Fig 7.

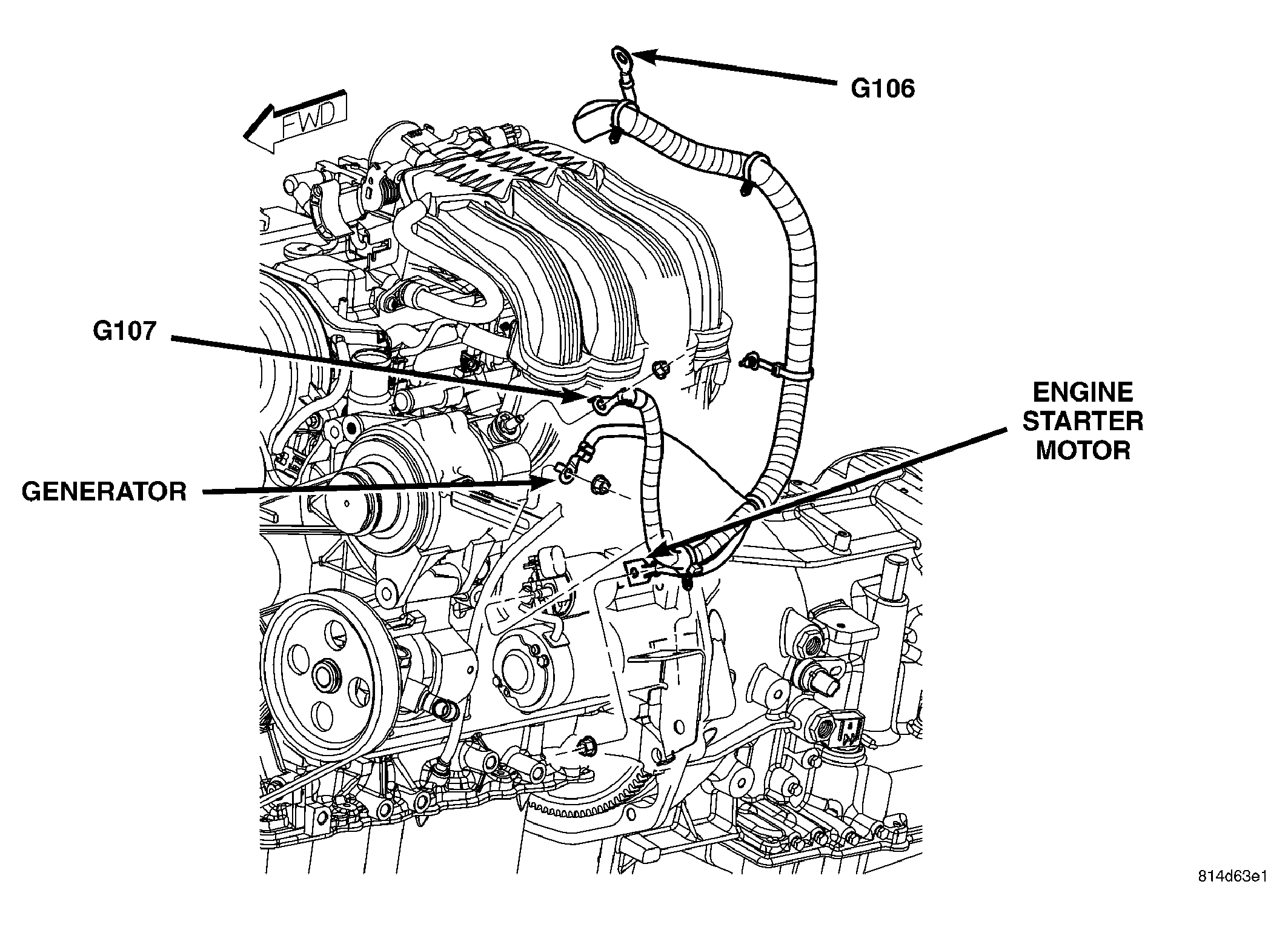

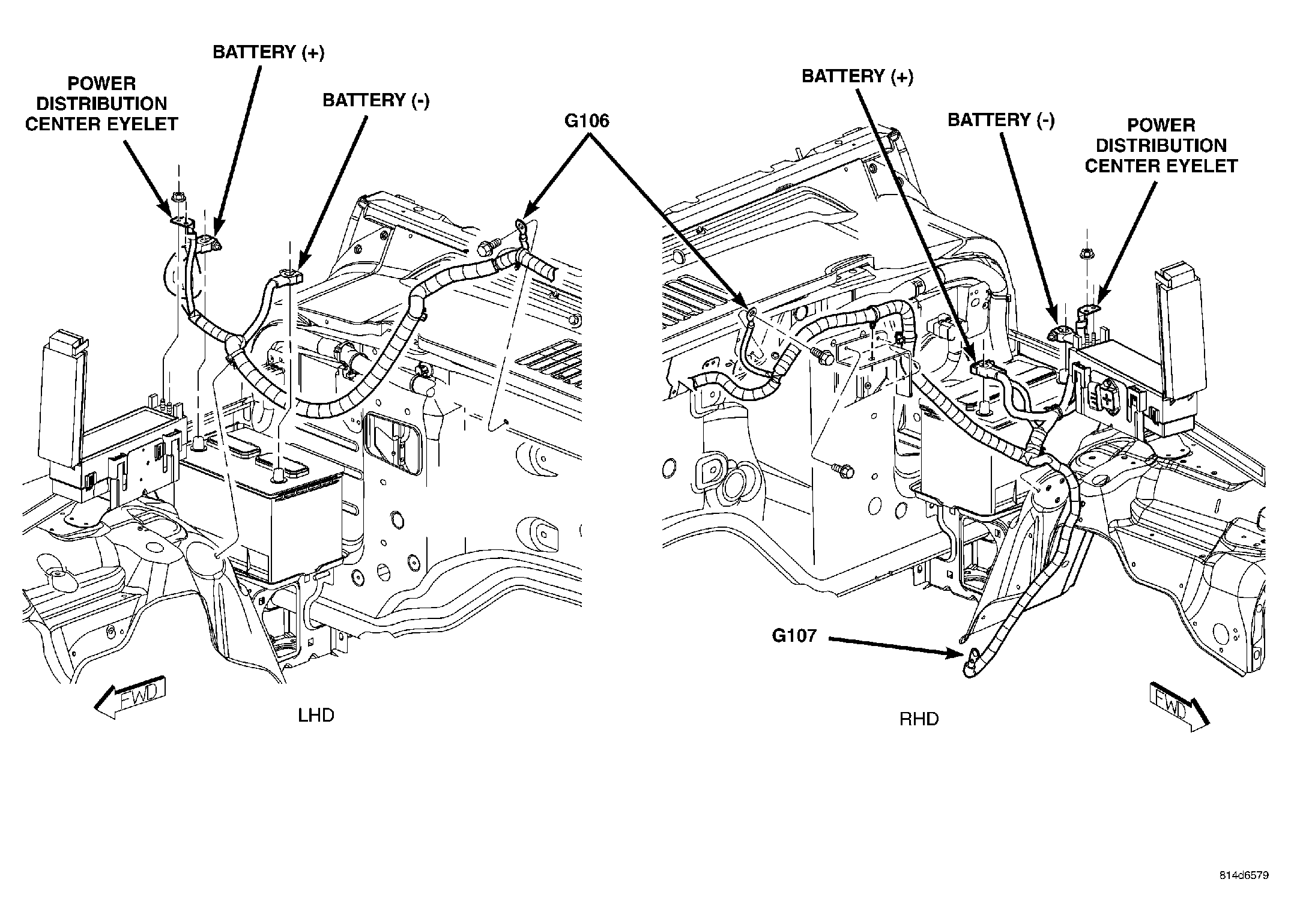

G106 Rear of Engine Compartment Fig 3, Fig 11.
G107 Left Front of Engine Block Fig 3, Fig 8, Fig 11.
G108 Right Rear Engine Block Fig 8.
G110 (2.4L) Near Left Engine Mount Fig 4.
G111 Near Right Rear of Engine N/S
G190 Near Right Headlamp Fig 2.
G191 Near Right Headlamp N/S
G200 (LHD) Left Rear of Instrument Panel Fig 24.
G200 (RHD) Right Rear of Instrument Panel Fig 27.
G201 (LHD) Left Rear of Instrument Panel Fig 24.
G201 (RHD) Right Rear of Instrument Panel Fig 27.
G202 (LHD) Right Rear of Instrument Panel Fig 25.
G202 (RHD) Left Rear of Instrument Panel Fig 27.
G203 (LHD) Right Rear of Instrument Panel Fig 25.
G203 (RHD) Left Rear of Instrument Panel Fig 27.
G204 Center of Instrument Panel Fig 25, Fig 27.
G300 (LHD) Left Kick Panel Fig 22.
G300 (RHD) Right Kick Panel Fig 23.
G301 (LHD) At Base of Center Stack Fig 20.
G301 (RHD) Left Kick Panel Fig 21.
G302 (LHD) Left Kick Panel Fig 22.
G302 (RHD) Right Kick Panel Fig 23.
G303 (LHD) Near Steering Column Mounting Bracket Fig 30.
SPLICES

Splice Number Location Fig.
S101 Near T/O for Power Distribution Center Fig 10, Fig 12.
S102 Near T/O for G100 or Daytime Running Lamp Module Fig 10.
S103 Near T/O for G101 Fig 10, Fig 12.
S105 Left Cowl Panel Fig 22.
S106 Near T/O for G100 Fig 10.
S108 Near T/O for Powertrain Control Module Fig 10, Fig 12.
S111 Near T/O for Battery Temperature Sensor or Power Distribution Center Fig 10.
S117 Near T/O for Horn Fig 1.
S122 Near Grommet for Left Front Turn Signal Lamp, See Right Fig 2.
S123 (4.0L) Near T/O for G105 N/S
S123 (2.4L) Near T/O for Ignition Coil Pack N/S
S125 (Export) Near Grommet for Right Front Turn Signal Lamp Fig 2.
S126 Near T/O for C104 Fig 7.
S127 Rear Engine Compartment Fig 9, Fig 17.
S128 (4.0L) Between Fuel Injector NO. 2 and Fuel Injector NO. 3 Fig 5.
S128 (2.4L) Near T/O for C103 on Engine Harness N/S
S129 Rear of Engine Fig 4, Fig 7, Fig 35.
S130 (4.0L) Left Rear of Engine Fig 5.
S130 (2.4L) Near T/O for C103 on Engine Harness N/S
S131 Left Rear Engine Fig 7.
S132 (4.0L) Top of Transmission Fig 7, Fig 35.
S132 (2.4L) Near T/O for Engine Starter Solenoid Fig 4.
S133 (4.0L) Trans Harness Fig 7.
S133 (2.4L) Near T/O for Input Speed Sensor Fig 4.
S134 (4.0L) Top Front of Engine Fig 5.
S134 (2.4L) Between Engine Starter Solenoid and C182 N/S
S135 (2.4L) Rear of Engine Fig 4.
S135 (4.0L) In T/O for PCM Fig 9.
S136 In Battery harness near PDC N/S
S137 Near T/O for Throttle Position Sensor N/S
S138 Left Engine Compartment Fig 13, Fig 14.
S140 Near T/O for C104 N/S
S141 Near T/O for Left Front Turn Signal Lamp, See Right Fig 2.
S142 Near T/O for Right Front Turn Signal Lamp Fig 2.
S143 Rear of Engine Compartment Fig 10, Fig 12.
S144 Near T/O for Right Front Park/Turn Signal Lamp N/S
S147 Between T/O's for Underhood Lamp and C103, C104 Fig 10, Fig 12.
S150 Right Headlamp T/O Fig 2.
S151 Left Rear Engine Compartment Fig 14.
S151 (RHD) Left Side Engine Compartment Fig 13.
S152 Left Rear Engine Compartment Fig 14.
S152 (RHD) Right Rear Engine Compartment Fig 12.
S153 Rear Engine Compartment Fig 7, Fig 17.
S155 Left Rear Engine Compartment Fig 10, Fig 12.
S156 Near T/O for ABS Pump Motor Fig 10.
S158 (2.4L) Near T/O For Power Steering Pressure Switch N/S
S159 (2.4L) In T/O for PCM Fig 4, Fig 9.
S160 (2.4L) Left Rear Engine Compartment Fig 4.
S160 (4.0L) Front of Transmission Fig 5, Fig 7.
S161 Rear of Engine Compartment Fig 9, Fig 17.
S162 (2.4L) Near T/O for Oxygen Sensor 1/1 Upstream N/S
S164 Near T/O For Rear Locker Indicator Switch Inline C116 Fig 32.
S170 Rear of Engine Compartment Fig 10, Fig 12.
S172 Between G100 and C103 Fig 10, Fig 12.
S173 Near G100 Fig 10, Fig 12.
S176 In Fuel Injector Harness N/S
S177 Rear of Engine Compartment Fig 7, Fig 17.
S178 Near T/O for C103 on Engine Harness N/S
S180 (LHD) In PDC Fig 10.
S180 (RHD) Left Rear Engine Compartment Fig 12.
S184 Left Side of Engine Fig 5.
S185 Rear of Engine Fig 7.
S202 (LHD) Center of Instrument Panel Fig 24, Fig 26.
S202 (RHD) Center Rear of Instrument Panel Fig 26, Fig 27.
S204 Center Rear of Instrument Panel Fig 26, Fig 27.
S206 Center Rear of Instrument Panel Fig 26, Fig 27.
S207 Near Cigar Lighter T/O Fig 26, Fig 29.
S208 Near Blower Motor N/S
S209 Near T/O for C202, C203, and C204 Fig 24, Fig 26, Fig 27, Fig 28.
S210 Near T/O for A/C Heater Control C3 Fig 26, Fig 29.
S211 Near T/O for C202 N/S
S212 Near T/O to Right Courtesy Lamp N/S
S213 Center Rear of Instrument Panel N/S
S214 Center Rear of Instrument Panel N/S
S215 Center Rear of Instrument Panel Fig 25, Fig 27.
S216 Left Side of Instrument Panel Fig 24.
S217 Left Side of Instrument Panel Fig 24.
S218 Driver Side Instrument Panel Fig 24, Fig 27.
S302(LHD) In T/O to Steering Column Fig 19.
S302(RHD) Between S315 and S331, near T/O to ACM Fig 21.
S304 (LHD) Center Rear of Dash Panel, Near Front Wiper Motor T/O Fig 19.
S304 (RHD) Near T/O for C202 and C107 Fig 21, Fig 23.
S309 Front of Left Door Opening Fig 38, Fig 39.
S310 Left Rear Quarter Panel, Near Body Grommet Fig 21, Fig 38.
S311 Near Left Rear Lamp Assembly Connector Fig 38, Fig 39, Fig 42.
S315 Above Steering Column Fig 19, Fig 21.
S316 In T/O for Rear Fog Lamp Fig 41,Fig 42.
S317 Near T/O for Left License Lamp Fig 41, Fig 42.
S320 (LHD) Near T/O for C107 Fig 22. Fig 38.
S320 (RHD) Near T/O for Fuse Block Fig 21.
S331 (LHD) Near T/O to Steering Column Fig 22, Fig 38.
S331 (RHD) Near T/O for Fuse Block Fig 21.
S335 (Except-Export) Near Left Rear Lamp Assembly Connector Fig 38, Fig 39.
S350 Near Fuse Block Fig 38.
S351 Near T/O to Sport Bar Fig 21, Fig 38.
S352 Forward of S351 Fig 21, Fig 38.
S353 Near T/O to Body Harness Fig 19, Fig 42.
S354 At Top of Right Kick Panel Fig 19, Fig 21, Fig 23.
S355 (LHD) Near T/O to Steering Column Fig 19.
S355 (RHD) Near T/O to Steering Column Fig 23.
S356 10"(254 mm) Forward from T/O to Rear Washer Fig 21, Fig 38.
S357 20"(508 mm) Forward from T/O to Rear Washer Fig 21, Fig 38.
S358 30"(762 mm) Forward from T/O to Rear Washer Fig 21, Fig 38.
S359 Near Fuse Block Fig 21, Fig 38.
S360 Near T/O for Rear Window Defogger Feed Fig 38, Fig 39.
S361 Near T/O for Rear Window Defogger Feed Fig 38, Fig 39.
Fig 1: LEFT HEADLAMP
GC0030961Courtesy of DAIMLERCHRYSLER CORP.

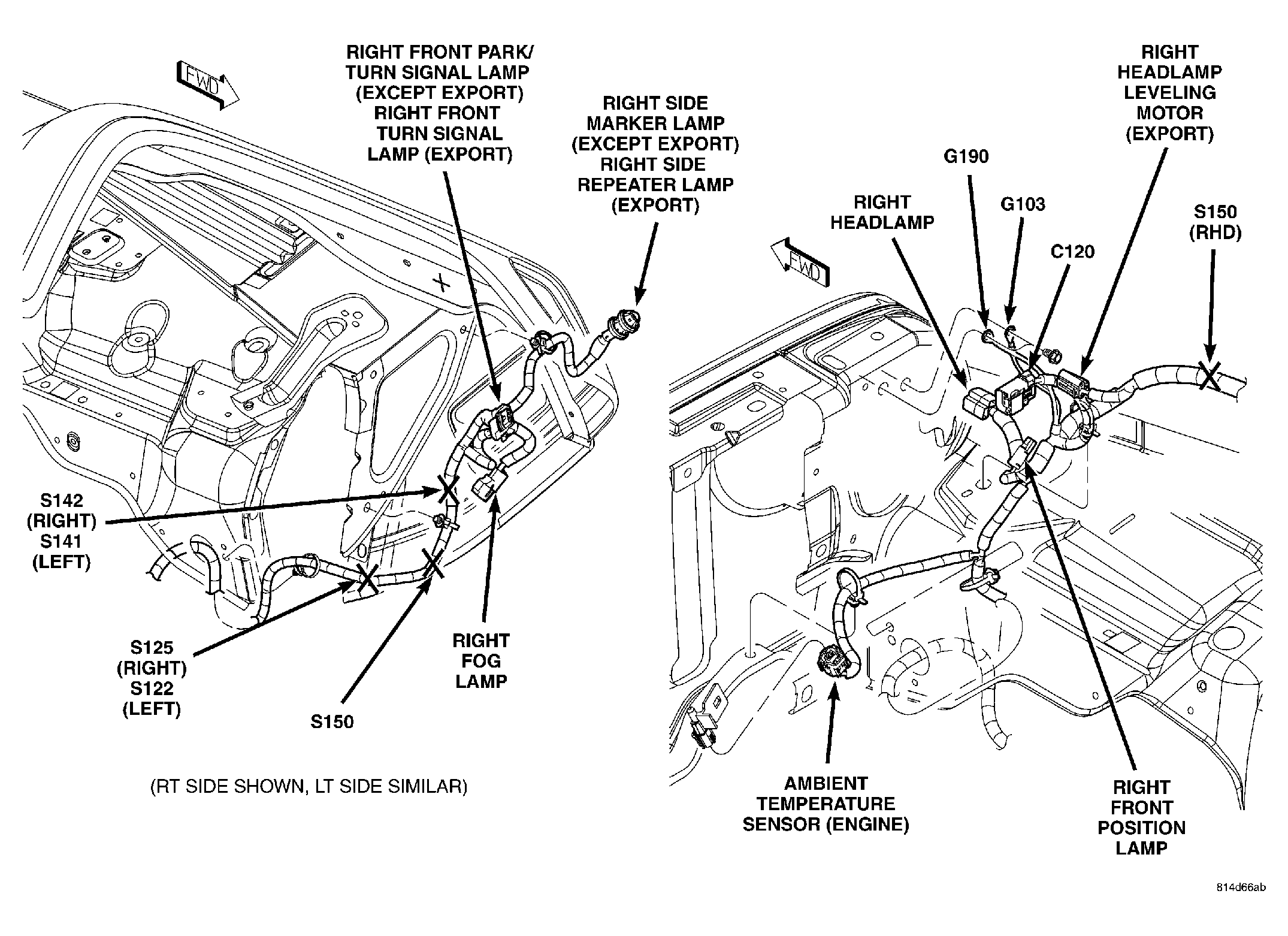

Fig 2: RIGHT HEADLAMP
GC0030962Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: 2.4L ENGINE LEFT FRONT
GC0030963Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: 2.4 L ENGINE LEFT REAR
GC0030964Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: 4.0 L ENGINE LEFT SIDE
GC0030965Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: 2.4 L A/C RIGHT SIDE
GC0030966Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: 4.0 L ENGINE RIGHT SIDE
GC0030967Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: 4.0 L ENGINE STARTER & GENERATOR
GC0030968Courtesy of DAIMLERCHRYSLER CORP.

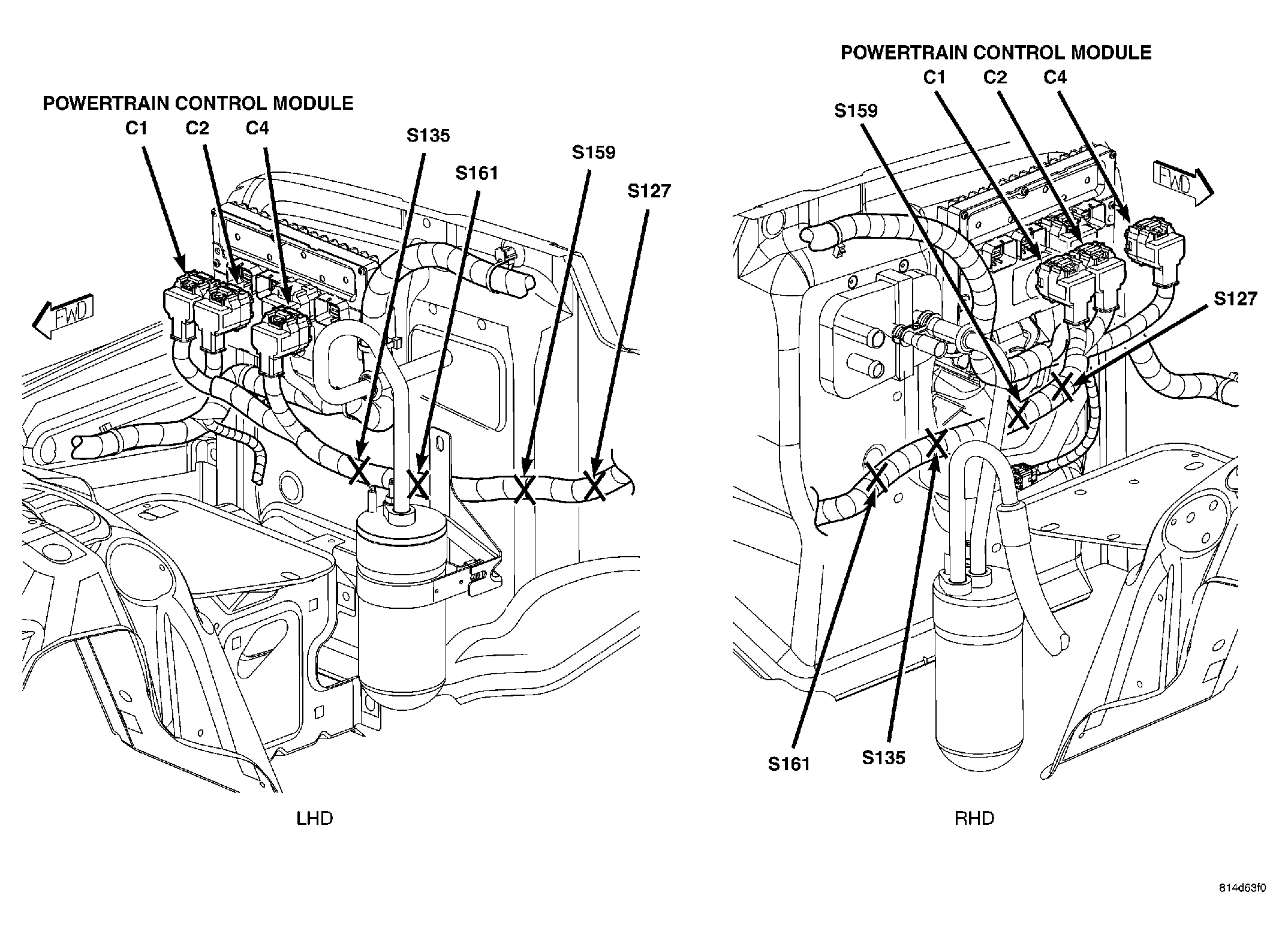

Fig 9: ENGINE COMPARTMENT REAR
GC0030969Courtesy of DAIMLERCHRYSLER CORP.

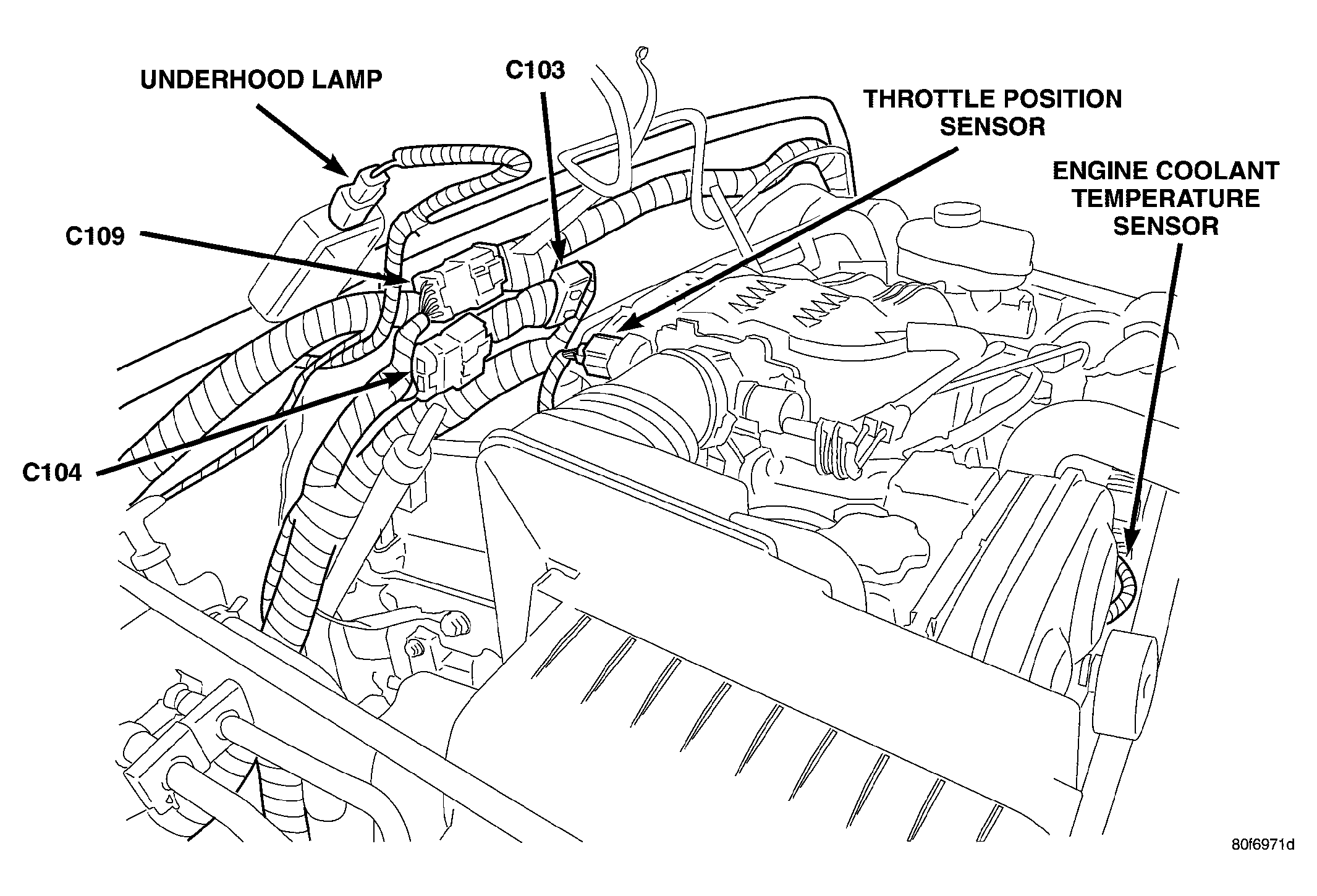

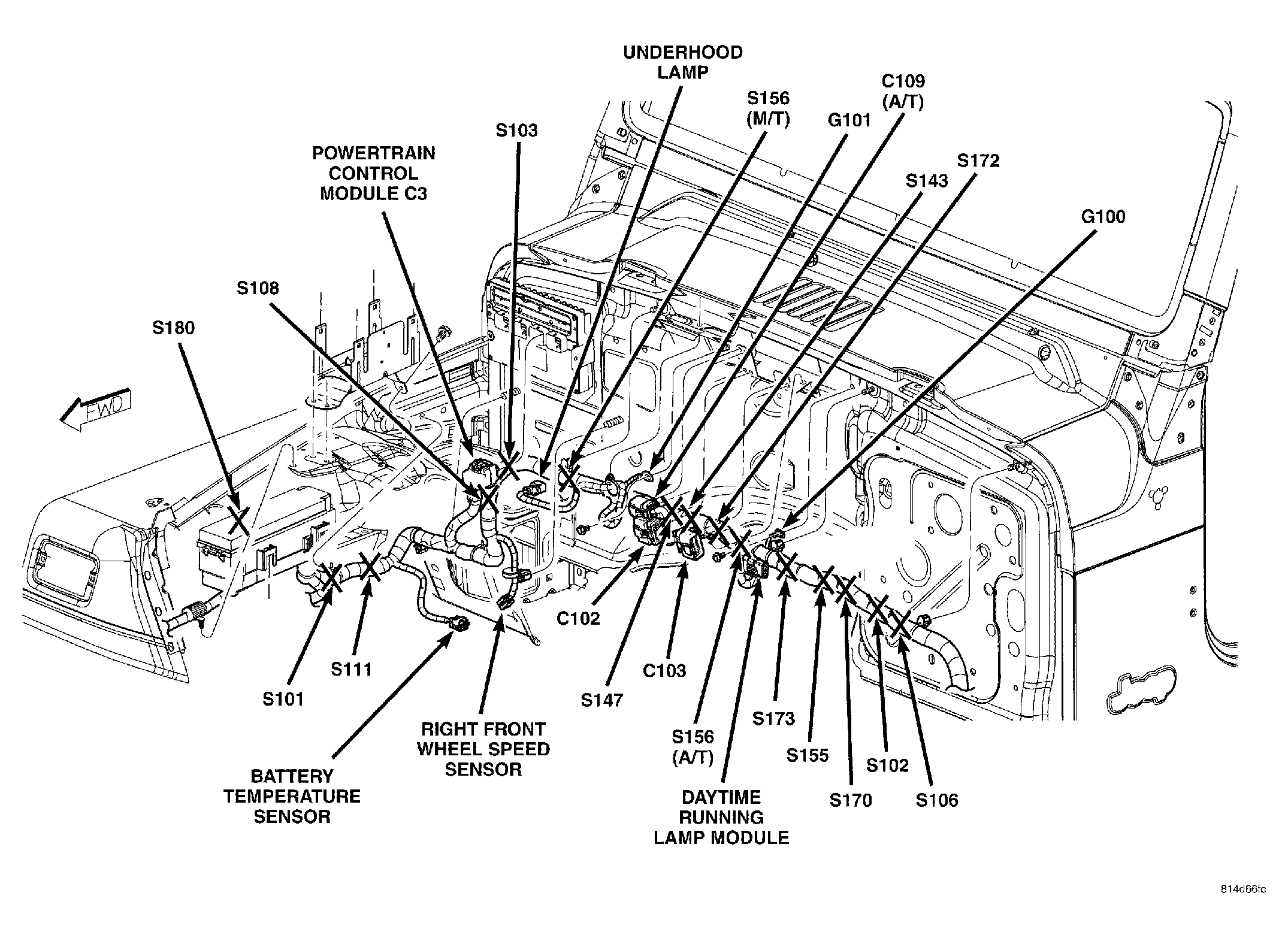

Fig 10: ENGINE COMPARTMENT REAR (LHD)
GC0030970Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: ENGINE COMPARTMENT REAR BATT
GC0030971Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: ENGINE COMPARTMENT REAR (RHD)
GC0030972Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: ENGINE COMPARTMENT LEFT SIDE (RHD)
GC0030973Courtesy of DAIMLERCHRYSLER CORP.

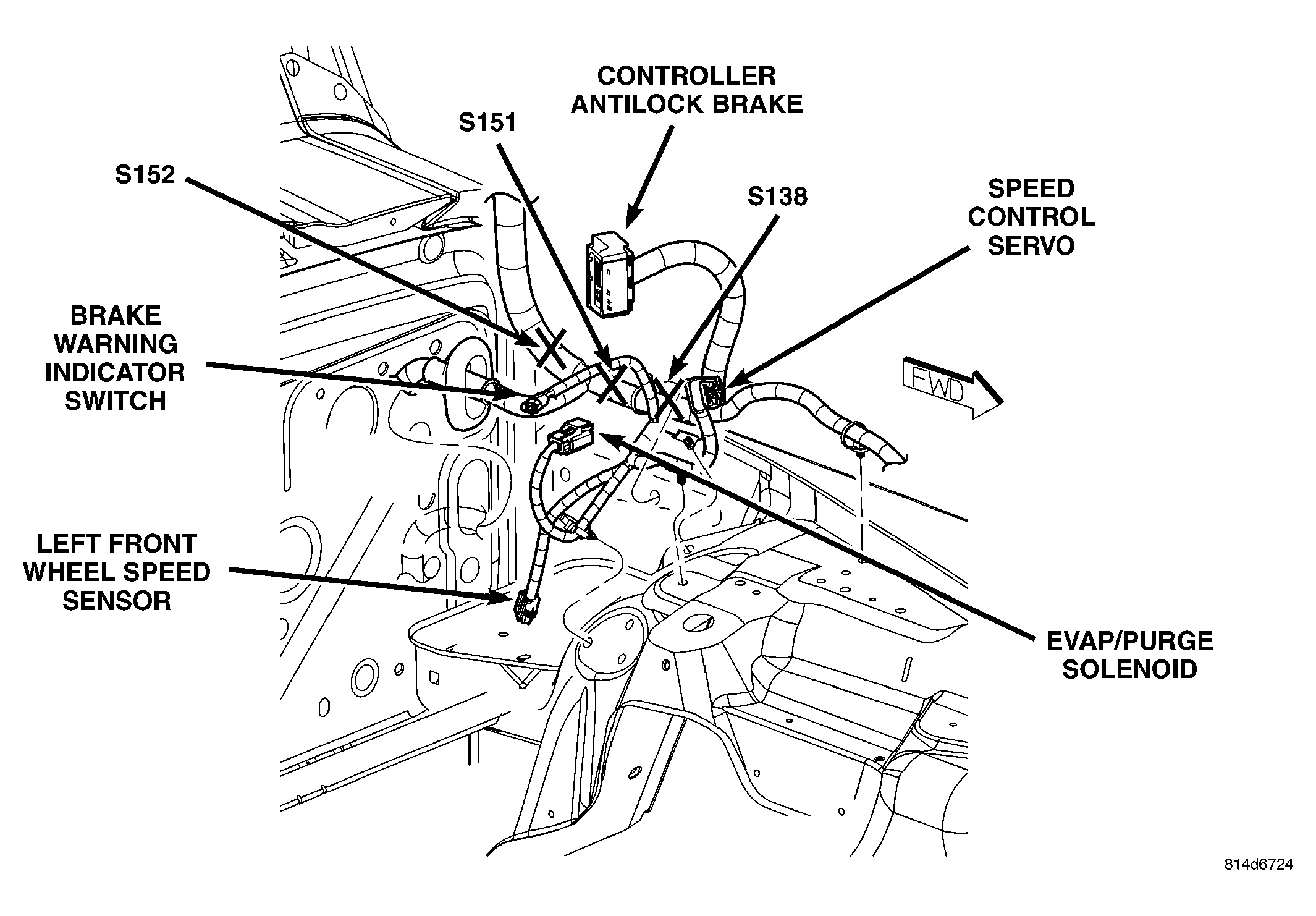

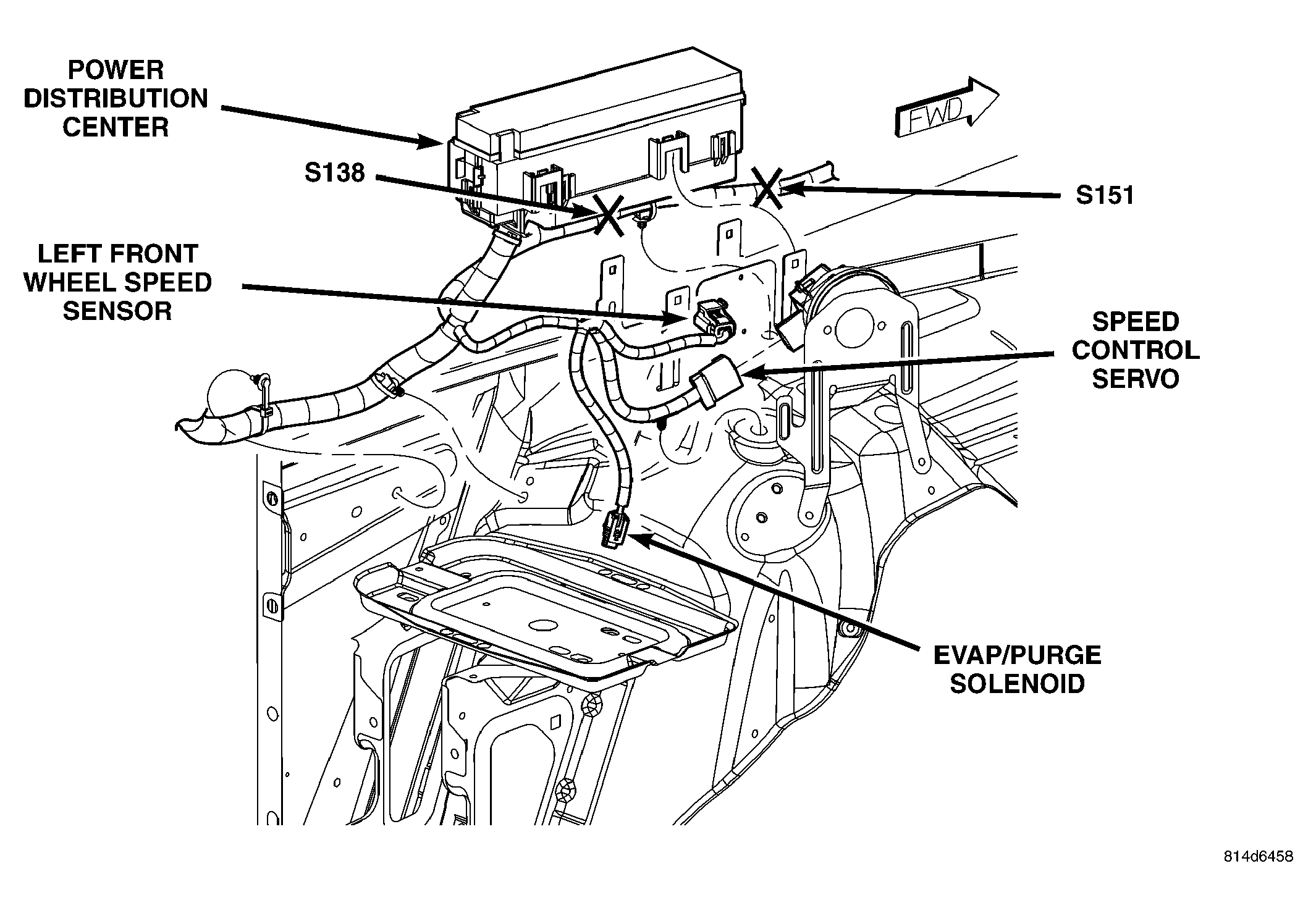

Fig 14: LEFT REAR ENGINE COMPARTMENT (LHD)
GC0030974Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: FRONT WIPER MOTOR
GC0030975Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: 4.0 L ENGINE AND TRANS LEFT
GC0030976Courtesy of DAIMLERCHRYSLER CORP.

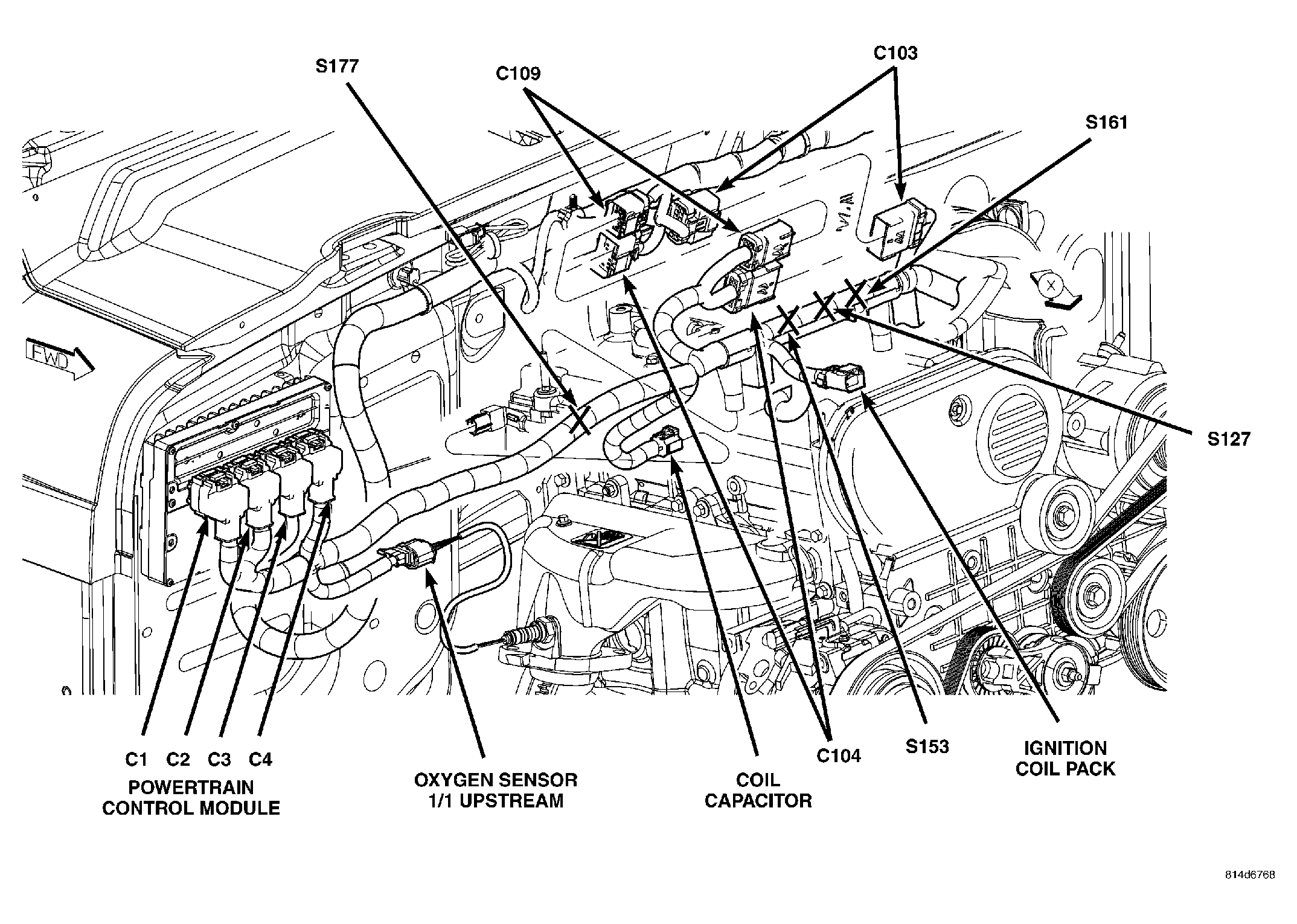

Fig 17: 2.4 L RIGHT REAR ENGINE COMPARTMENT
GC0030977Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: 2.4 L REAR ENGINE
GC0030978Courtesy of DAIMLERCHRYSLER CORP.

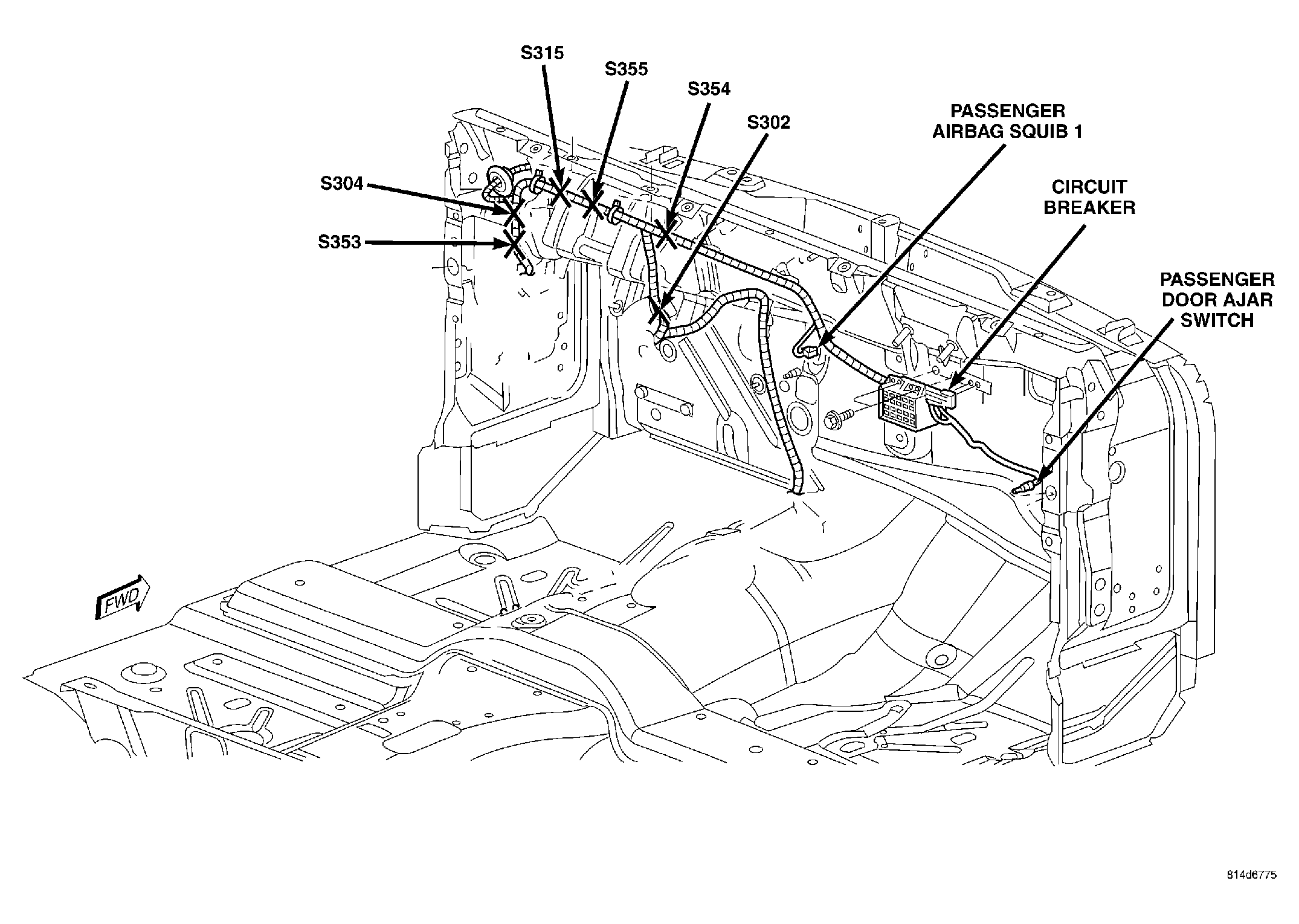

Fig 19: DASH PANEL (LHD)
GC0030979Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: BODY HARNESS
GC0030980Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: DASH PANEL (RHD)
GC0030981Courtesy of DAIMLERCHRYSLER CORP.

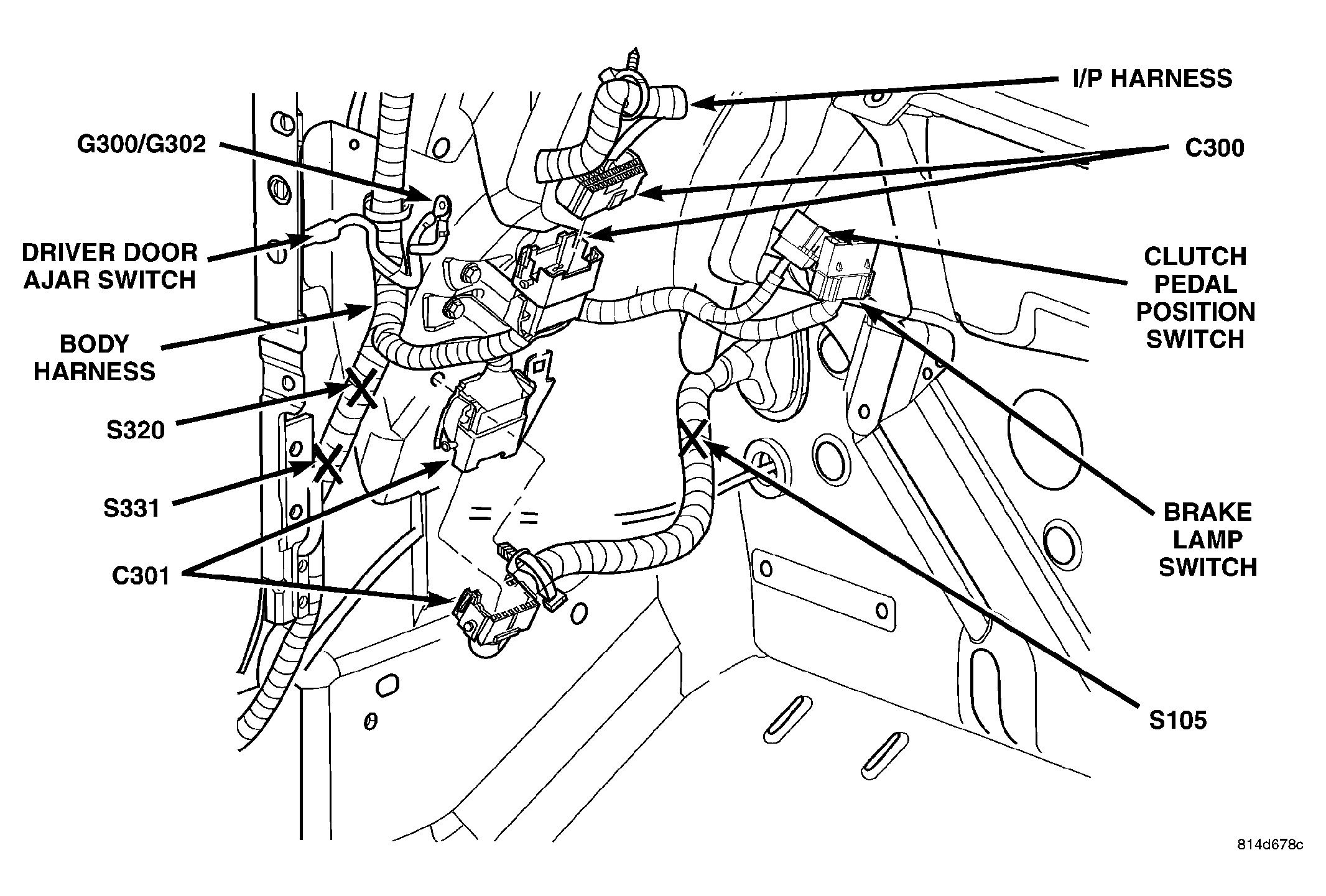

Fig 22: LEFT COWL PANEL (LHD)
GC0030982Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: RIGHT COWL PANEL (RHD)
GC0030983Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: LEFT SIDE INSTRUMENT PANEL (LHD)
GC0030984Courtesy of DAIMLERCHRYSLER CORP.

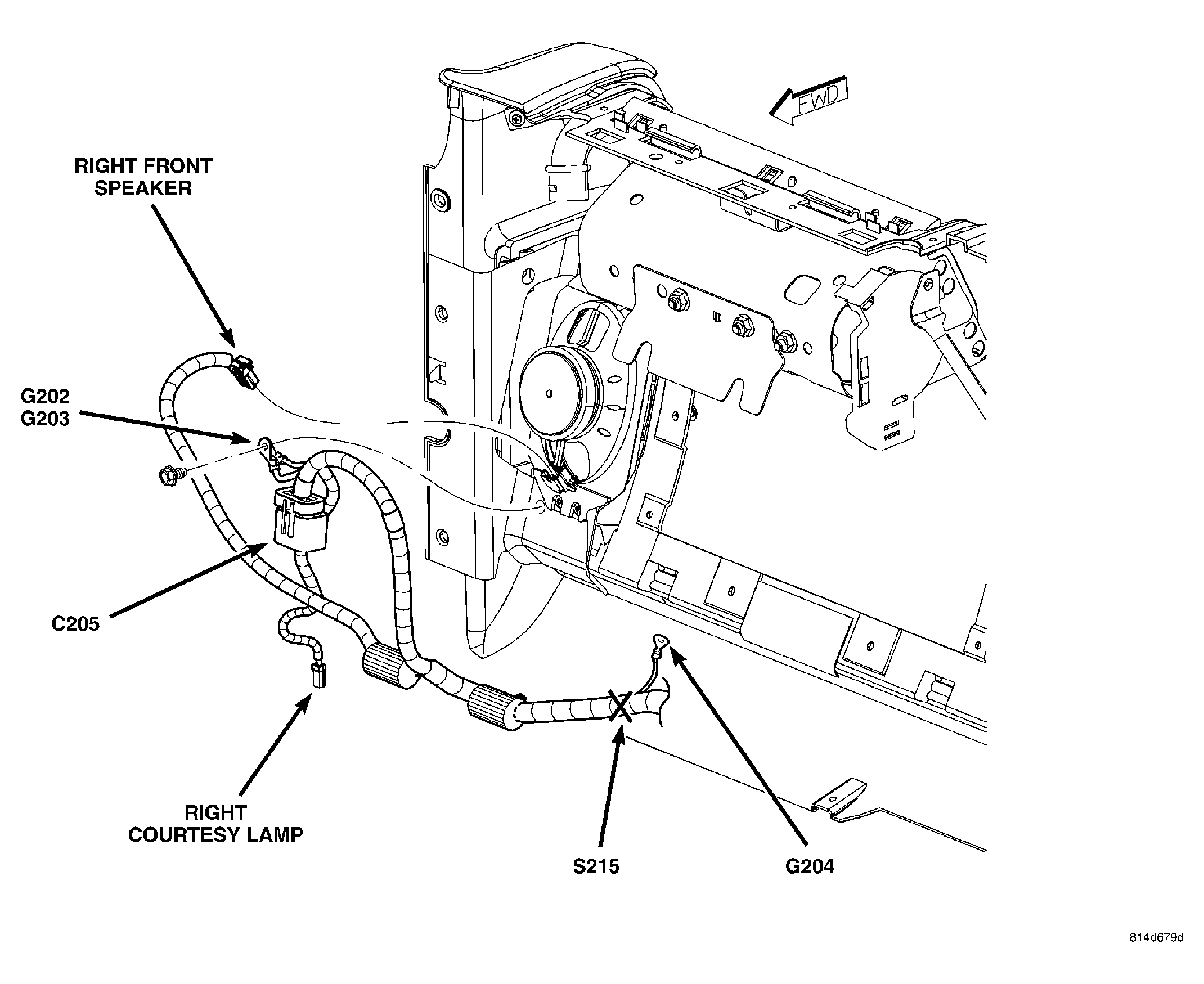

Fig 25: RIGHT SIDE INSTRUMENT PANEL (LHD)
GC0030985Courtesy of DAIMLERCHRYSLER CORP.

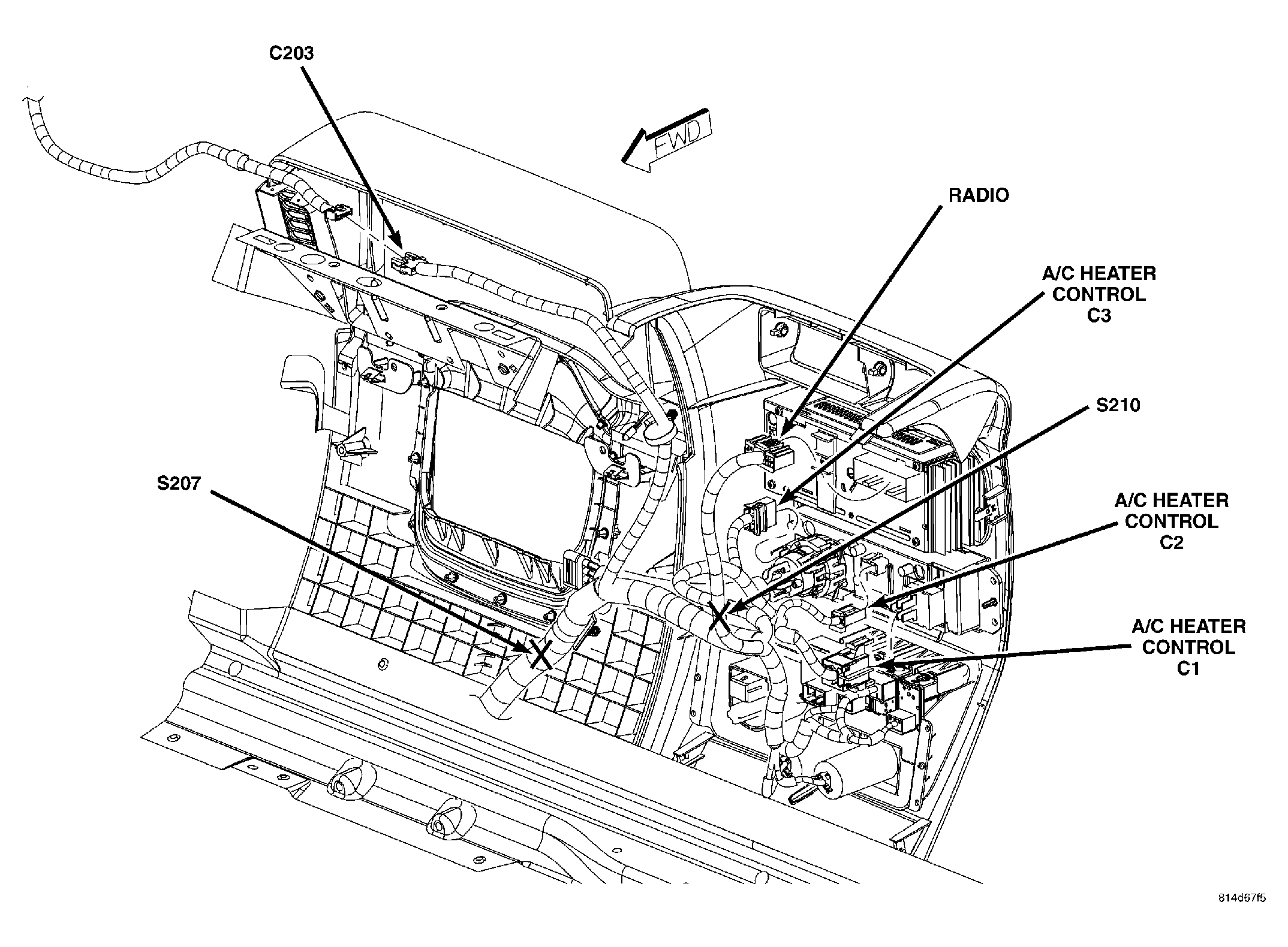

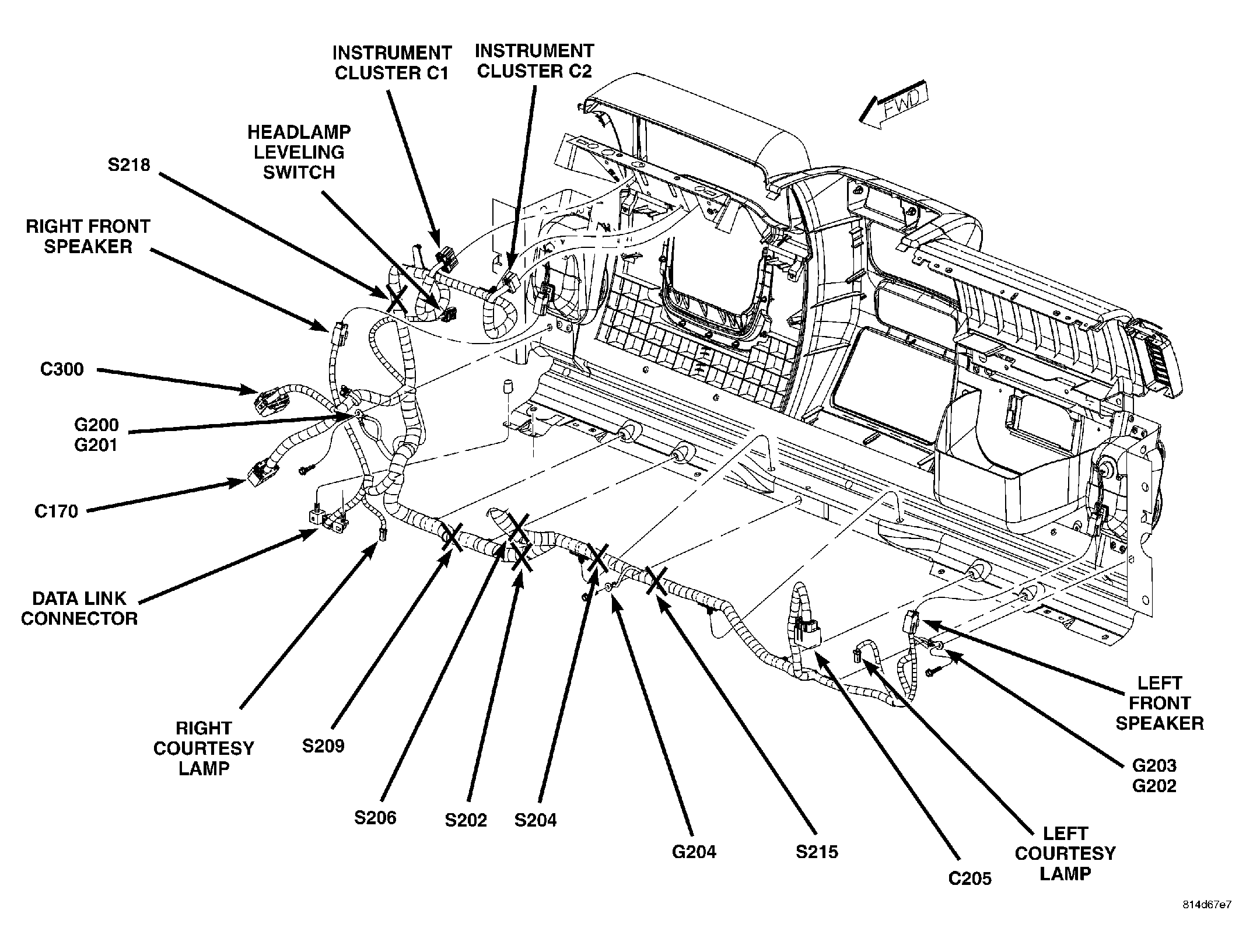

Fig 26: CENTER INSTRUMENT PANEL (LHD)
GC0030986Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: INSTRUMENT PANEL (RHD)
GC0030987Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: CENTER INSTRUMENT PANEL (RHD)
GC0030988Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: RIGHT AND CENTER INSTRUMENT PANEL (RHD)
GC0030989Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: STEERING COLUMN CONNECTIONS
GC0030990Courtesy of DAIMLERCHRYSLER CORP.

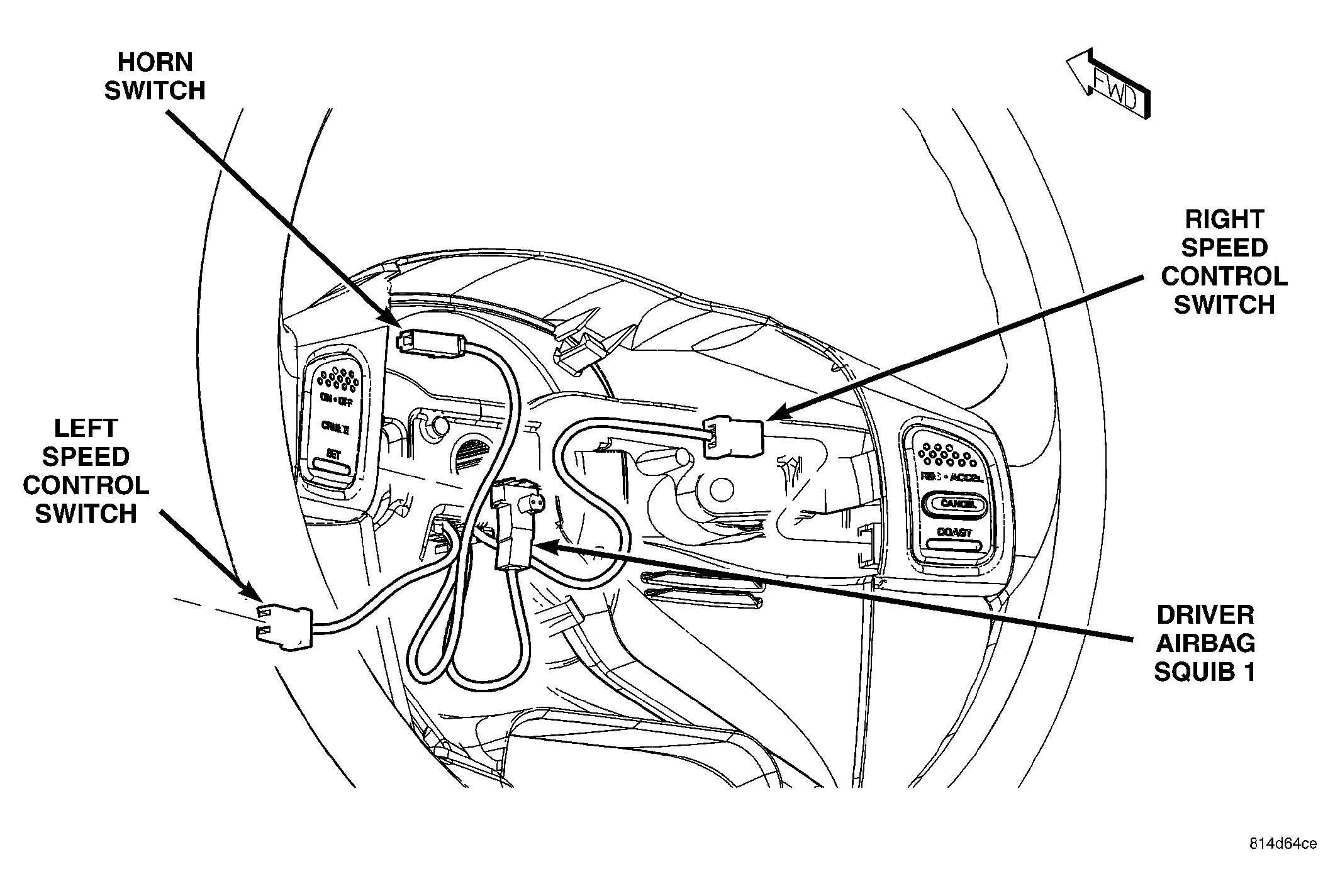

Fig 31: STEERING WHEEL CONNECTIONS
GC0030991Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: TRANSFER CASE
GC0030992Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: FRONT LOCKER INDICATOR SWITCH
GC0030993Courtesy of DAIMLERCHRYSLER CORP.

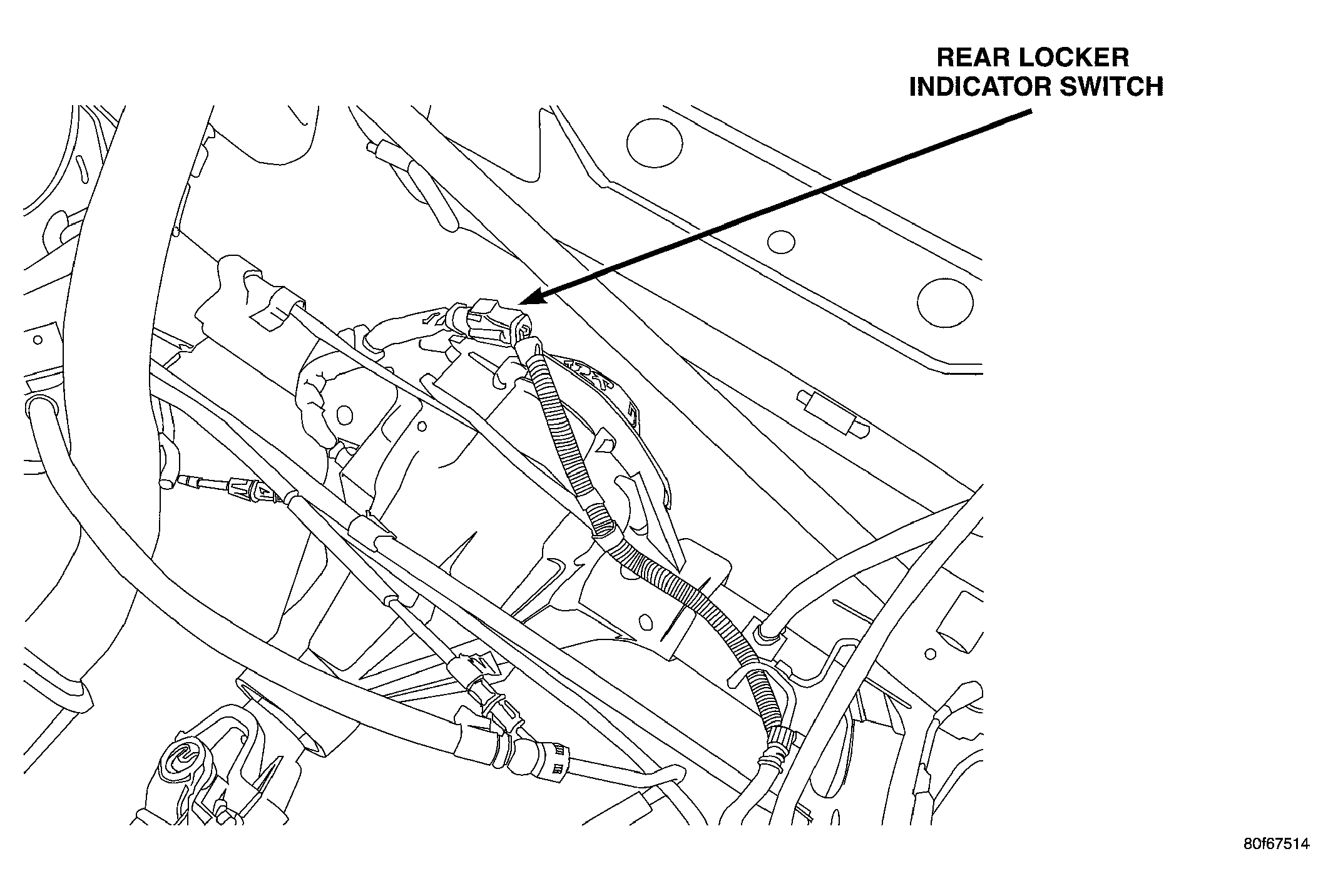

Fig 34: REAR LOCKER INDICATOR SWITCH
GC0030994Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: 4.0 L MANUAL TRANSMISSION
GC0030995Courtesy of DAIMLERCHRYSLER CORP.

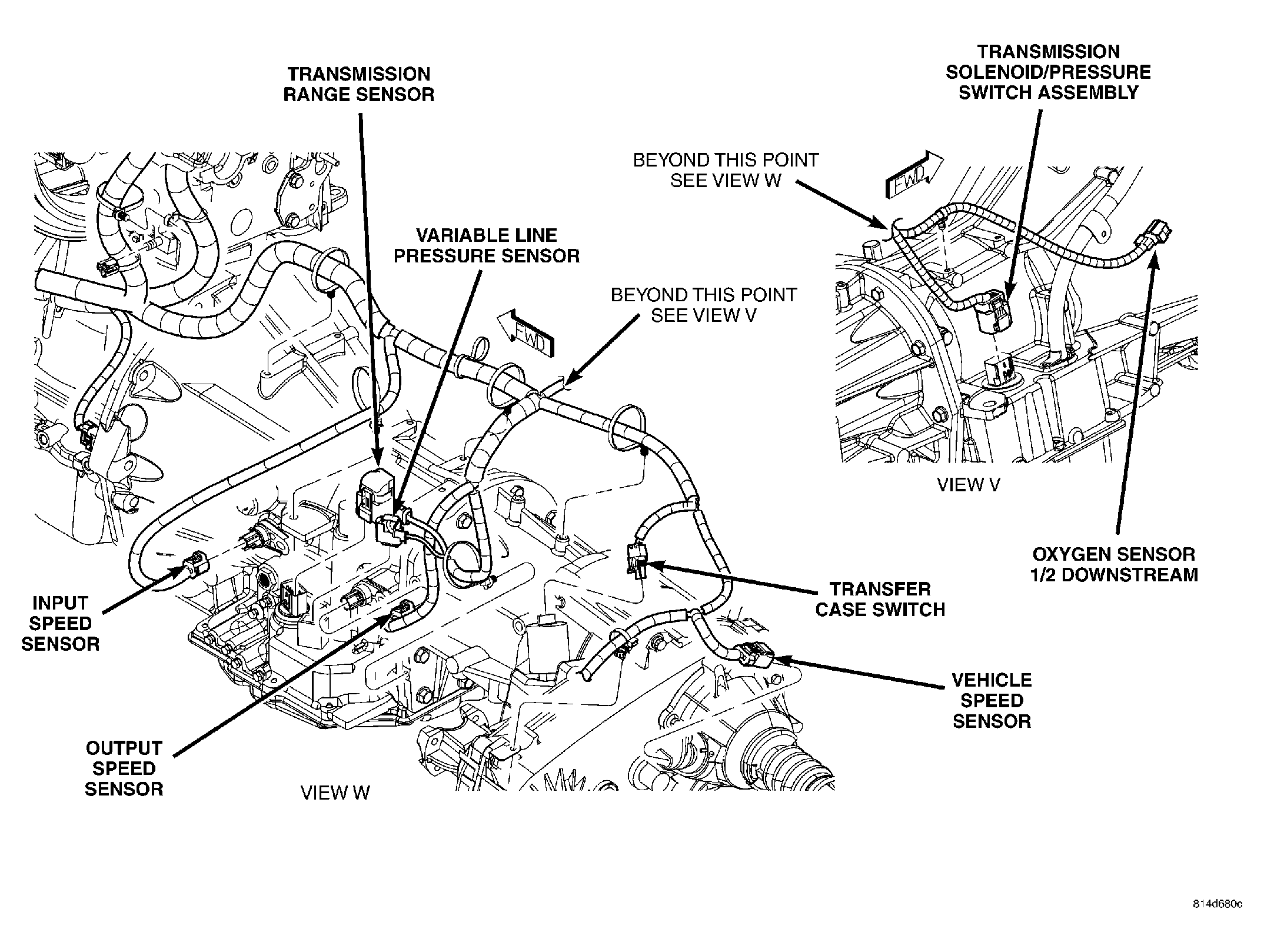

Fig 36: 2.4 L AUTOMATIC TRANSMISSION
GC0030996Courtesy of DAIMLERCHRYSLER CORP.
Fig 37: 2.4 L MANUAL TRANSMISSION
GC0030997Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: BODY CONNECTORS (LHD)
GC0030998Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: BODY CONNECTORS (RHD)
GC0030999Courtesy of DAIMLERCHRYSLER CORP.
Fig 40: FUEL PUMP
GC0031000Courtesy of DAIMLERCHRYSLER CORP.

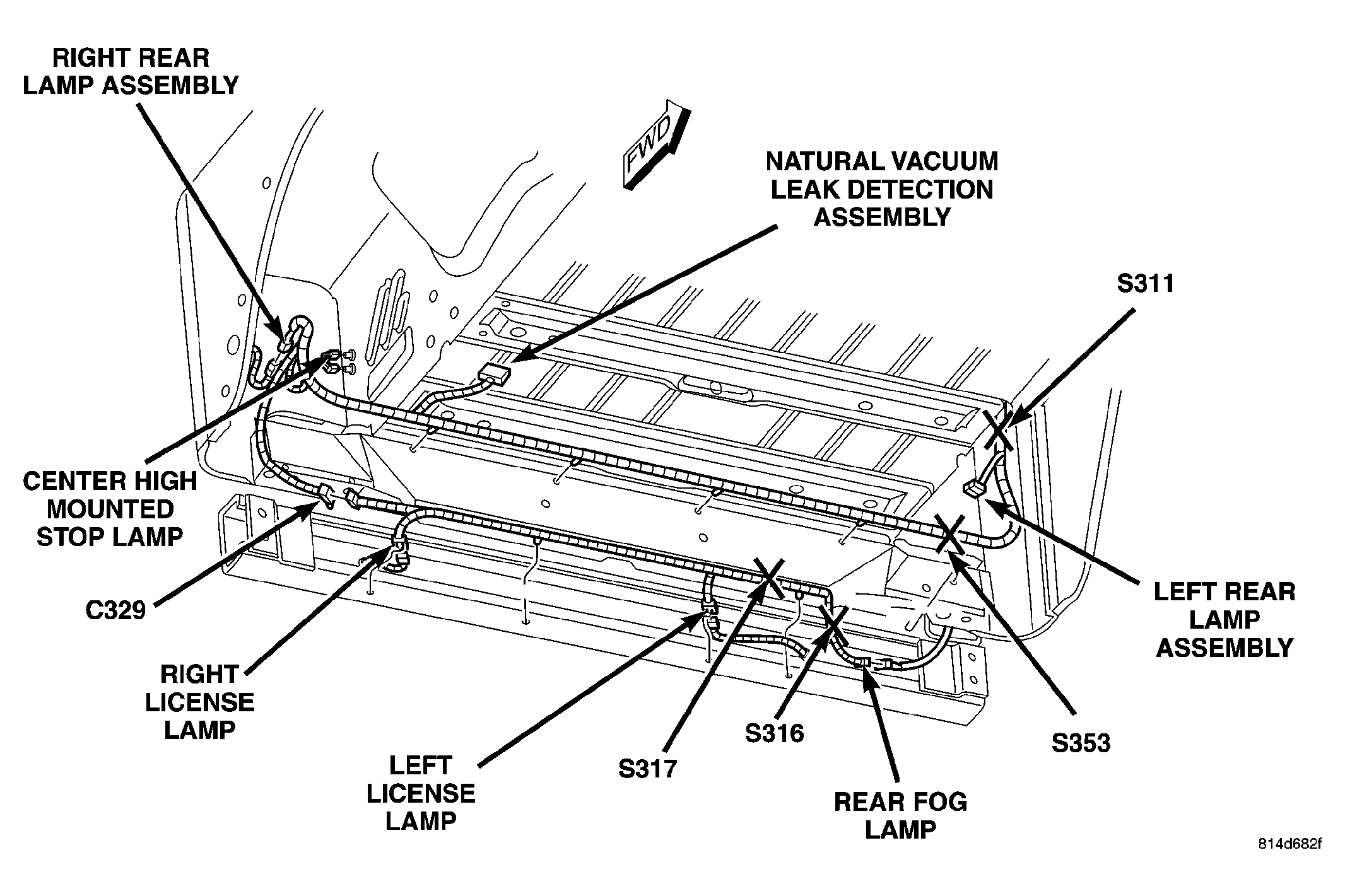

Fig 41: REAR LAMPS (LHD)
GC0031001Courtesy of DAIMLERCHRYSLER CORP.
Fig 42: REAR LAMPS (RHD)
GC0031002Courtesy of DAIMLERCHRYSLER CORP.
scientia non olet · About LEMON Manuals
