Vacuum Hose Routing

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

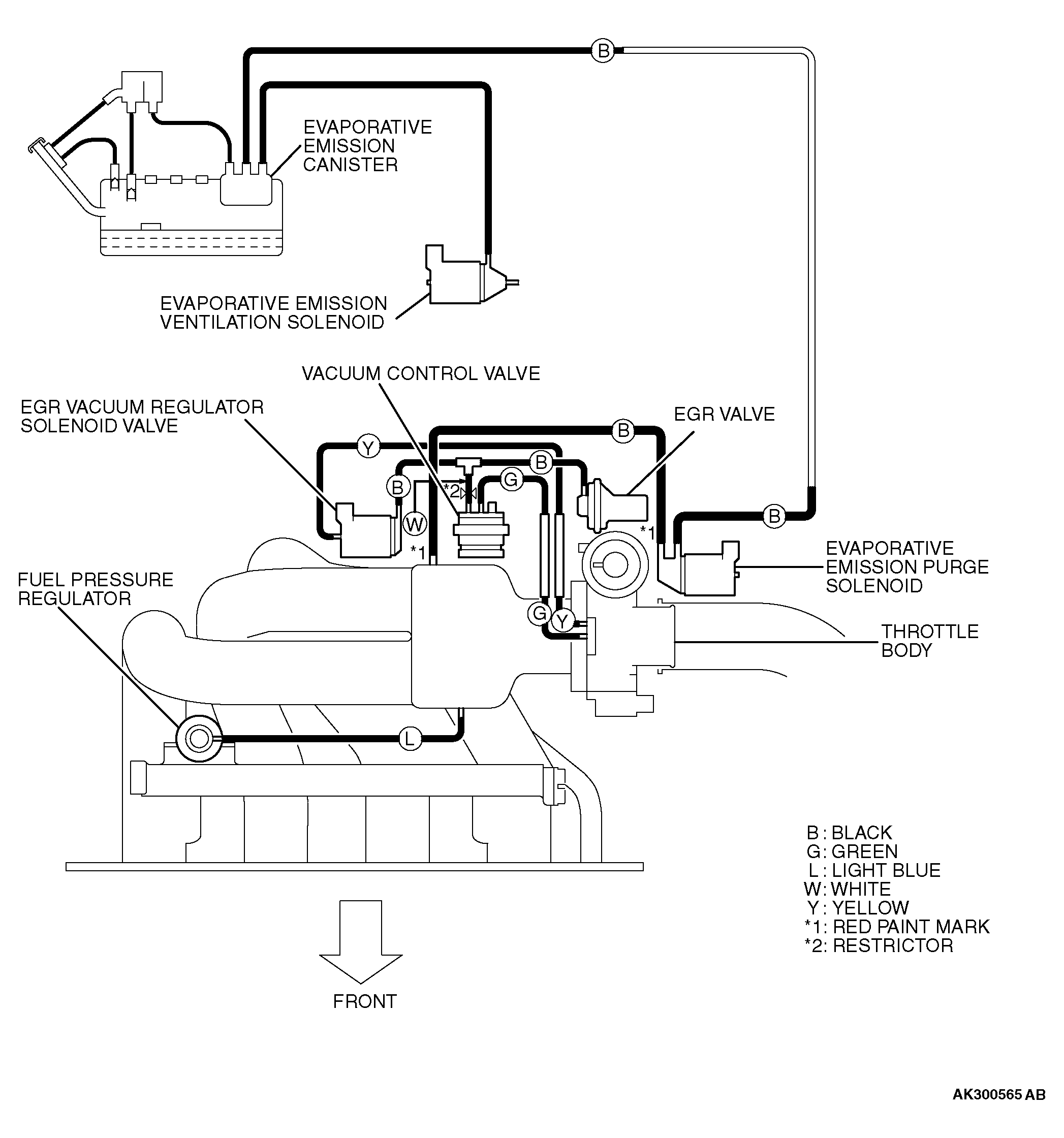

Fig 1: Vacuum Hose Routing - 2.4L Engine
G04538777Courtesy of DAIMLERCHRYSLER CORPORATION

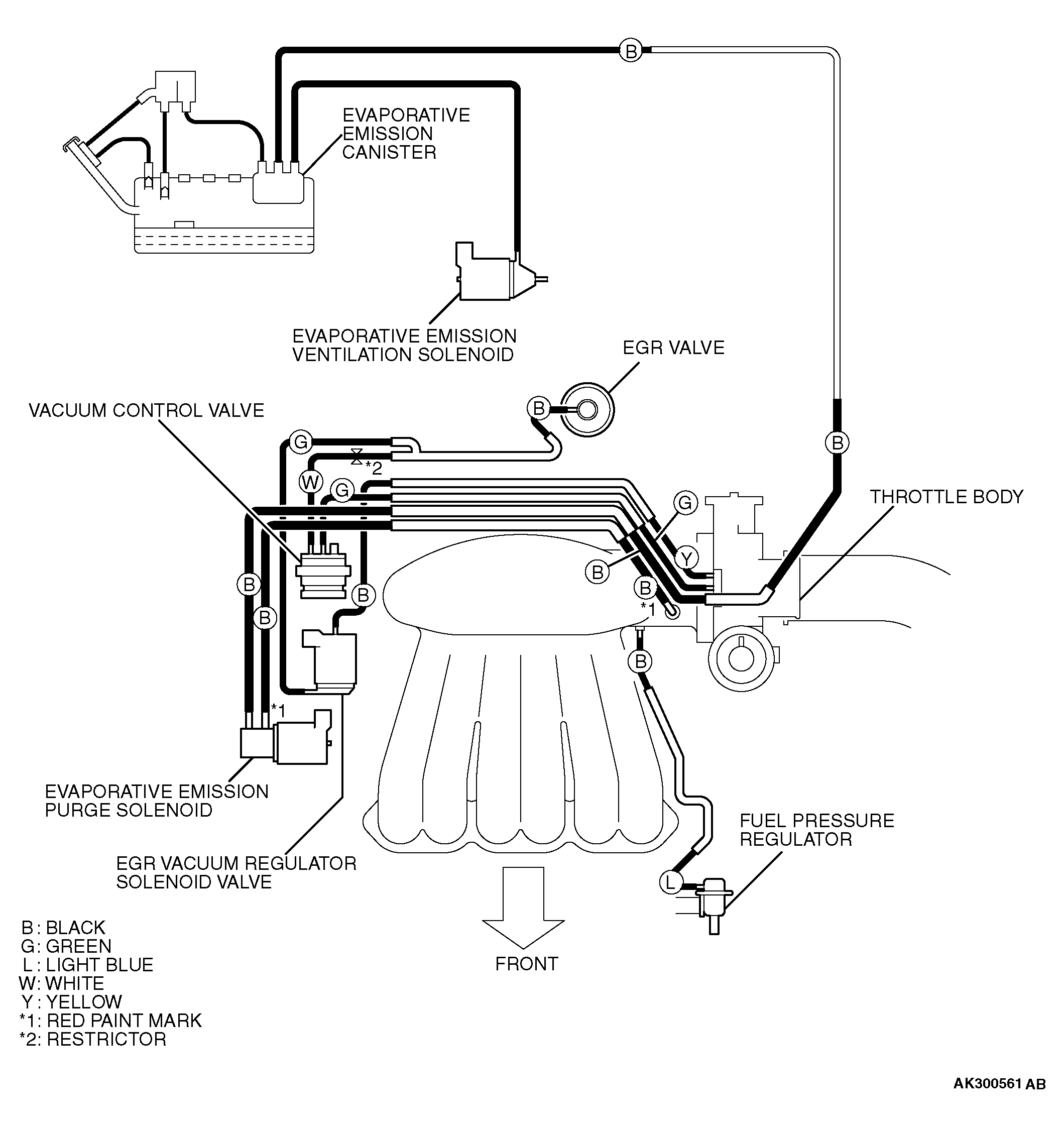

Fig 2: Vacuum Hose Routing - 3.0L Engine
G04538778Courtesy of DAIMLERCHRYSLER CORPORATION
