Vacuum Circuit Diagram

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

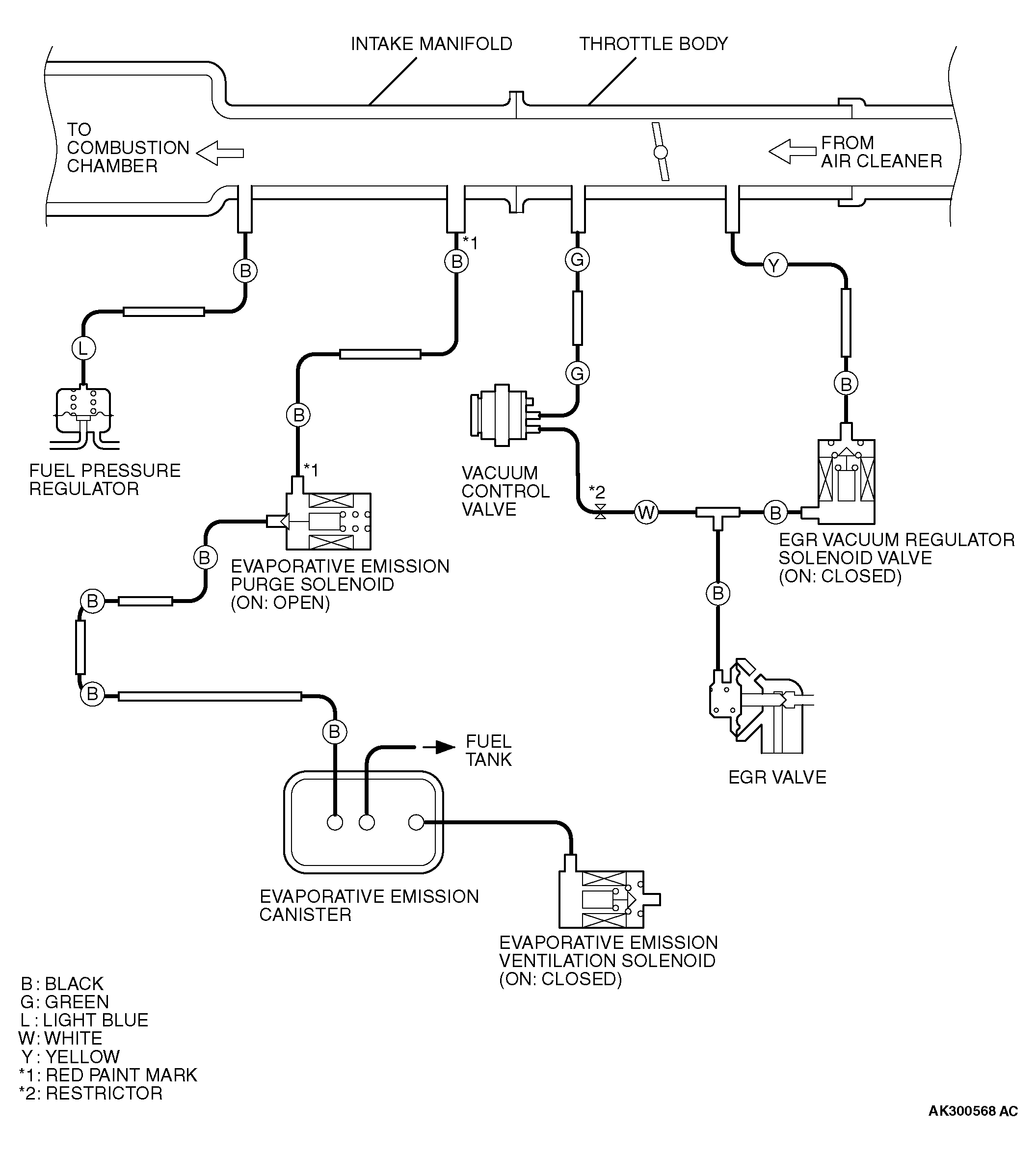

Fig 1: Vacuum Circuit Diagram - 2.4L Engine

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Vacuum Circuit Diagram - 3.0L Engine

Courtesy of DAIMLERCHRYSLER CORPORATION
