ORVR Vent Valve Module Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Blow air through ORVR vent valve module nipple (A). Check that the air flows out of nipple (B) and nipple (C).

Fig 1: Ensuring Air Flows Out Of Nipple (B) And (C)
Courtesy of DAIMLERCHRYSLER CORPORATION
Connect a hand vacuum pump to nipple (A) of the ORVR vent valve module.
With air flow through nipple (C) obstructed, apply a vacuum and check that the vacuum is maintained.

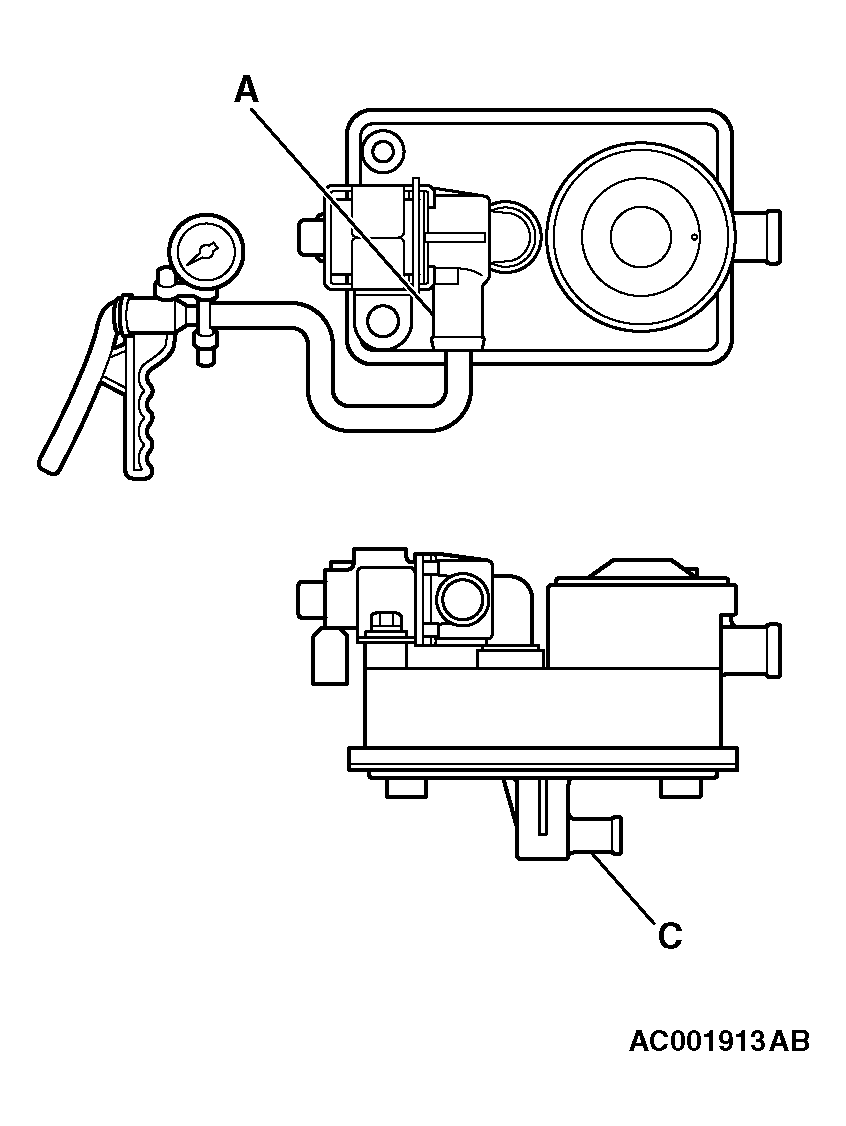

Fig 2: Ensuring Vacuum Is Maintained
Courtesy of DAIMLERCHRYSLER CORPORATION

Check air tightness by applying a vacuum with voltage applied directly from the battery to the over vent valve module and without applying voltage.

VENT VALVE MODULE AIR TIGHTNESS REFERENCE

BATTERY VOLTAGE	NORMAL CONDITION
Applied	Vacuum maintained
Not applied	Vacuum leaks

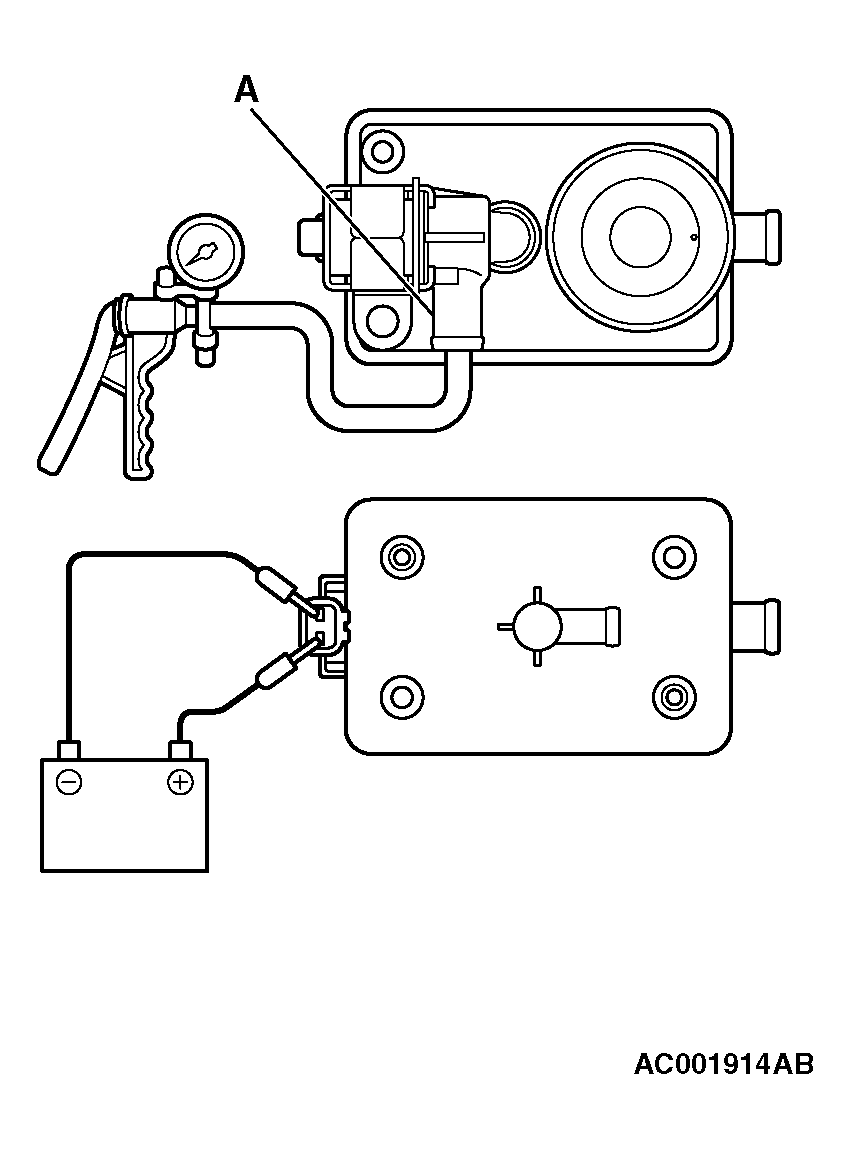

Fig 3: Checking Vent Valve Module Airtightness

Courtesy of DAIMLERCHRYSLER CORPORATION

Measure the resistance between the terminals of the solenoid.
Standard value: 17 - 21 Ω [at 20°C (68°F)]
Replace ORVR vent valve module if resistance is out of specification.

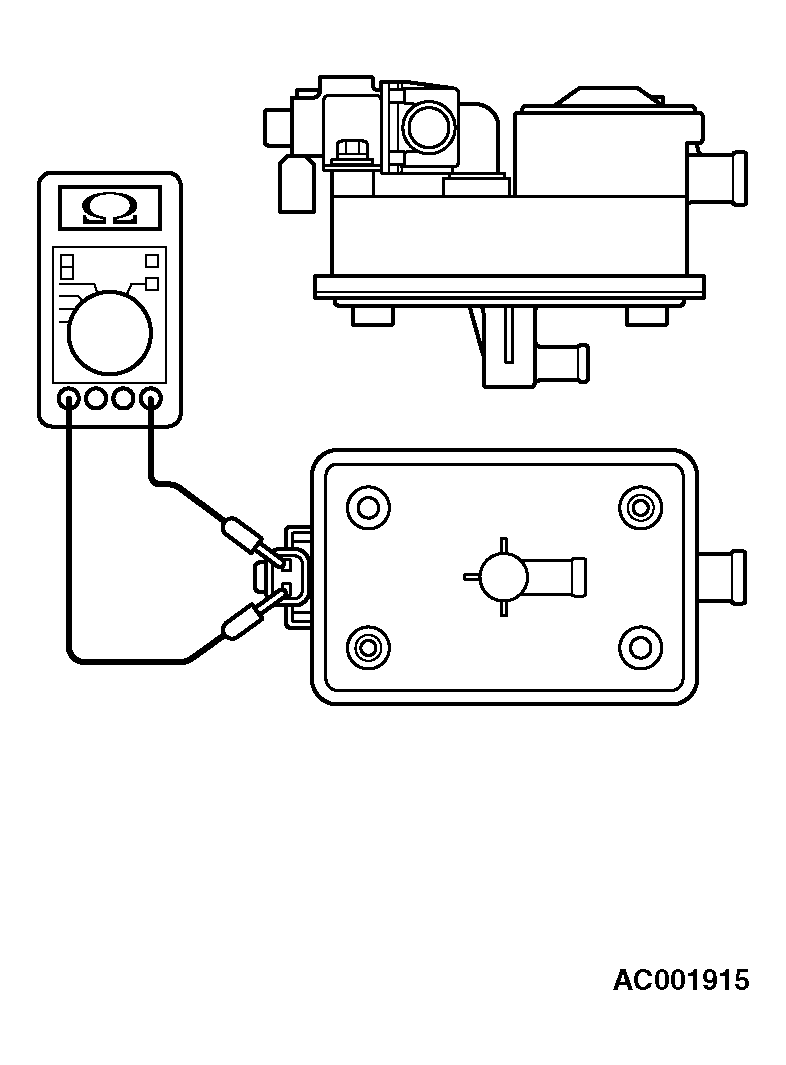

Fig 4: Measuring Resistance Between Terminals Of Solenoid
