Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.

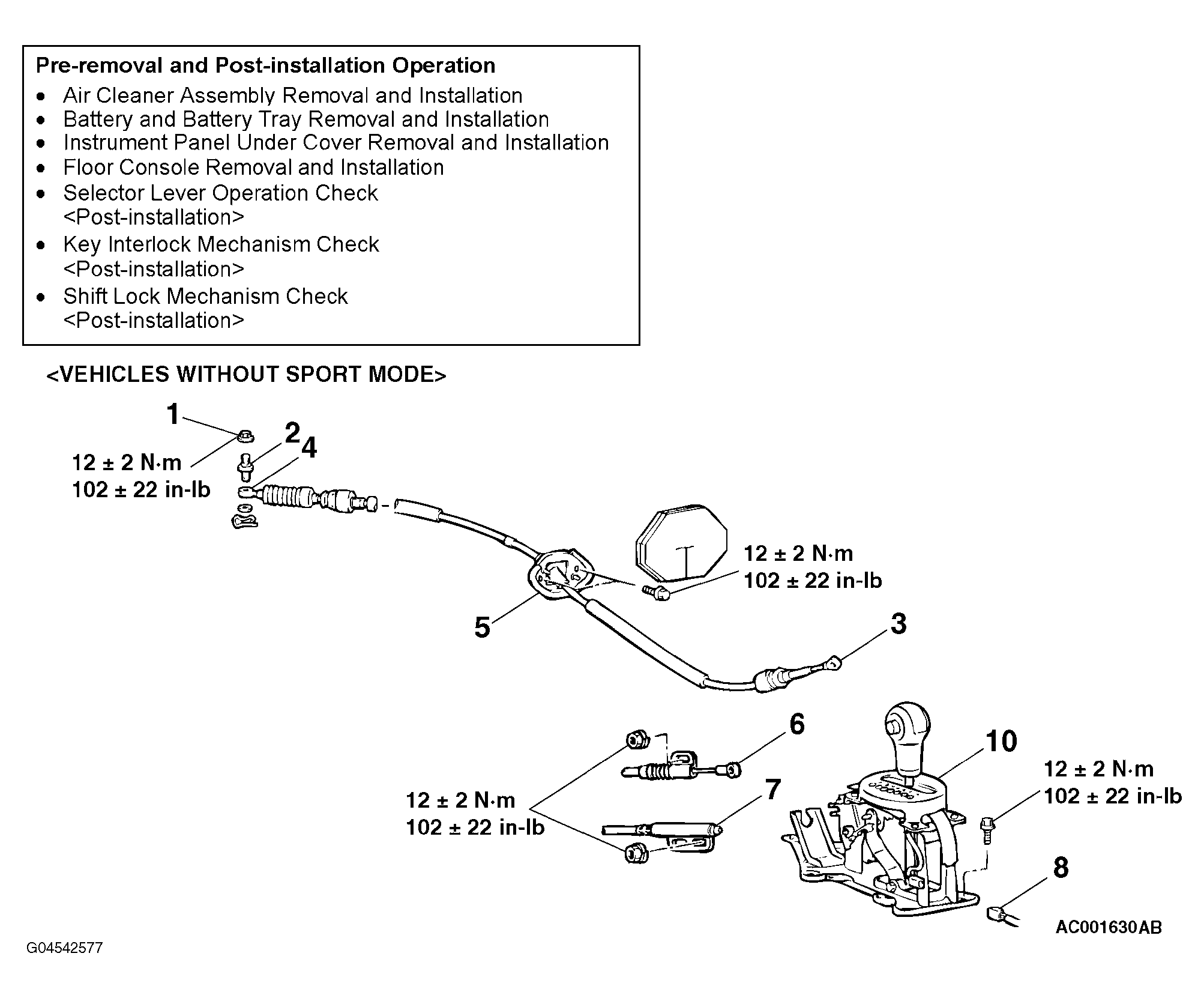

Fig 1: Removing And Installing Transmission Control Cable And Shift Lock Cable Unit (Without Sport Mode)
G04542577Courtesy of CHRYSLER CORP.
Fig 2: Removing And Installing Transmission Control Cable And Shift Lock Cable Unit (With Sport Mode)
G04542578Courtesy of CHRYSLER CORP.
