>> A << Shift Lock Cable (Selector Lever Side) Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the selector lever to the "P" position.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is above the red line on the lock cam.

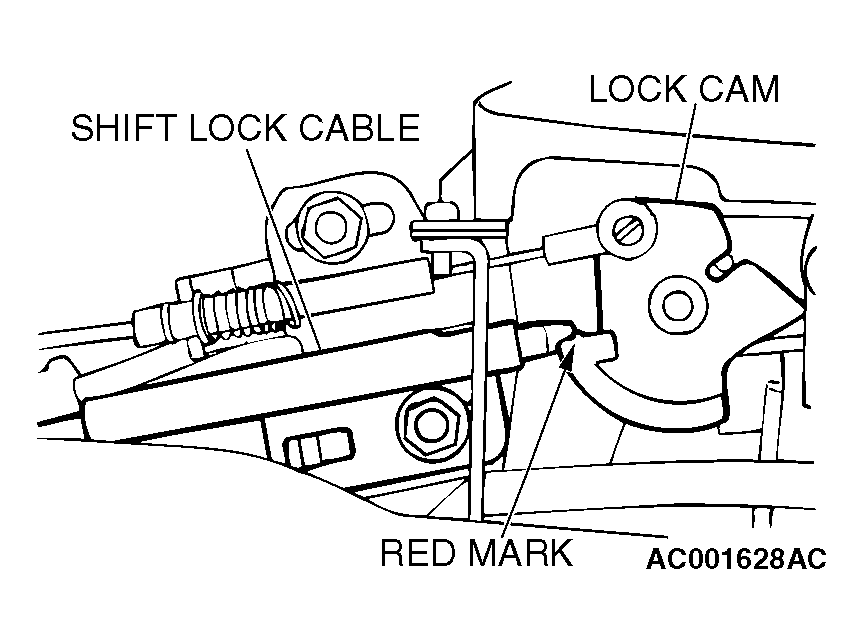

    Fig 1: Installing Shift Lock Cable
    G04542579Courtesy of CHRYSLER CORP.
