Transaxle Control: Inspection

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Check the cable assembly for function and for damage.

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

SHIFT SWITCH ASSEMBLY CONTINUITY REFERENCE

SWITCH POSITION		TERMINAL NO.
Select switch	ON	1 - 5
Select switch	OFF	1 - 2
Shift switch (up shift)	ON	3 - 6
Shift switch (up shift)	OFF	-
Shift switch (down shift)	ON	4 - 6
Shift switch (down shift)	OFF	-

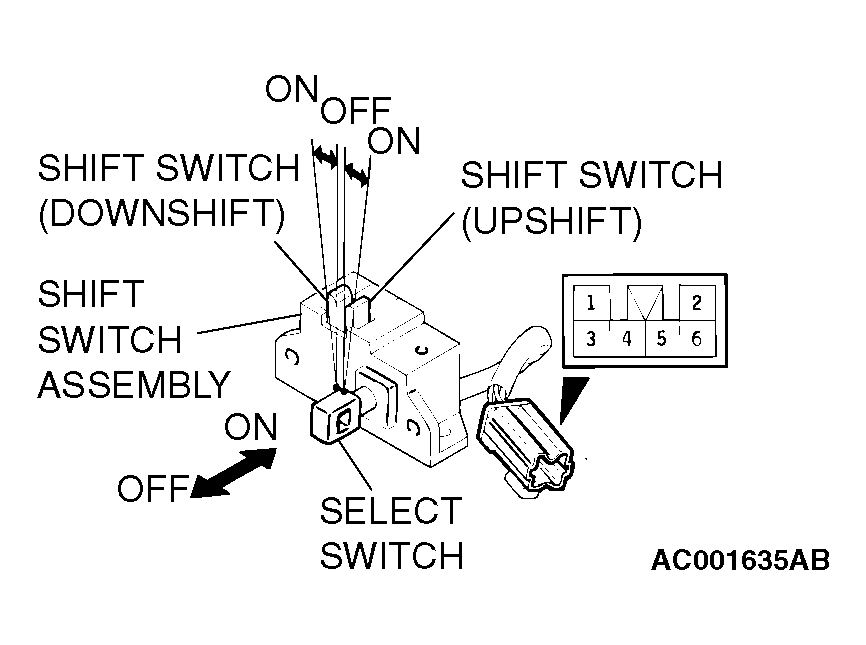

Fig 1: Checking Shift Switch Assembly Continuity

Courtesy of CHRYSLER CORP.
