< Vehicles With Sport Mode >

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

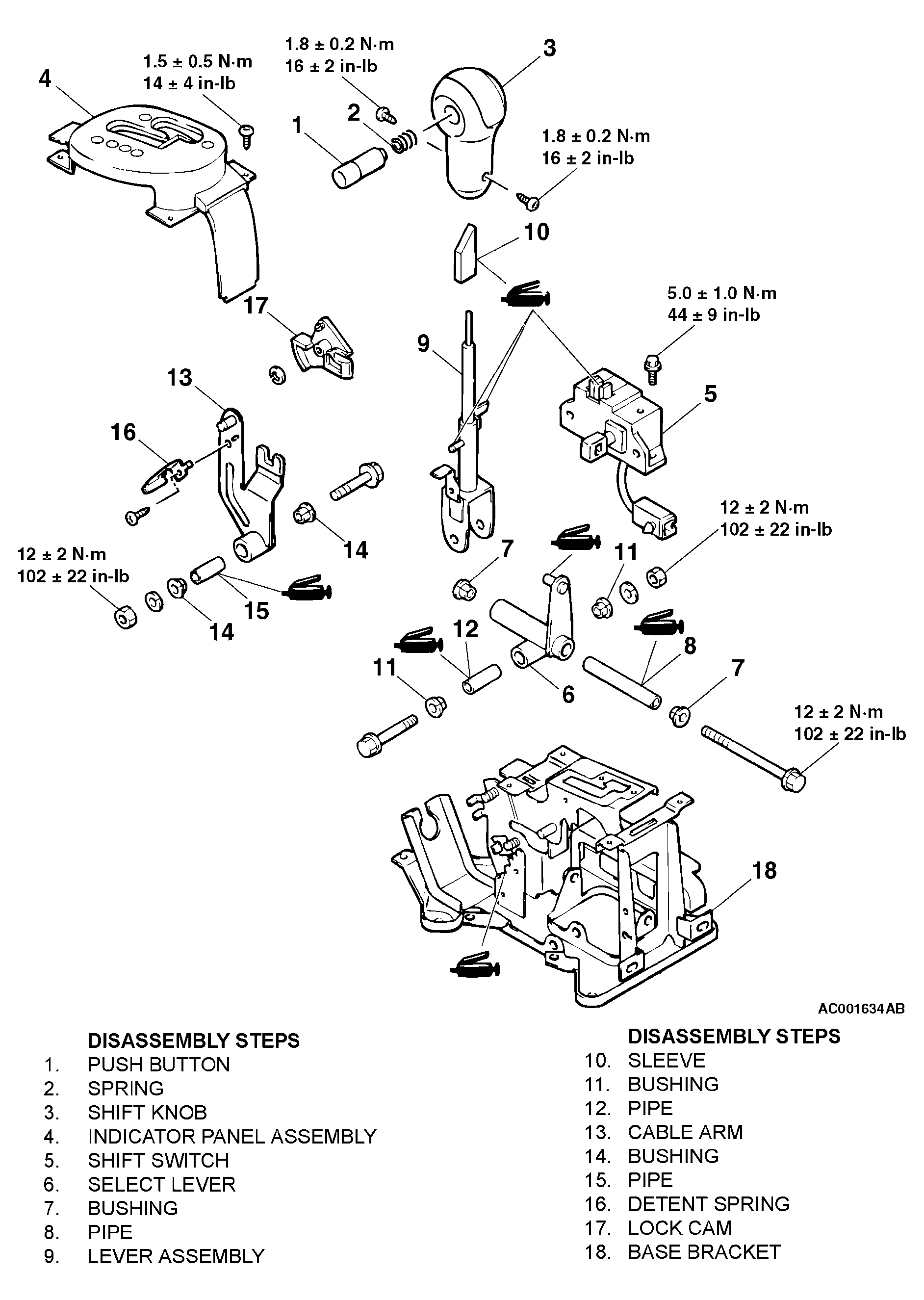

Fig 1: Disassembling View Of Transmission Control Cable And Shift Lock Cable Unit (With Sport Mode)
G04542583Courtesy of CHRYSLER CORP.
