<< G >> Engine Assembly Support

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

< Engine lifter MZ203827 is used > Set special tool MB991453 and MZ203827 to the vehicle to support the engine assembly.

Fig 1: Supporting Engine Assembly Using Special Tool MB991453 And MZ203827
Courtesy of CHRYSLER CORP.
< Engine hanger MB991895 is used >
1. Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.

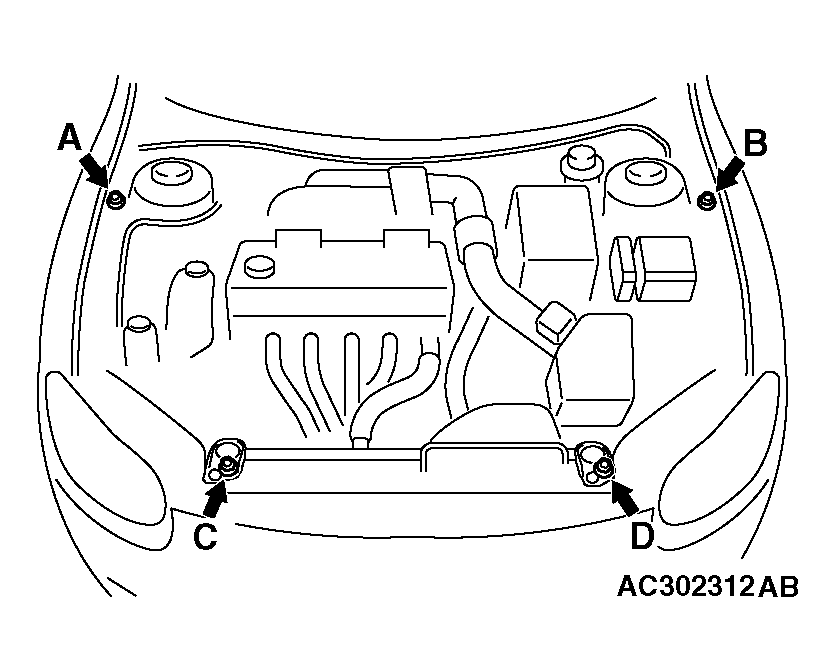

  Fig 2: Locating Front Fender And Radiator Support Upper Insulator Mounting Bolts
  Courtesy of CHRYSLER CORP.
2. Set special tool MB991454 to hold the engine/transaxle assembly.

  Fig 3: Holding Engine/Transaxle Assembly Using Special Tool MB991454
  Courtesy of CHRYSLER CORP.
< Engine hanger MB991928 is used >
1. Assemble the engine hanger (special tool MB991928). Set following parts to the base hanger.
  - Slide bracket (HI)
  - Foot (standard) (MB991932)
  - Foot (short) (MB991933)
  - Joint (50) (MB991929)
  - Joint (90) (MB991930)
  - Joint (140) (MB991931)

    Fig 4: Assembling Engine Hanger (Special Tool MB991928)
    Courtesy of CHRYSLER CORP.
2. Set the engine hanger (special tool MB991928) to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

  Fig 5: Locating Front Fender And Radiator Support Upper Insulator Mounting Bolts
  Courtesy of CHRYSLER CORP.
3. Set special tools MB991454 to hold the engine/transaxle assembly.

  Fig 6: Holding Engine/Transaxle Assembly Using Special Tools MB991454
  Courtesy of CHRYSLER CORP.
