<< C >> Driveshaft Disconnection

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not pull on the driveshaft; doing so will damage the TJ; be sure to use a pry bar.
  • Do not insert a pry bar so deep as to damage the oil seal.
  • Do not damage the transaxle oil seal with the spline of the driveshaft.

Insert the pry bar between the transaxle case and the driveshaft as shown to remove the driveshaft.

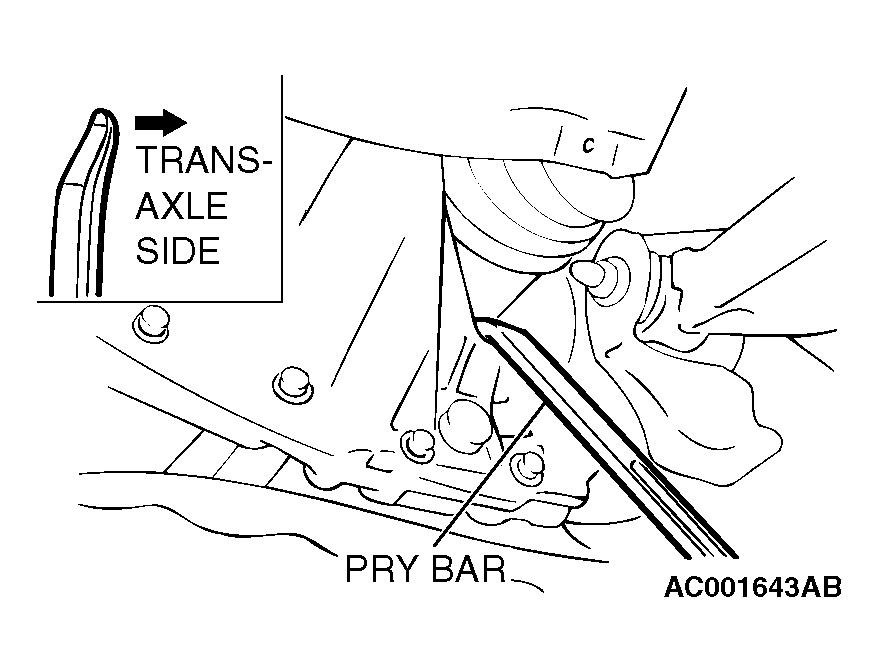

Fig 1: Inserting Pry Bar Between Transaxle Case And Driveshaft
G04542594Courtesy of CHRYSLER CORP.
