Transaxle Control Cable Adjustment

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray.
  2. Move the selector lever to the "N" position.
  3. Loosen the upper control lever adjusting nut.
  4. Gently push the transaxle control cable in the direction of the arrow, and then tighten the adjusting nut.

    Tightening torque: 12 +/- 2 N.m (102 +/- 22 in-lb)

  5. Check that the transaxle shifts to the correct range corresponding to the position of the selector lever, and that it functions correctly in that range.
  6. Install the battery and battery tray.

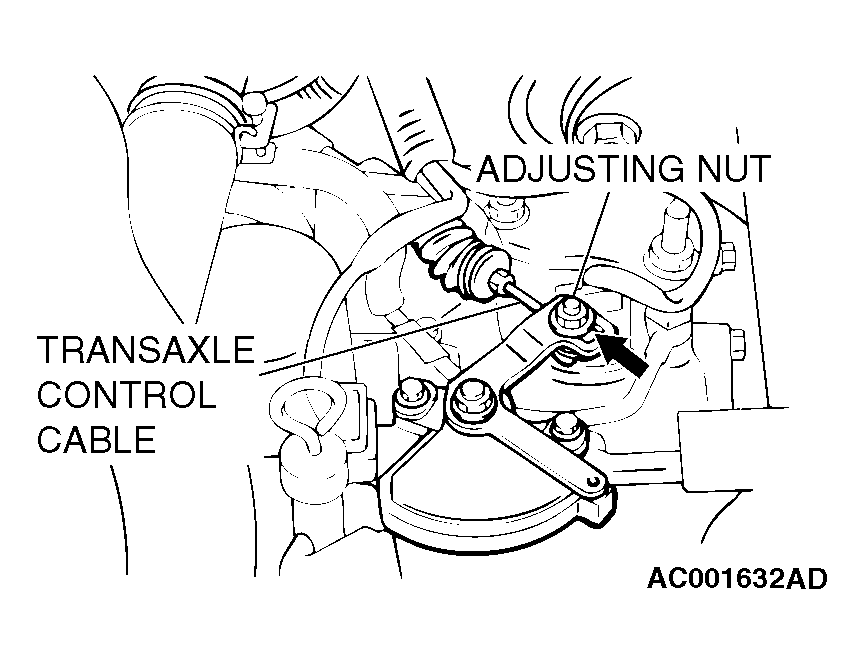

    Fig 1: Adjusting Transaxle Control Cable
    G04542576Courtesy of CHRYSLER CORP.
