A/T Control Relay Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/T control relay.

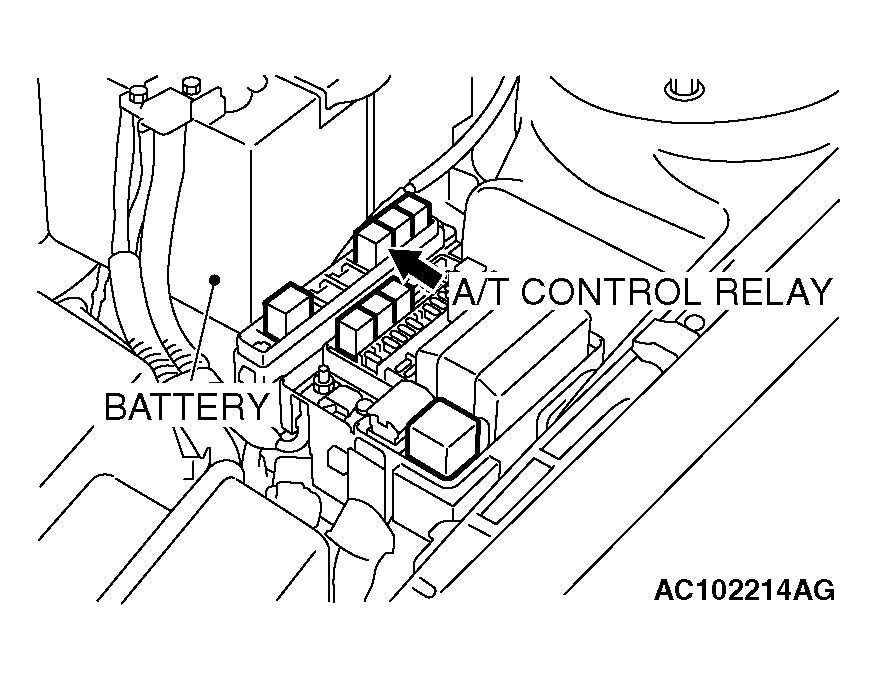

    Fig 1: Locating A/T Control Relay
    G04542568Courtesy of CHRYSLER CORP.
  2. Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.
  3. Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.
    A/T CONTROL RELAY CONTINUITY REFERENCE

    JUMPER WIRE CONTINUITY BETWEEN TERMINALS NO. 1 AND NO. 4
    Connected Continuity
    Disconnected No continuity
  4. If there is any problem with the A/T control relay, replace it.
    Fig 2: Checking A/T Control Relay
    G04542569Courtesy of CHRYSLER CORP.
