INSPECTION PROCEDURE 12: No Diagnostic Trouble Codes (Does not Shift): Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tool:

MB991502: Scan Tool (MUT-II)

STEP 1. Check the vehicle acceleration.
Q: Does the vehicle accelerate poorly (transaxle stays in 3rd gear) when starting from a stop with the selector lever in "D" range?

YES : Go to Step 2.

NO: Go to Step 5.
STEP 2. Measure the backup power supply voltage at PCM connector C-114 < 2.4L Engine > or C-115 < 3.0L Engine > by backprobing.
1. Do not disconnect connector C-114 < 2.4L Engine > or C-115 < 3.0L Engine >.

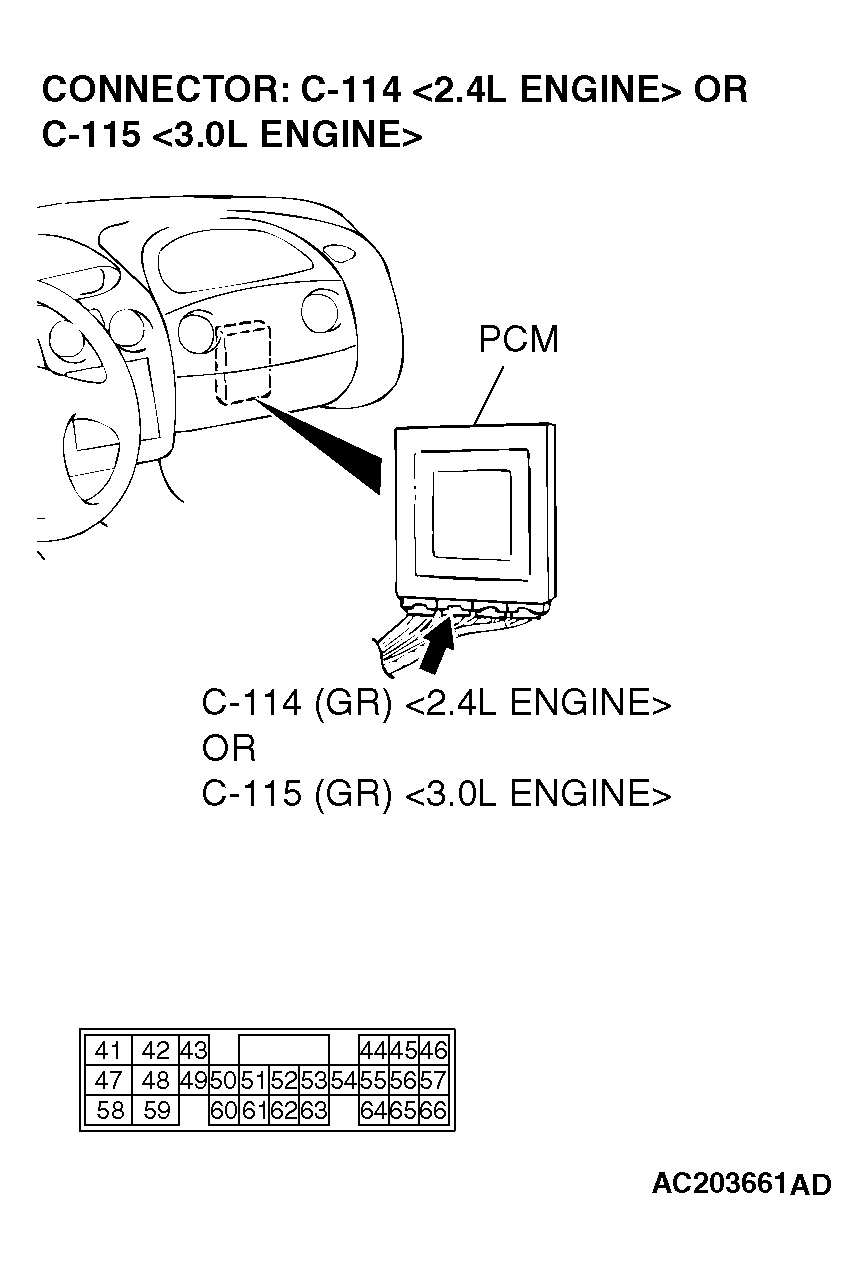

  Fig 1: Locating PCM Connector Terminal C-114 And C-115
  Courtesy of CHRYSLER CORP.
2. Measure the voltage between terminal 66 and ground by backprobing.
  - The voltage should measure measured battery positive voltage.
Q: Is the measured voltage battery positive voltage?

YES : Go to Step 5.

NO: Go to Step 3.

Fig 2: Measuring Voltage Between Terminal 66 And Ground By Backprobing
Courtesy of CHRYSLER CORP.
STEP 3. Check intermediate connector C-06 and PCM connector C-114 < 2.4L Engine > or C-115 < 3.0L Engine > for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 4.

NO: Repair or replace the damaged components. Refer to HARNESS CONNECTOR INSPECTION . Then check for the symptom.

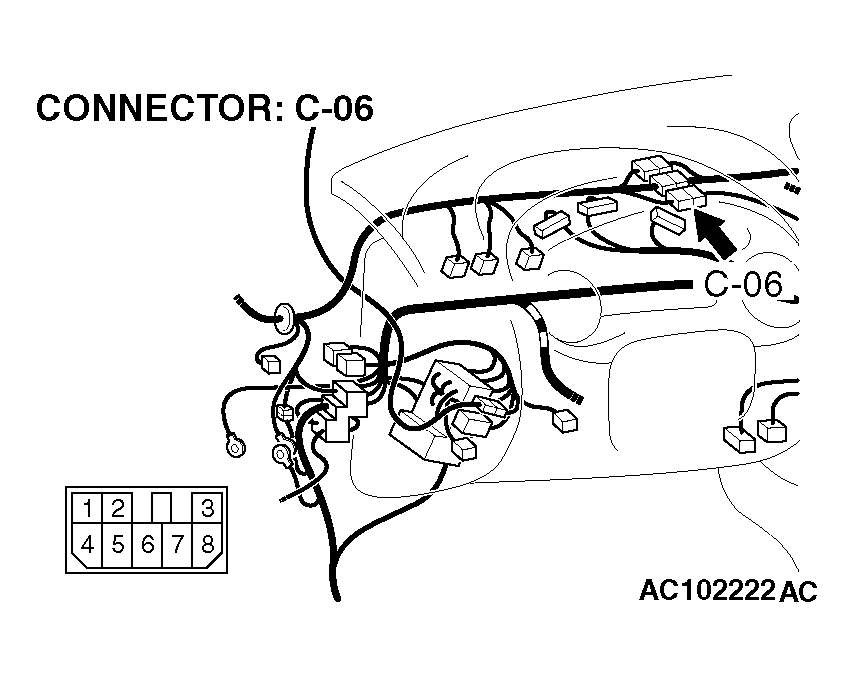

Fig 3: Identifying Intermediate Connector Terminal C-06
Courtesy of CHRYSLER CORP.

Fig 4: Locating PCM Connector Terminal C-114 And C-115
Courtesy of CHRYSLER CORP.
STEP 4. Check the harness for open circuit between PCM connector C-114 < 2.4L Engine > or C-115 < 3.0L Engine > terminal 66 and battery.
Q: Is the harness wire in good condition?

YES : Go to Step 5.

NO: Repair or replace the harness wire.

Fig 5: Locating PCM Connector Terminal C-115 And C-114
Courtesy of CHRYSLER CORP.
STEP 5. Using scan tool MB991502, check data list item 61: Transmission Range Switch.
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.
1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991502 to data reading mode for item 61: Transmission Range Switch.
  - Move the selector lever to "P," "R," "N," "D," "3," "2," "L" positions and confirm that the selected selector lever positions match the positions shown on the scan tool MB991502.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the switch operating properly?

YES : Check for the symptom. If the symptom is not eliminated, replace the PCM.

NO: Refer to DTCs 27 , 28: Transmission Range Switch System . ,

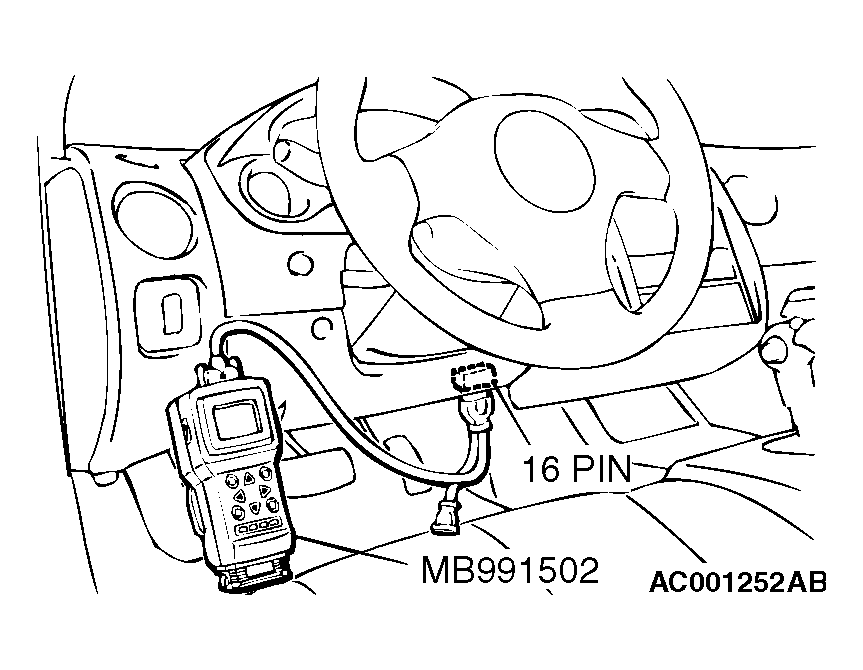

Fig 6: Connecting Scan Tool To Data Link Connector
Courtesy of CHRYSLER CORP.
