LOGIC FLOW CHARTS (Monitor Sequence): Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Monitor Sequence Logic Flow Chart

G04541879

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Chart (Monitor Sequence)

G04541976

Courtesy of CHRYSLER CORP.

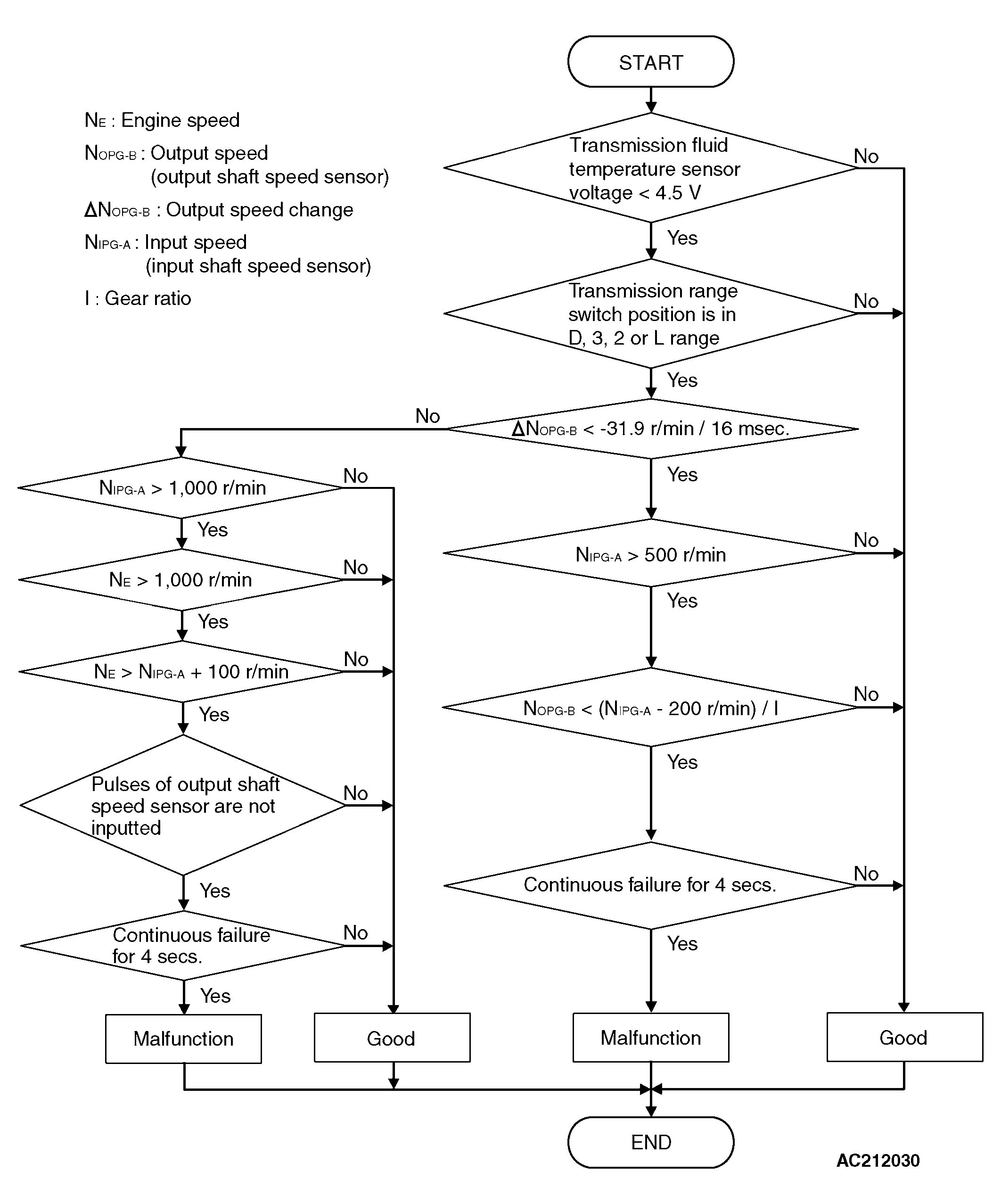

Fig 1: Logic Flow Chart (Monitor Sequence)

G04542012

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Chart (Monitor Sequence)

G04542068

Courtesy of CHRYSLER CORP.

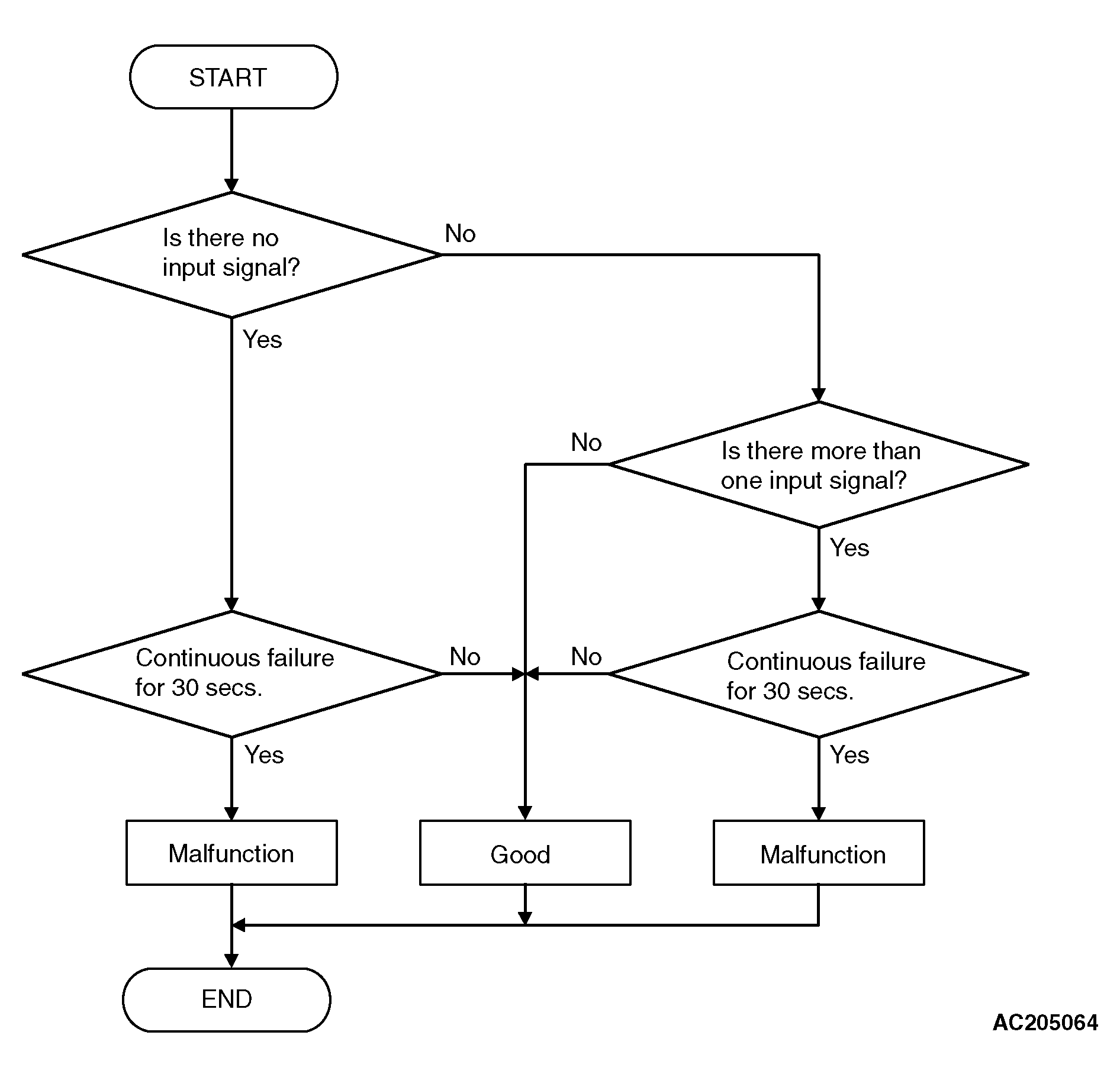

Fig 1: Logic Flow Chart (Monitor Sequence)

G04542158

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542207

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542231

Courtesy of CHRYSLER CORP.

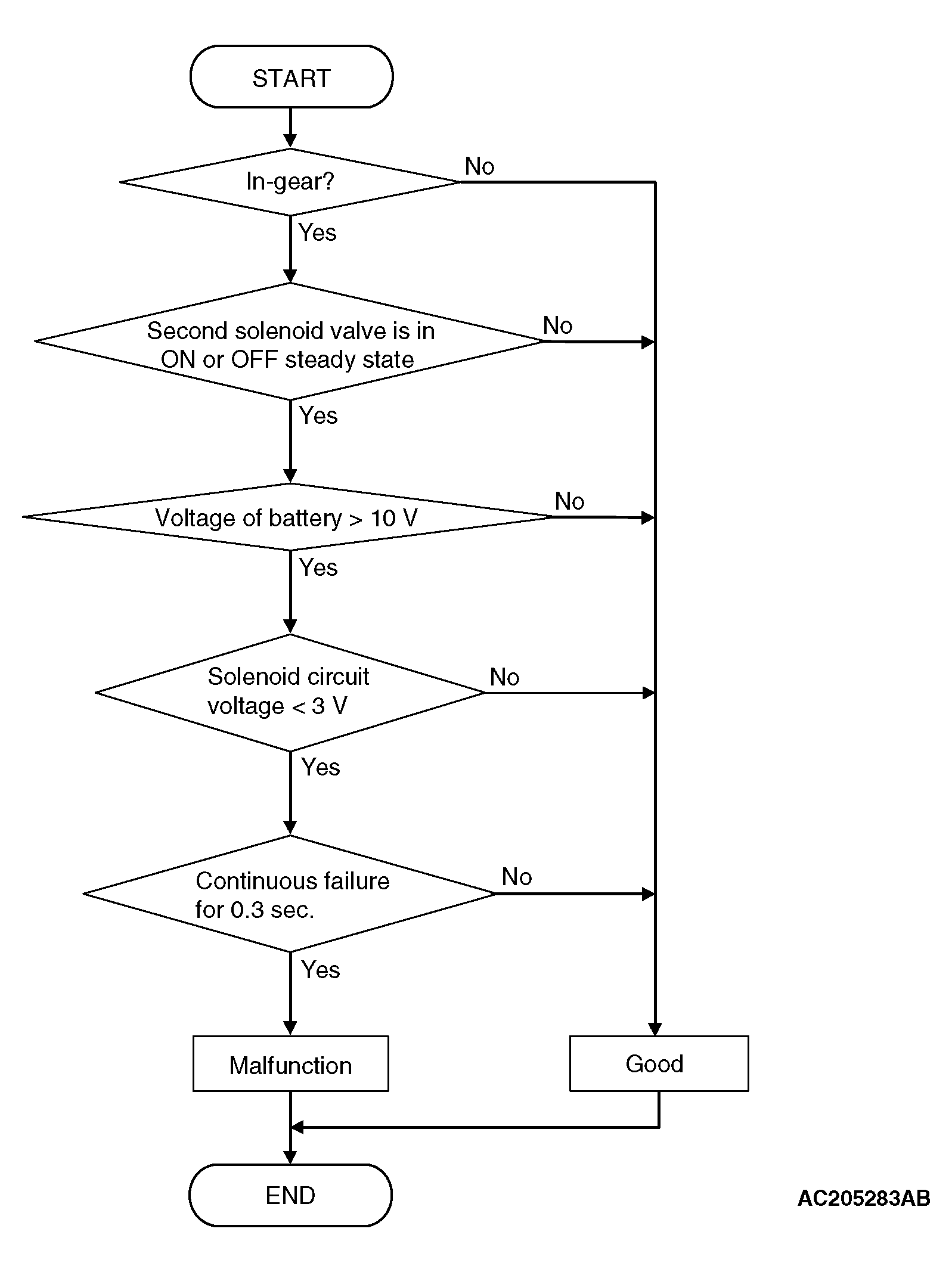

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542255

Courtesy of CHRYSLER CORP.

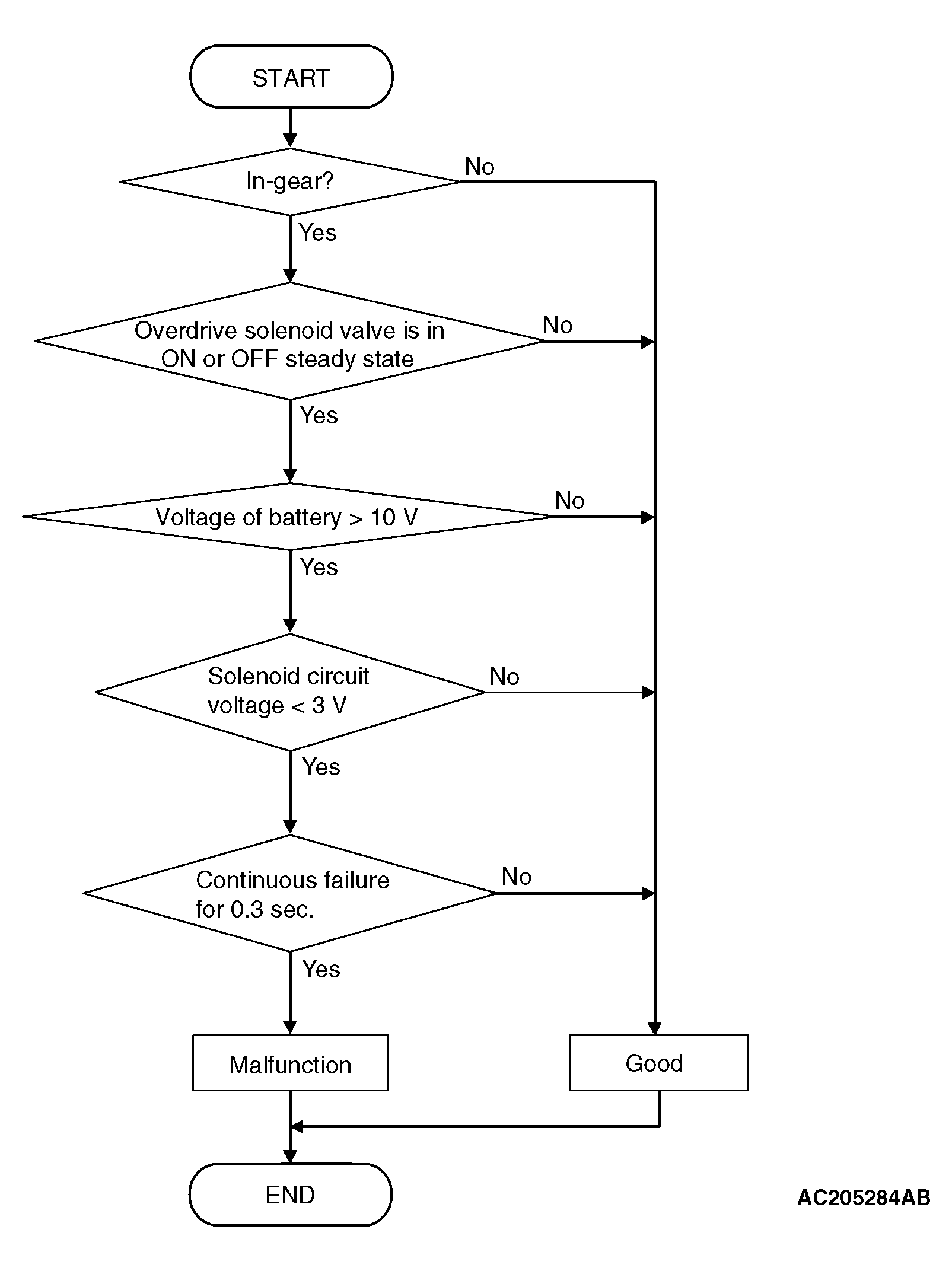

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542279

Courtesy of CHRYSLER CORP.

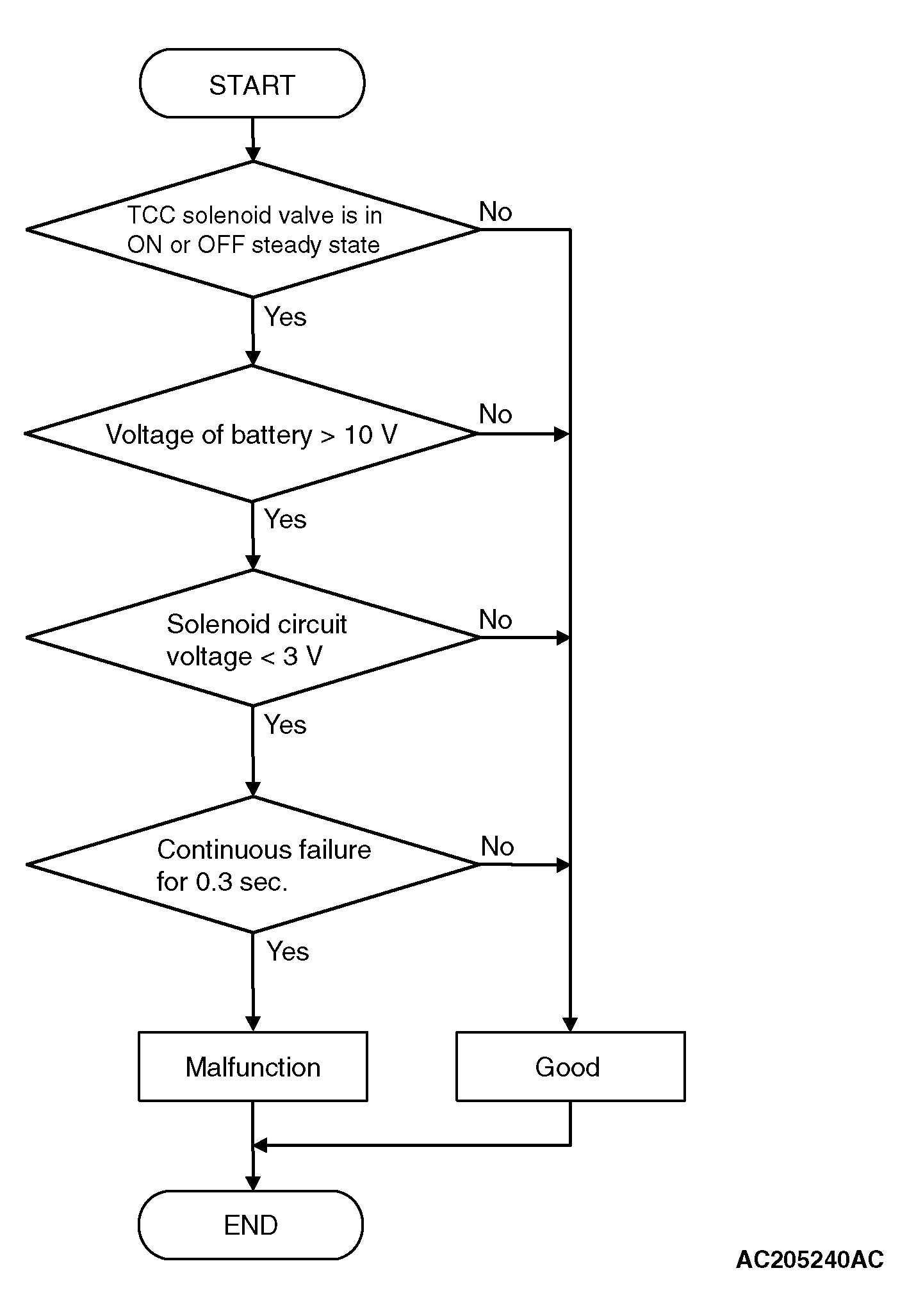

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542303

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542328

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542329

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542330

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542331

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542332

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542336

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542342

Courtesy of CHRYSLER CORP.

Fig 1: Logic Flow Charts (Monitor Sequence)

G04542347

Courtesy of CHRYSLER CORP.
