WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

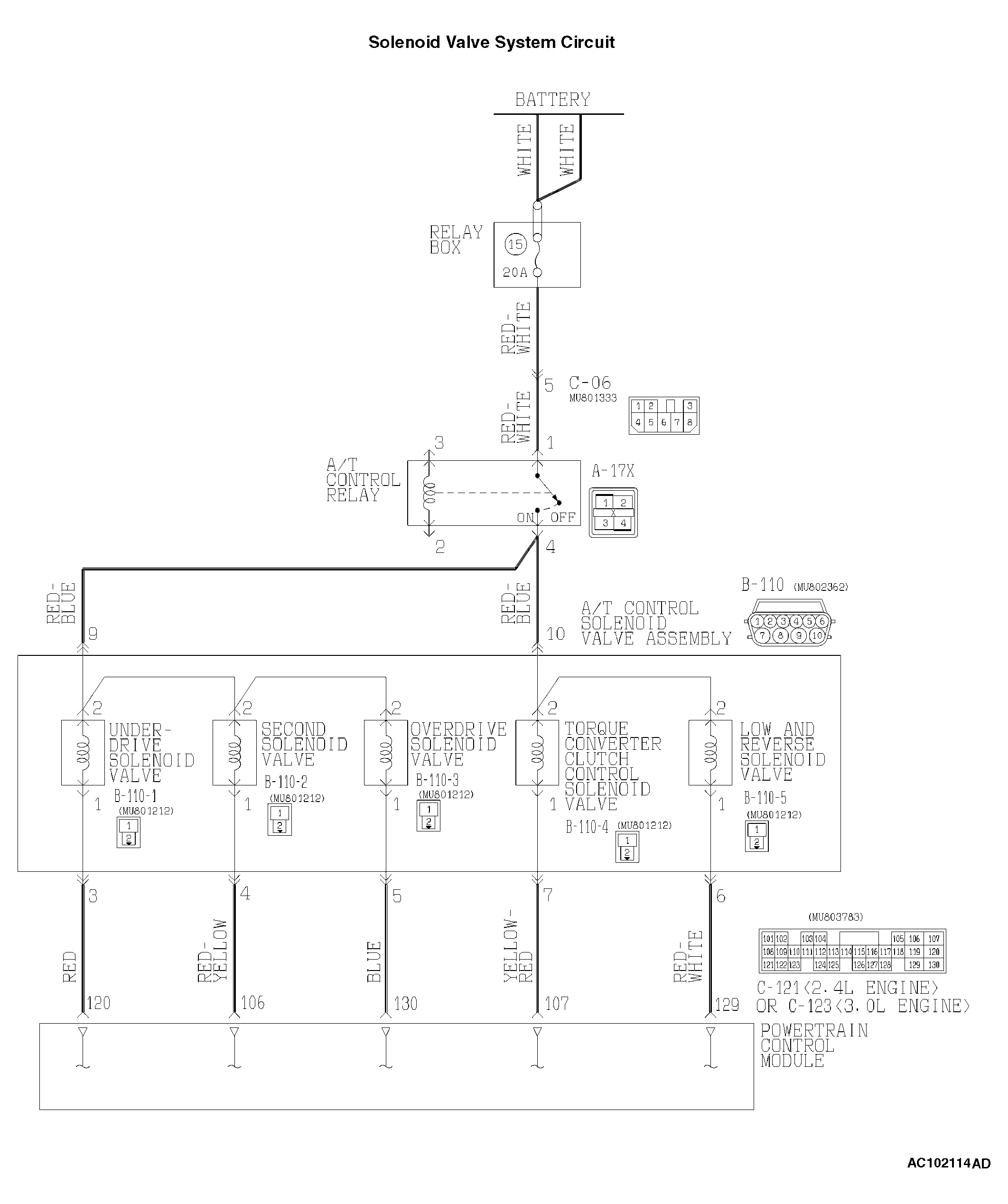

Fig 1: Low-Reverse Solenoid Valve System - Circuit Diagram (1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 2: Low-Reverse Solenoid Valve System - Circuit Diagram (2 Of 2)
