>> A << Shift Lock Cable (Selector Lever Side) Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the selector lever in the "P" position.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red mark on the lock cam.

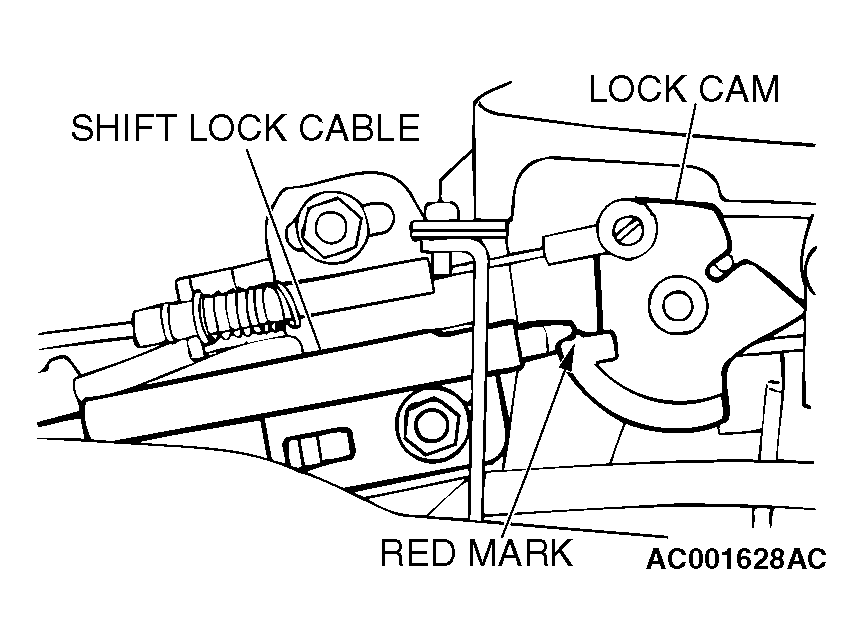

    Fig 1: Installing Shift Lock Cable (Selector Lever Side)
    G04542586Courtesy of CHRYSLER CORP.
