Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

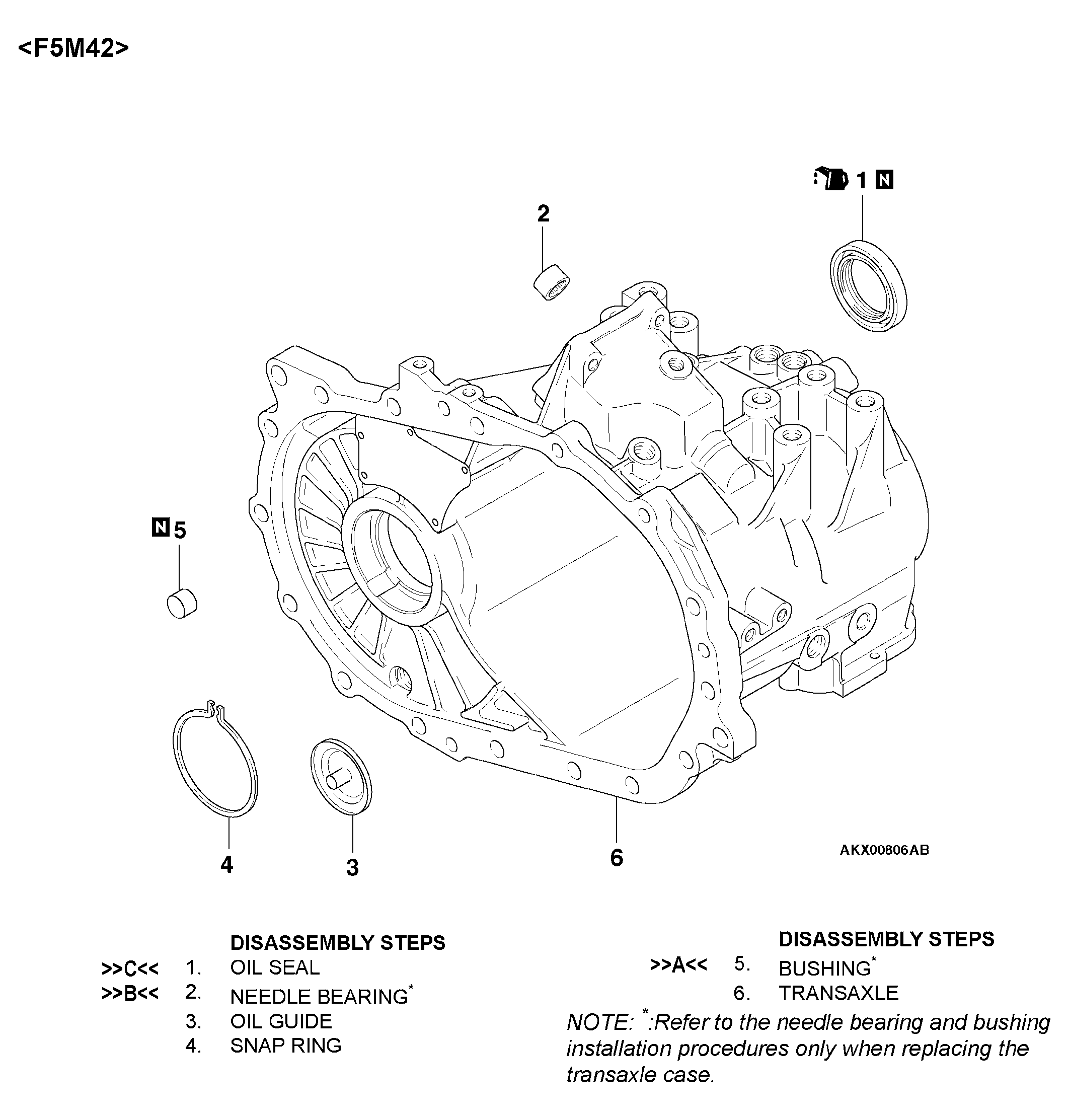

Fig 1: Disassembling/Assembling Transmission Case (F5M42)
G04541724Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tools:

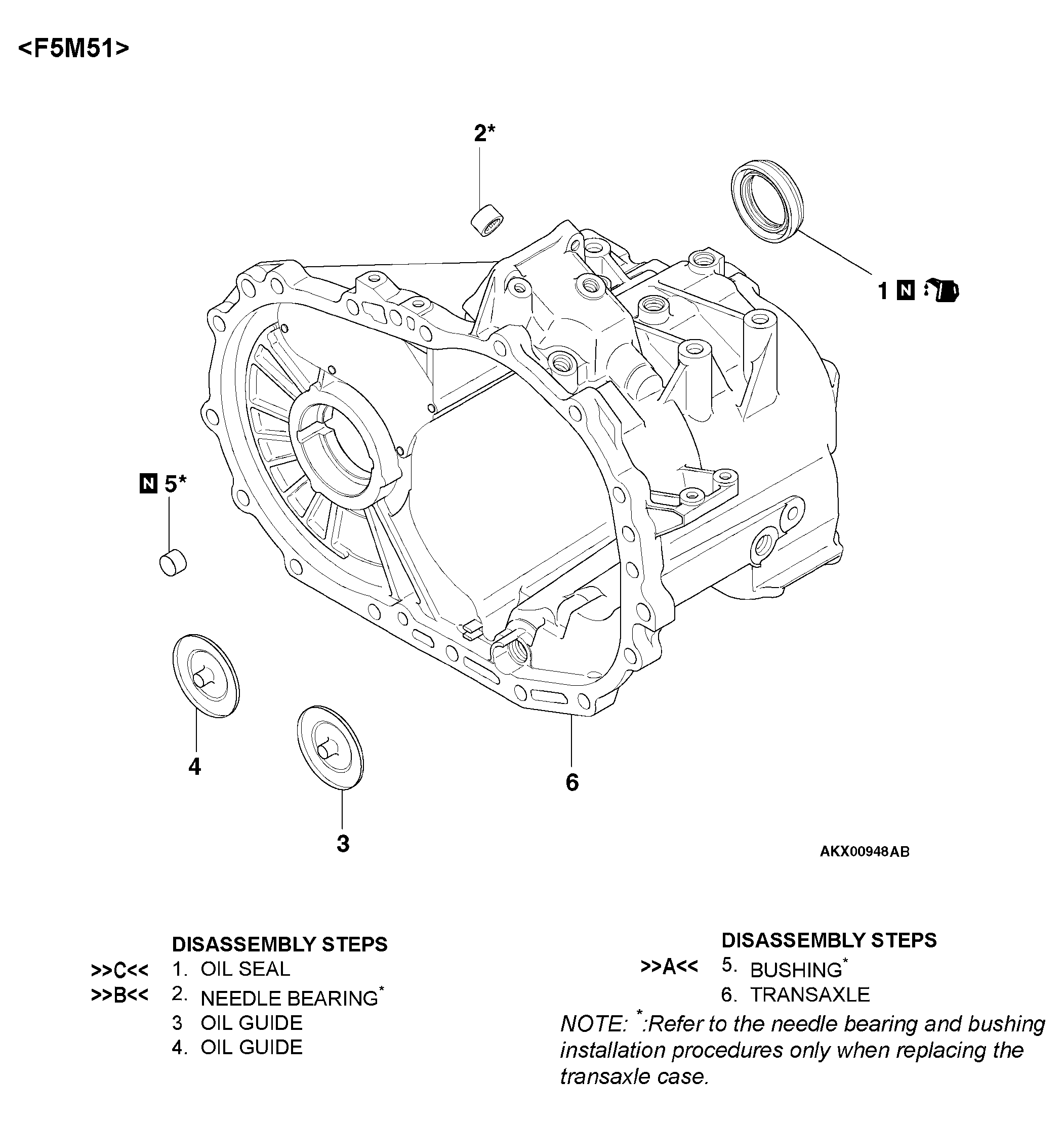

Fig 2: Disassembling/Assembling Transmission Case (F5M51)
G04541725Courtesy of DAIMLERCHRYSLER CORP.
