< F5M42 >

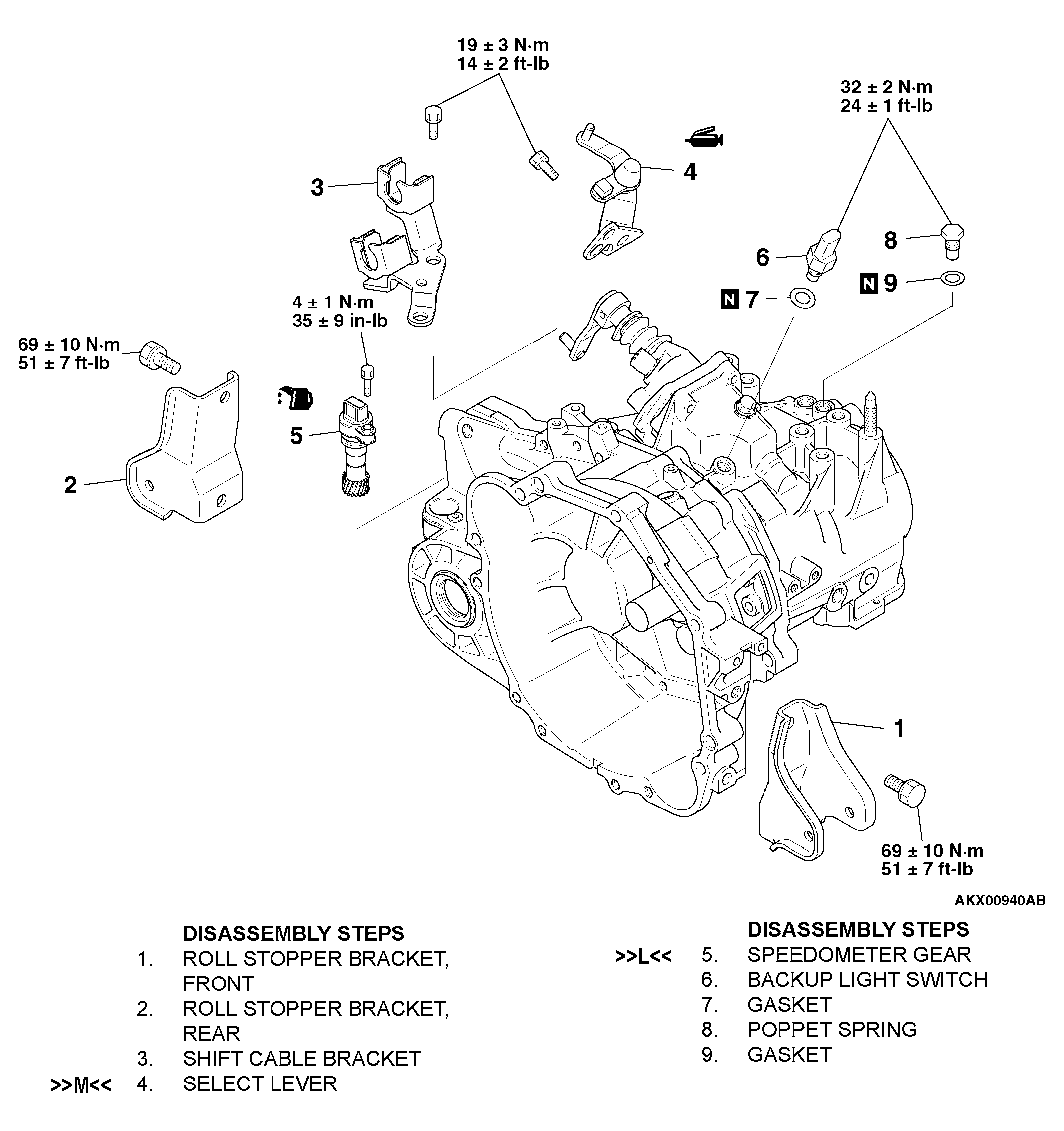

Fig 1: Disassembling/Assembling Transaxle (Transmission) (F5M42) (1 Of 3)

G04541567

Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tools:

MB990927: Installer Adapter < F5M42 >
MB990935: Installer Adapter
MB990938: Handle

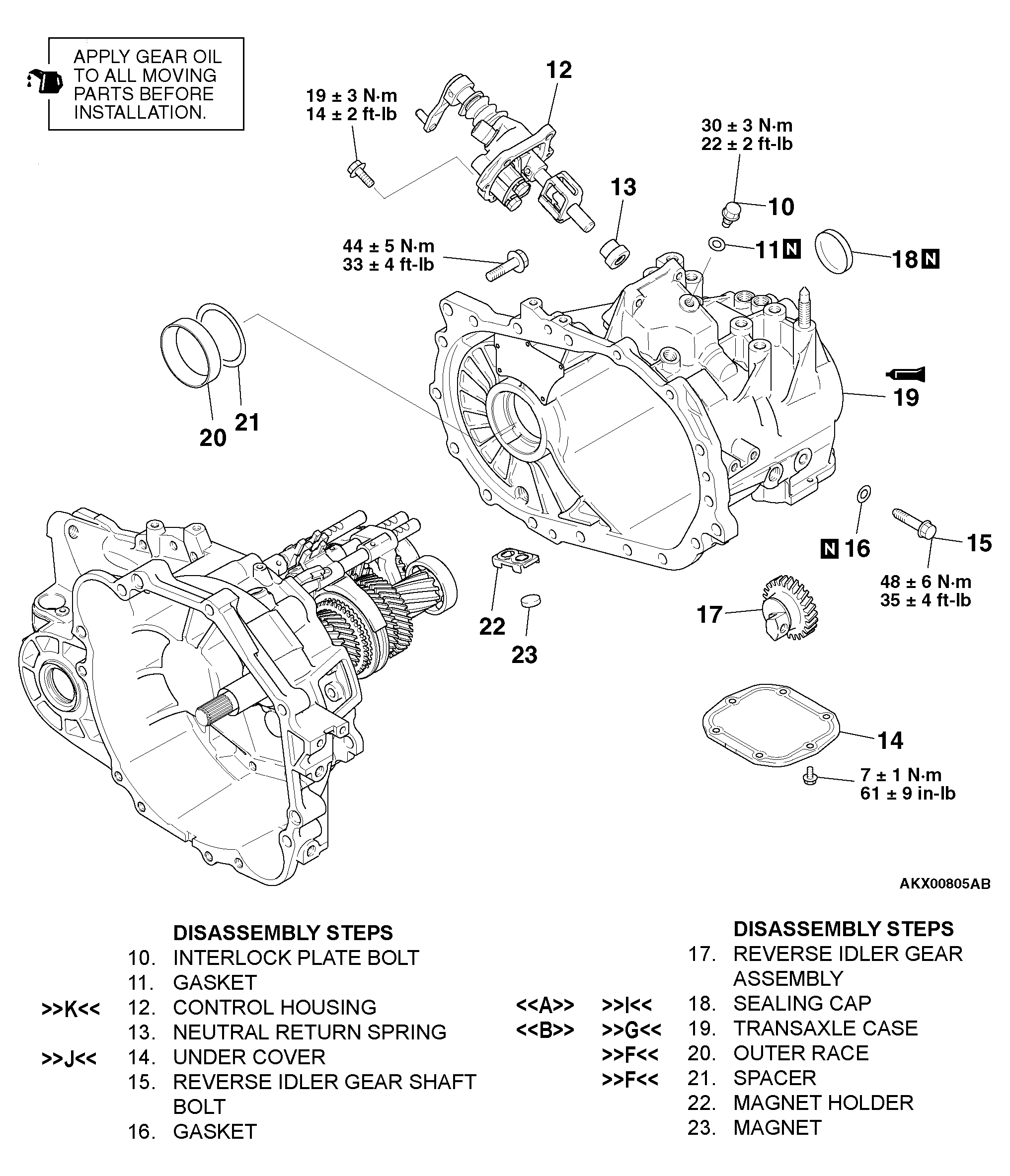

Fig 2: Disassembling/Assembling Transaxle (Transmission) (F5M42) (2 Of 3)

G04541568

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Disassembling/Assembling Transaxle (Transmission) (F5M42) (3 Of 3)

G04541569

Courtesy of DAIMLERCHRYSLER CORP.

< F5M51 >

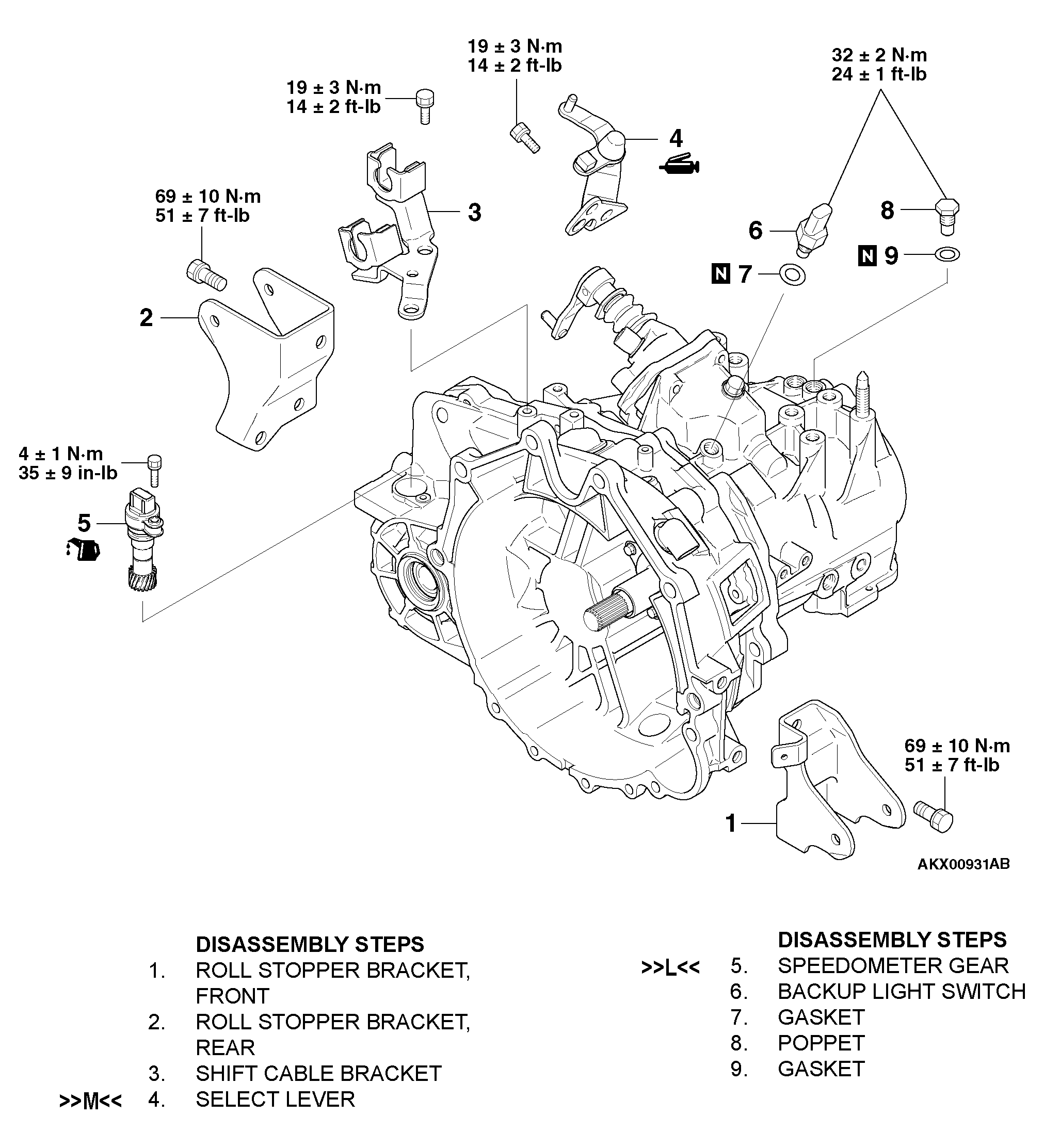

Fig 4: Disassembling/Assembling Transaxle (Transmission) (F5M51) (1 Of 3)

G04541570

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Disassembling/Assembling Transaxle (Transmission) (F5M51) (2 Of 3)

G04541571

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Disassembling/Assembling Transaxle (Transmission) (F5M51) (3 Of 3)

G04541572

Courtesy of DAIMLERCHRYSLER CORP.
