< < D >> 3RD-4TH Speed Shift Rail/3RD-4TH Speed Shift Fork/5TH Speed-Reverse Shift Rail/5TH Speed-Reverse Shift Fork Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Shift the 3rd-4th speed shift fork and 5th speed-reverse shift fork in the direction shown.

Fig 1: Shifting 3rd-4th Speed Shift Fork
Courtesy of DAIMLERCHRYSLER CORP.
Pull up on the 3rd-4th speed shift rail and 5th speed-reverse shift rail and take them out of the hole in the clutch housing.
Slide the 3rd-4th speed shift rail and 5th speed-reverse shift rail in the direction shown and remove them together with the shift forks.

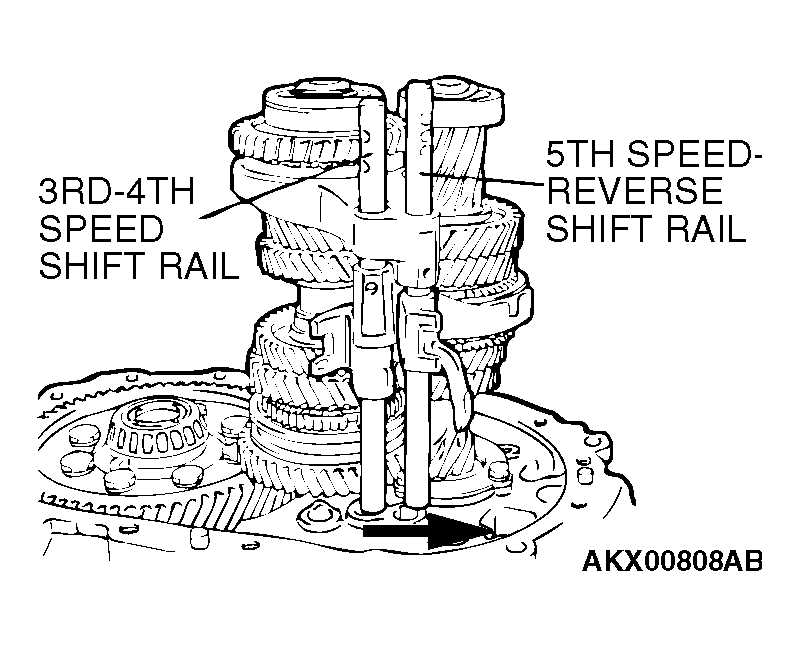

Fig 2: Sliding 3rd-4th Speed Shift Rail And 5th Speed-Reverse Shift Rail
Courtesy of DAIMLERCHRYSLER CORP.
