>> A << Output Shaft/Input Shaft Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Install the input and output shafts together.

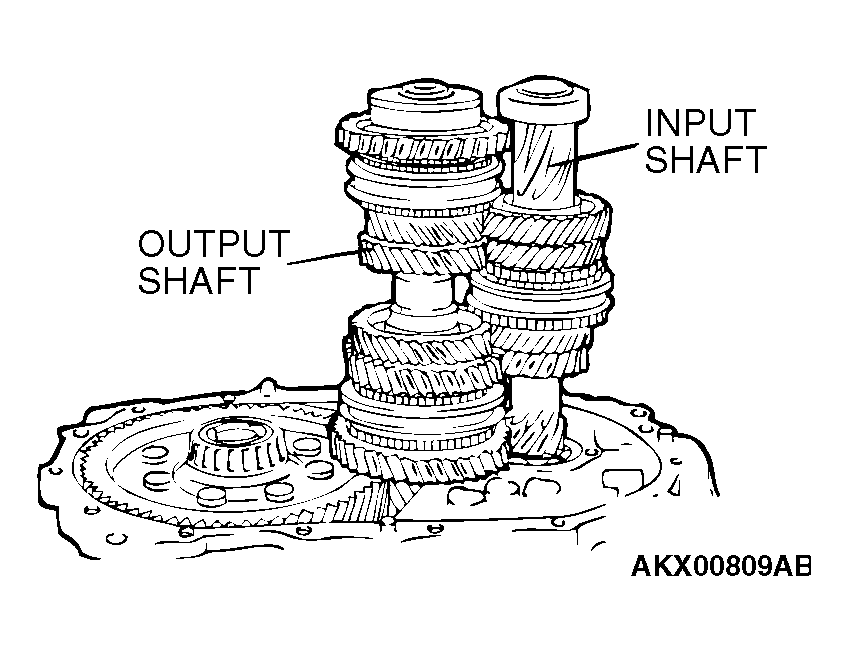

Fig 1: Installing Input And Output Shafts
G04541588Courtesy of DAIMLERCHRYSLER CORP.
