SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | REPLACED BY MILLER TOOL NUMBER | APPLICATION |
|---|---|---|---|

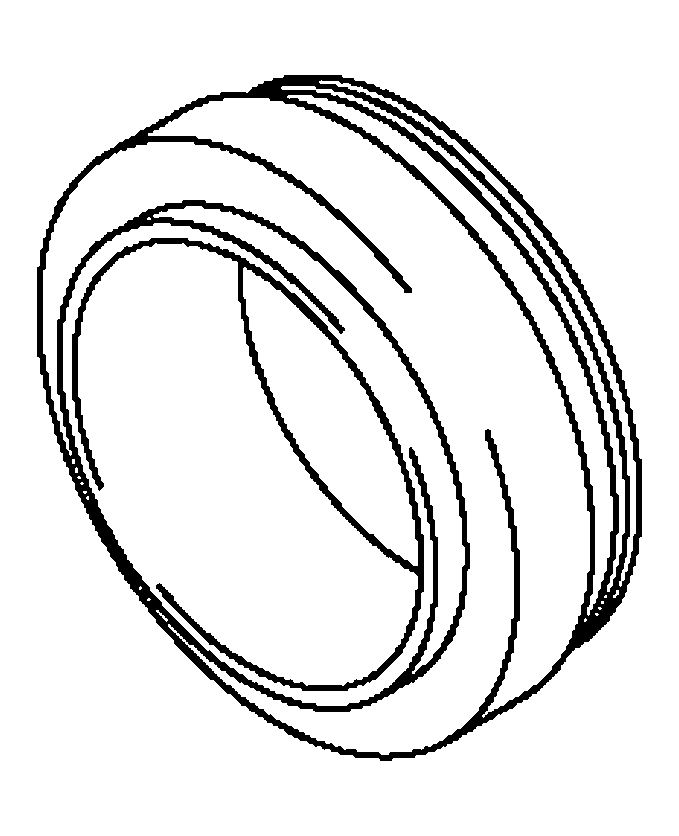

| MB990935 Installer adapter |
D-146 |
|
|
| MB990938 Handle |
C-4171 | Use with Installer adapter | |

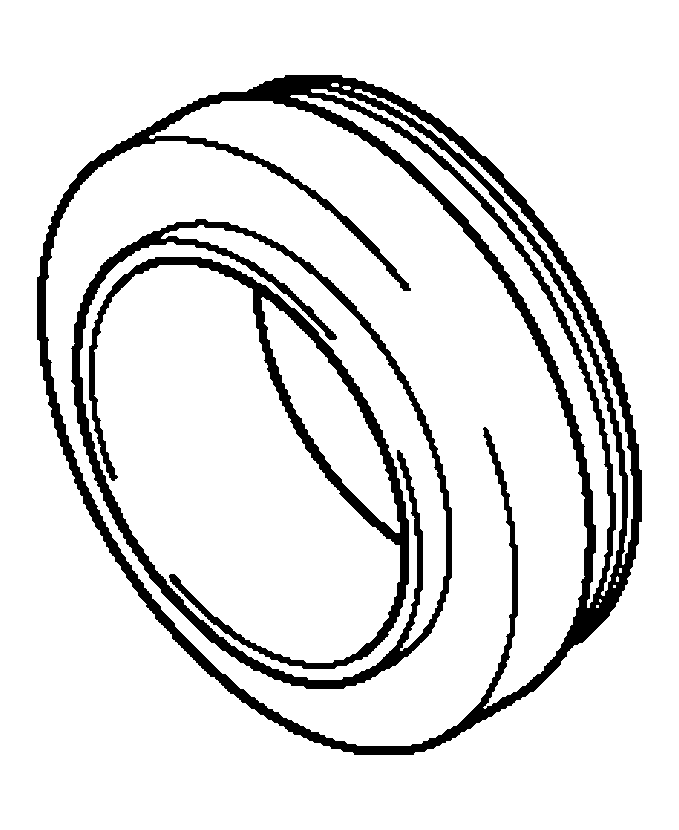

| MB990927 Installer adapter |
MD998717-1 | Installation of sealing cap < F5M42 > | |
| MD998801 Bearing remover |
P-334 | Installation and removal of gears, bearings and sleeves | |
| MD998812 Installer cap |
N/A | Use with Installer and Installer adapter | |
| MD998813 Installer-100 |
N/A | Use with Installer cap and Installer adapter | |
| MD998816 Installer adapter (30) |
MD998323 | Installation of input shaft front bearing | |
| MD998825 Installer adapter (52) |
C-3095A |
|
|
| MD998824 Installer adapter (50) |
MD998805 |
|
|
| MD998818 Installer adapter (38) |
MD998323 L-4411 |
|
|
| MD998917 Bearing remover |
8595 | Installation and removal of gears, bearing and sleeves | |
| MD998819 Installer adapter (40) |
6448 C-3717 L-4411 |
|
|
| MD998814 Installer-200 |
N/A | Use with Installer cap and Installer adapter | |
| MD998364 Camshaft oil seal installer |
N/A | Installation of gear, bearing and sleeve < F5M51 > | |
| MD998822 Installer adapter (46) |
MD998805 | Installation of 2nd speed gear sleeve and 3rd speed gear < F5M42 > | |
| MD998821 Installer adapter (44) |
6448A | Installation of 4th speed gear, 5th speed gear sleeve and 5th-reverse speed synchronizer hub < F5M51 > | |
| MD998820 Installer adapter (42) |
C-3717 | Installation of reverse gear bearing sleeve < F5M51 > | |
| MD999566 Claw |
N/A | Removal of taper roller bearing outer race | |
| MD998772 Valve spring compressor |
MD998772-A | Removal of output shaft front roller bearing outer race < F5M42 > | |
| MD998346 Bearing outer race remover |
MD998346 | Removal of output shaft front roller bearing outer race < F5M42 > | |

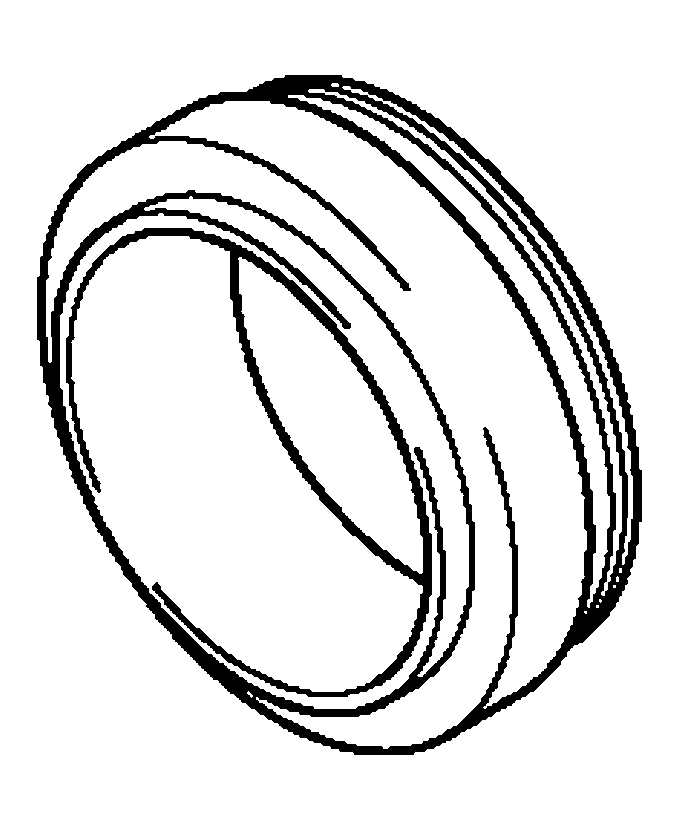

| MB990934 Installer adapter |
D-129 | Installation of output shaft front roller bearing outer race < F5M42 > | |
| MB991445 Bushing remover and installer base |
D-146 | Installation of differential case taper roller bearing outer race < F5M51 > | |
| MD998800 Oil seal installer |
MD998325 | Installation of differential oil seal < F5M51 > | |
| MB990926 Installer adapter |
MD998323 C-4470-1 |
Installation of clutch housing input shaft oil seal < F5M42 > | |
| MB990928 Installer adapter |
C-4470-1 | Installation of input shaft oil seal < F5M51 > | |
| MD998325 Differential oil seal installer |
MD998325 | Installation of differential oil seal < F5M42 > |
