Disassembly And Assembly

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

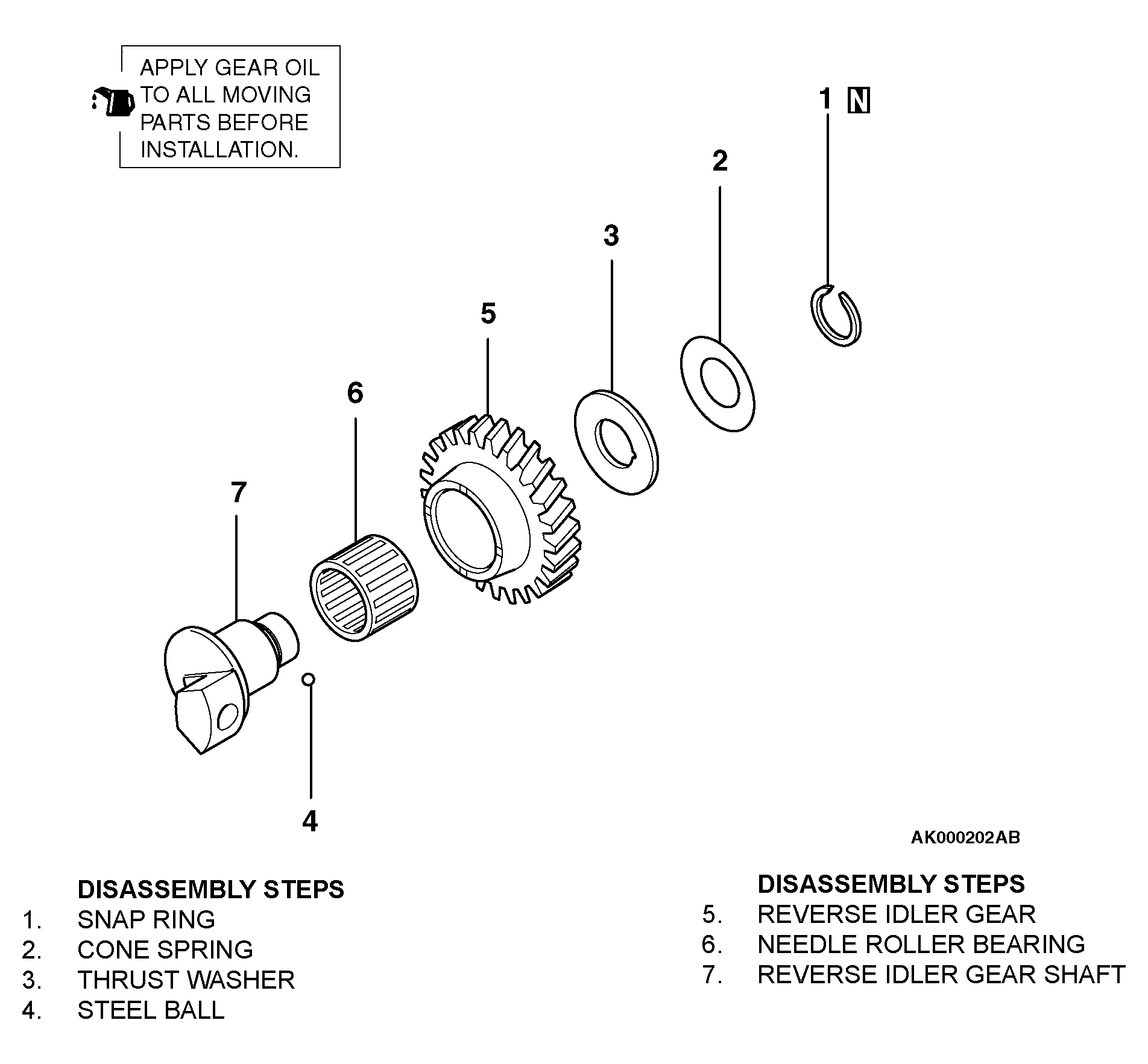

Fig 1: Disassembling/Assembling Reverse Idler Gear

Courtesy of DAIMLERCHRYSLER CORP.
