Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

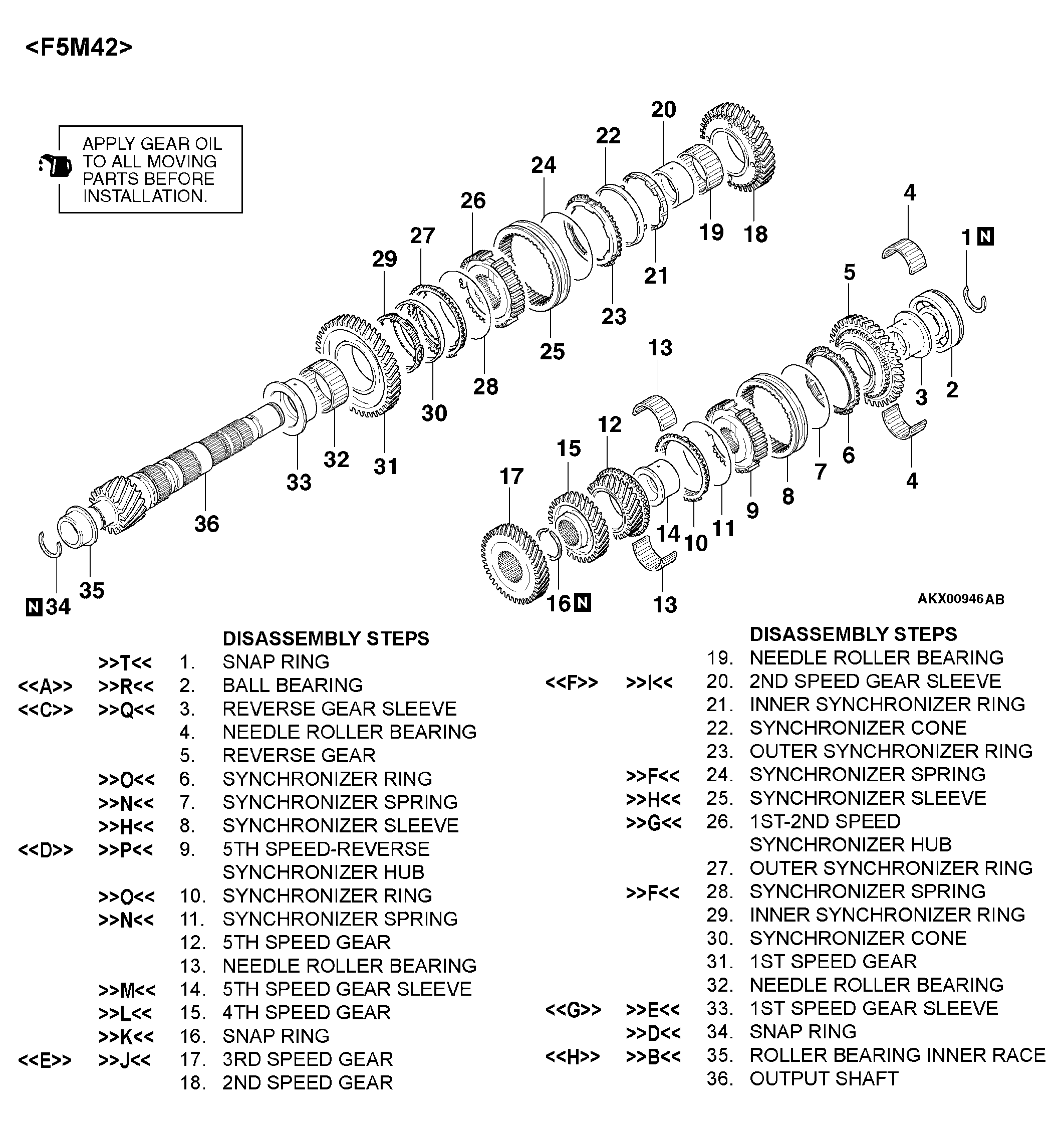

Fig 1: Disassembling/Assembling Output Shaft (F5M42)

Courtesy of DAIMLERCHRYSLER CORP.

Required Special Tools:

MD998364: Camshaft Oil Seal Installer < F5M51 >
MD998801: Bearing Remover
MD998812: Installer Cap
MD998813: Installer - 100 < F5M42 >
MD998814: Installer - 200
MD998818: Installer Adapter (38) < F5M42 >
MD998819: Installer Adapter (40)
MD998820: Installer Adapter (42) < F5M51 >
MD998821: Installer Adapter (44) < F5M51 >
MD998822: Installer Adapter (46) < F5M42 >
MD998824: Installer Adapter (50) < F5M51 >
MD998825: Installer Adapter (52) < F5M42 >
MD998917: Bearing Remover

< F5M51 >

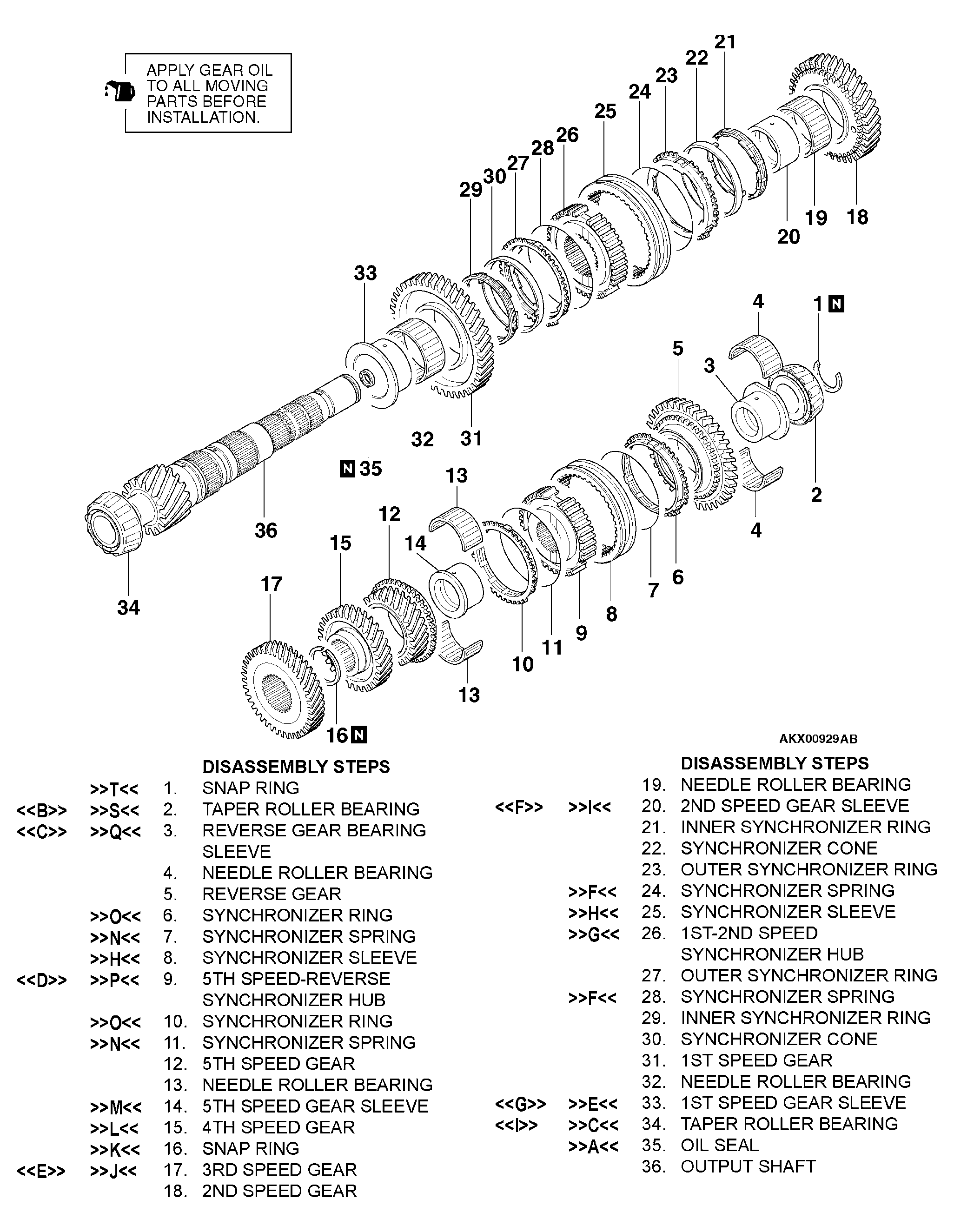

Fig 2: Disassembling/Assembling Output Shaft (F5M51)

Courtesy of DAIMLERCHRYSLER CORP.
