< < D >> 5TH Speed-Reverse Synchronizer Hub Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using special tool MD998801, support the 4th speed gear, and then set them on the press.
  2. Push down on the output shaft with the press and remove the 5th speed-reverse synchronizer hub.

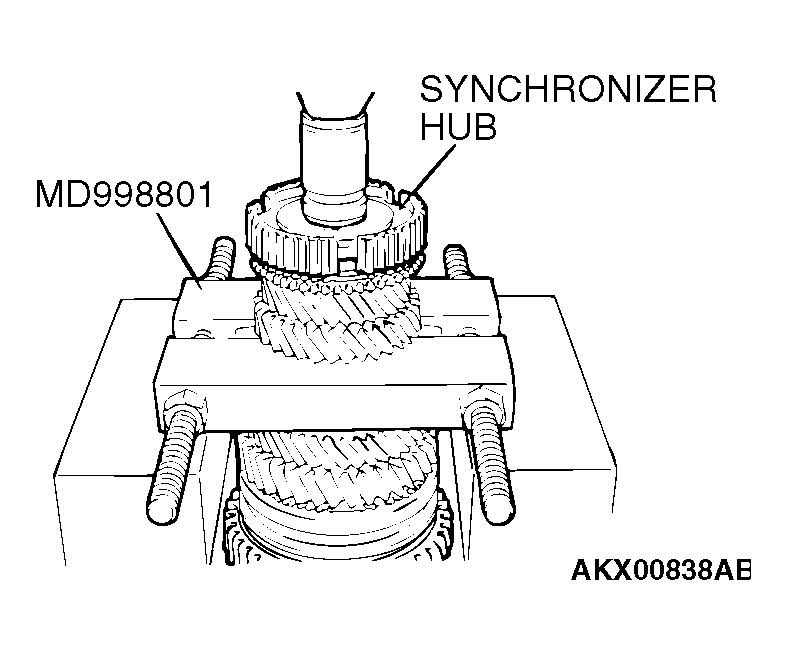

    Fig 1: Removing 5th Speed-Reverse Synchronizer Hub
    G04541643Courtesy of DAIMLERCHRYSLER CORP.
