< < C >> Reverse Gear Bearing Sleeve Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using special tool MD998801, support the reverse gear, and then set them on the press.
  2. Push down on the output shaft with the press and remove the reverse gear bearing sleeve.

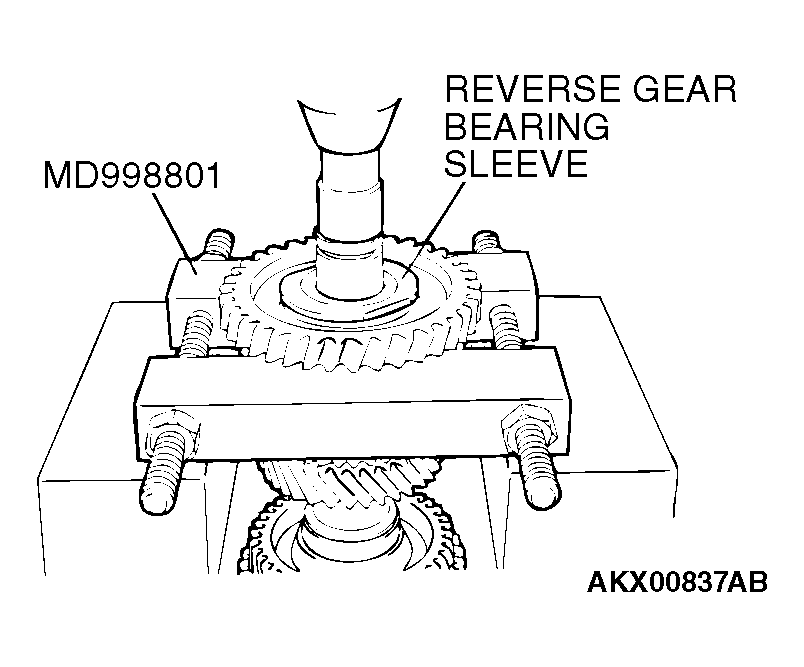

    Fig 1: Supporting Reverse Gear
    G04541642Courtesy of DAIMLERCHRYSLER CORP.
