>> Q << Reverse Gear Sleeve Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the synchronizer ring, reverse gear and needle roller bearing have been correctly installed.
Using special tools MD998812, MD998818 < F5M42 >, MD998820 < F5M51 > and MD998364 < F5M51 >, press fit the reverse gear sleeve. Make sure that the reverse gear and the synchronizer ring can rotate freely during the pressing process.

Fig 1: Installing Synchronizer Ring, Reverse Gear And Needle Roller Bearing (F5M42)
Courtesy of DAIMLERCHRYSLER CORP.

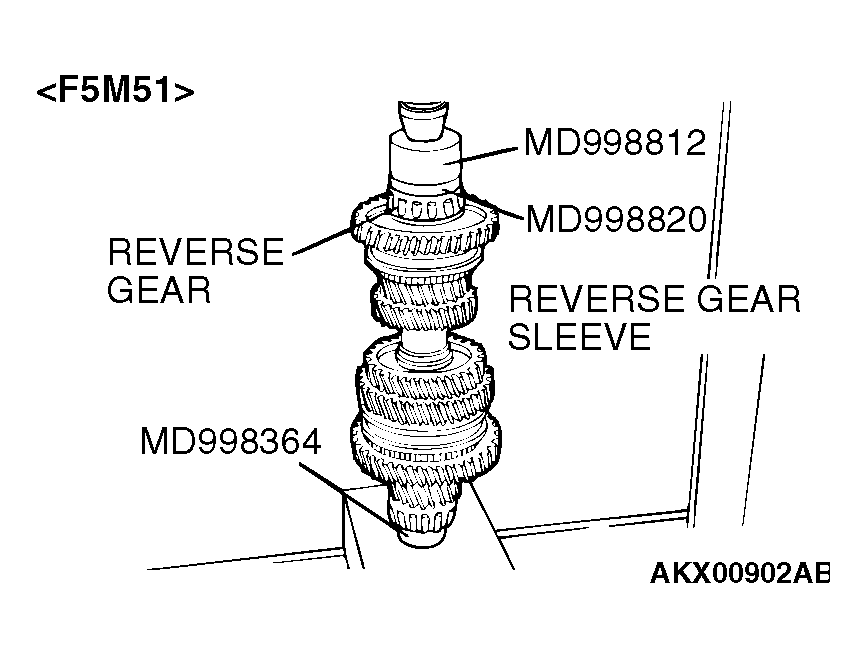

Fig 2: Installing Synchronizer Ring, Reverse Gear And Needle Roller Bearing (F5M51)
Courtesy of DAIMLERCHRYSLER CORP.
