>> P << 5TH Speed-Reverse Synchronizer Hub Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the output shaft on the press support stand.
  2. Make sure that the synchronizer ring is fitted correctly on the cone of the 5th speed gear.
  3. Check that the 5th speed-reverse synchronizer hub is oriented correctly for installation, and fit it on the output shaft.
    Fig 1: Identifying Installation Direction
    G04541674Courtesy of DAIMLERCHRYSLER CORP.
  4. Using special tools MD98812, MD998813, MD998819 < F5M42 >, MD998821 < F5M51 > and MD998364 < F5M51 >, press install the 5th speed-reverse synchronizer hub with the press.
  5. Make sure that the synchronizer ring on the 5th speed gear side can rotate freely.
    Fig 2: Installing 5th Speed-Reverse Synchronizer Hub (F5M42)
    G04541675Courtesy of DAIMLERCHRYSLER CORP.

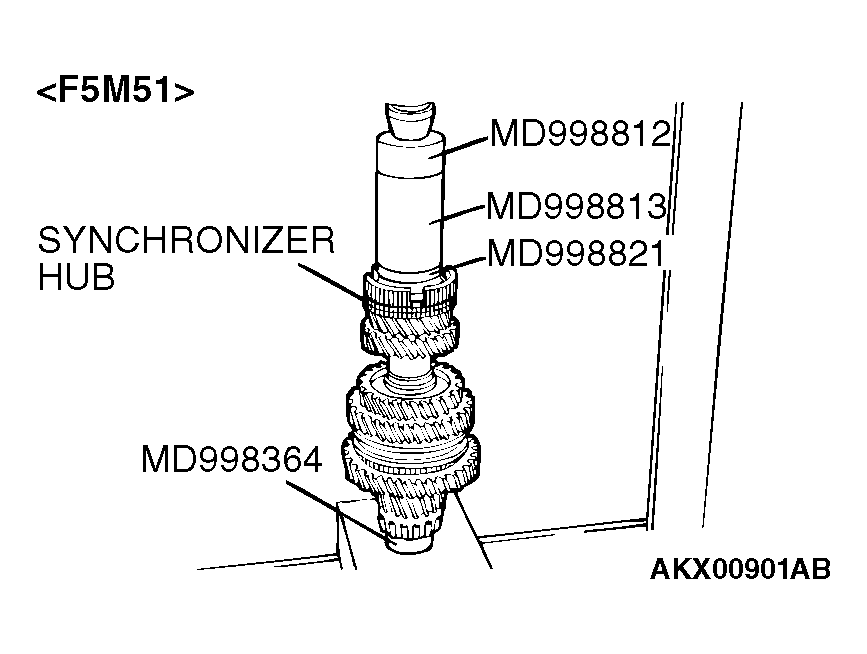

    Fig 3: Installing 5th Speed-Reverse Synchronizer Hub (F5M51)
    G04541676Courtesy of DAIMLERCHRYSLER CORP.
