>> M << 5TH Speed Gear Sleeve Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Using special tools MD998812, MD998813, MD998819 < F5M42 >, MD998821 < F5M51 > and MD998364 < F5M51 >, press install the 5th speed gear sleeve onto the output shaft.

Fig 1: Installing 5th Speed Gear Sleeve Onto Output Shaft (F5M42)

Courtesy of DAIMLERCHRYSLER CORP.

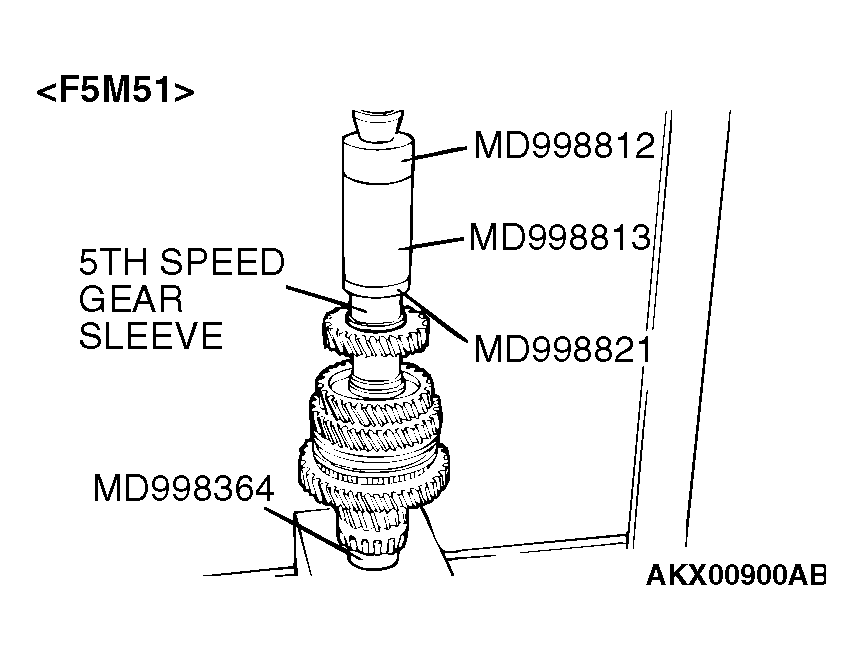

Fig 2: Installing 5th Speed Gear Sleeve Onto Output Shaft (F5M51)

Courtesy of DAIMLERCHRYSLER CORP.
