< < B >> Thrust Plate Stopper Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Using a screwdriver, pry up the position shown in the illustration and remove the thrust plate stopper.

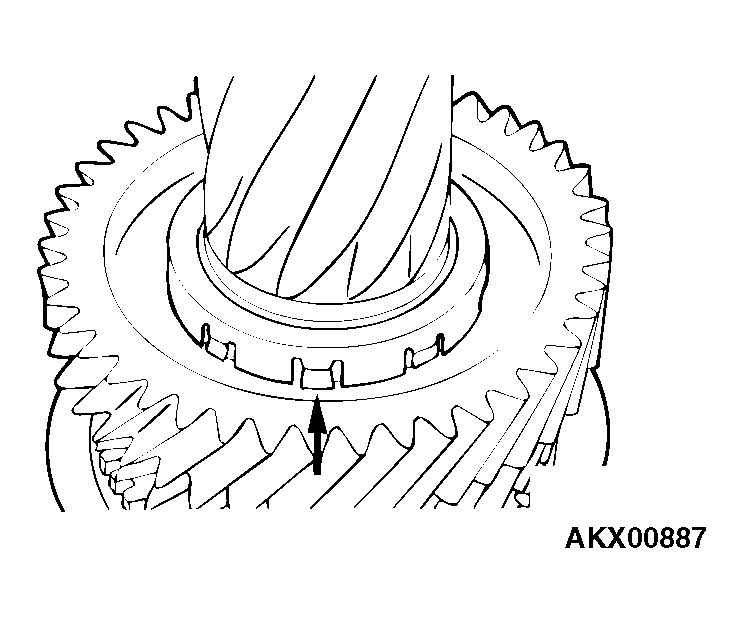

Fig 1: Removing Thrust Plate Stopper
G04541610Courtesy of DAIMLERCHRYSLER CORP.
