>> J << Thrust Plate Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thickest thrust plates that can be fitted in the groove of input shaft. Install the thrust plate so the surface stamped with the identification mark is facing up.
  2. Make sure that the 5th speed gear end play meets the standard value.

    Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

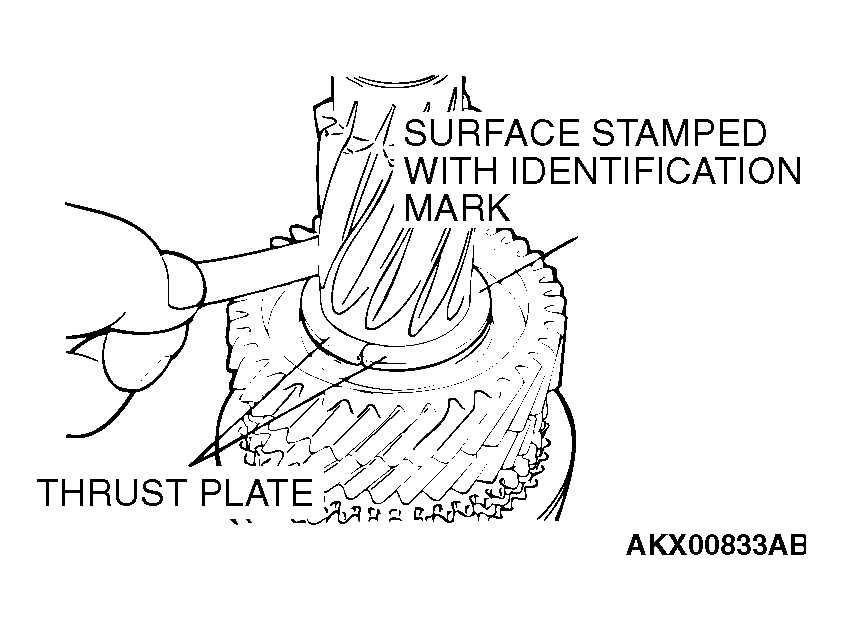

    Fig 1: Installing Thickest Thrust Plates
    G04541627Courtesy of DAIMLERCHRYSLER CORP.
