>> H << 4TH Speed Gear Sleeve Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812, MD998813 and MD998824 < F5M42 > or MD998825 < F5M51 >, press install the 4th speed gear sleeve with the press.
    Fig 1: Installing 4th Speed Gear Sleeve With Press (F5M42)
    G04541624Courtesy of DAIMLERCHRYSLER CORP.

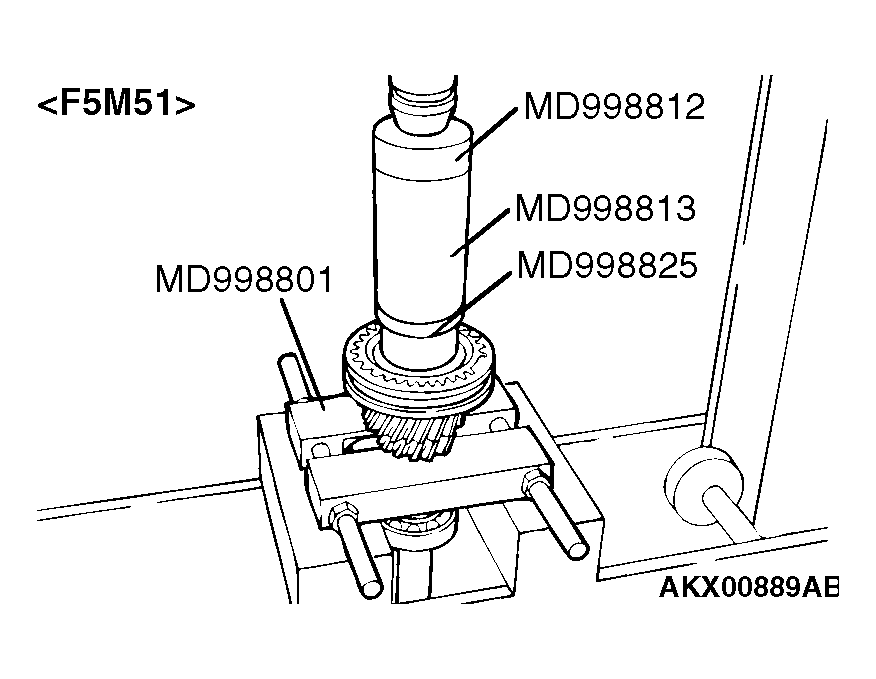

    Fig 2: Installing 4th Speed Gear Sleeve With Press (F5M51)
    G04541625Courtesy of DAIMLERCHRYSLER CORP.
