>> D << Differential Drive Gear Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a sealant (3M(tm) AAD Part Number 8730 or 8731 or equivalent) to the entire threaded portion of the bolt.
    Fig 1: Applying Sealant
    G04541740Courtesy of DAIMLERCHRYSLER CORP.
  2. Tighten to the specified torque in the illustrated sequence.

    Tightening torque: 132 +/- 5 N.m (98 +/- 4 ft-lb)

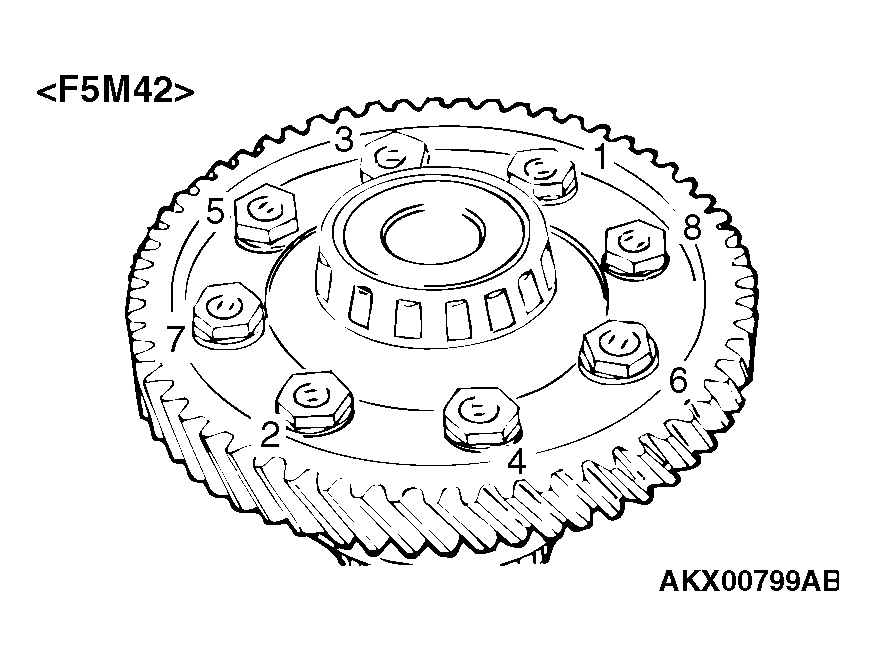

    Fig 2: Tightening Specified Torque (F5M42)
    G04541741Courtesy of DAIMLERCHRYSLER CORP.

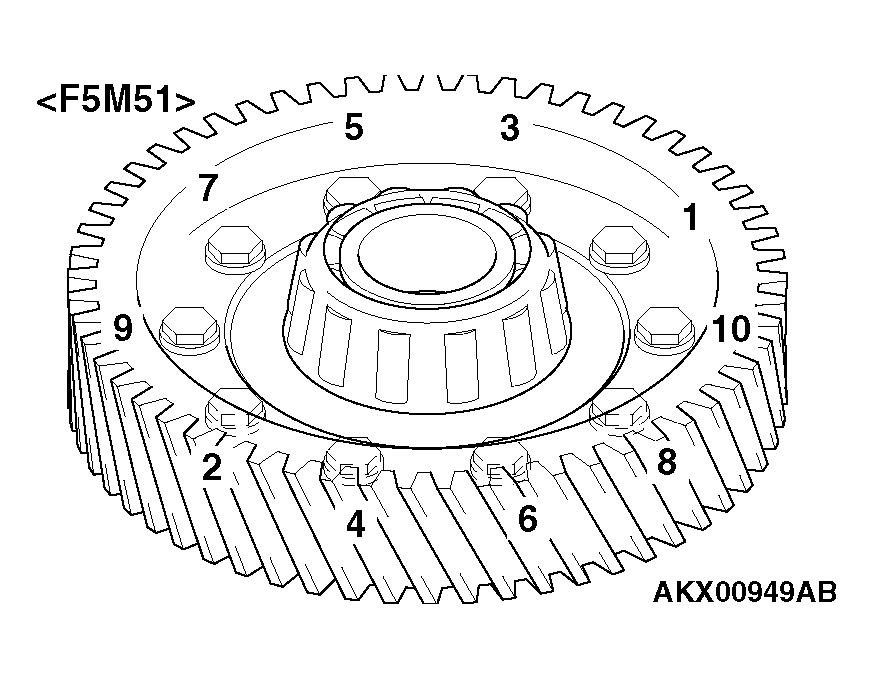

    Fig 3: Tightening Specified Torque (F5M51)
    G04541742Courtesy of DAIMLERCHRYSLER CORP.
