>> C << Air Breather Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant (3M(tm) AAD Part Number 8001 or equivalent) to the inserting portion of air breather.
    Fig 1: Applying Sealant To Inserting Portion Of Air Breather
    G04541699Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the air breather so that the embossed mark is in the direction shown in the figure.

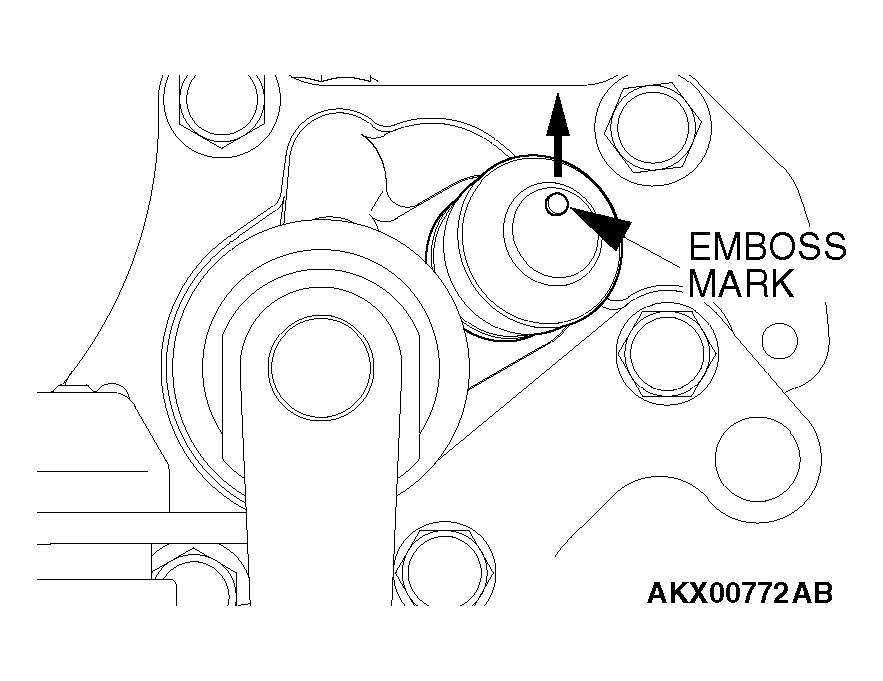

    Fig 2: Identifying Embossed Mark
    G04541700Courtesy of DAIMLERCHRYSLER CORP.
