< < B >> Outer Race Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set special tools MD998772 and MD998346 as indicated in the figure.
  2. Turn the nut on special tool MD998346 to pull up on the tool and take out the outer race.

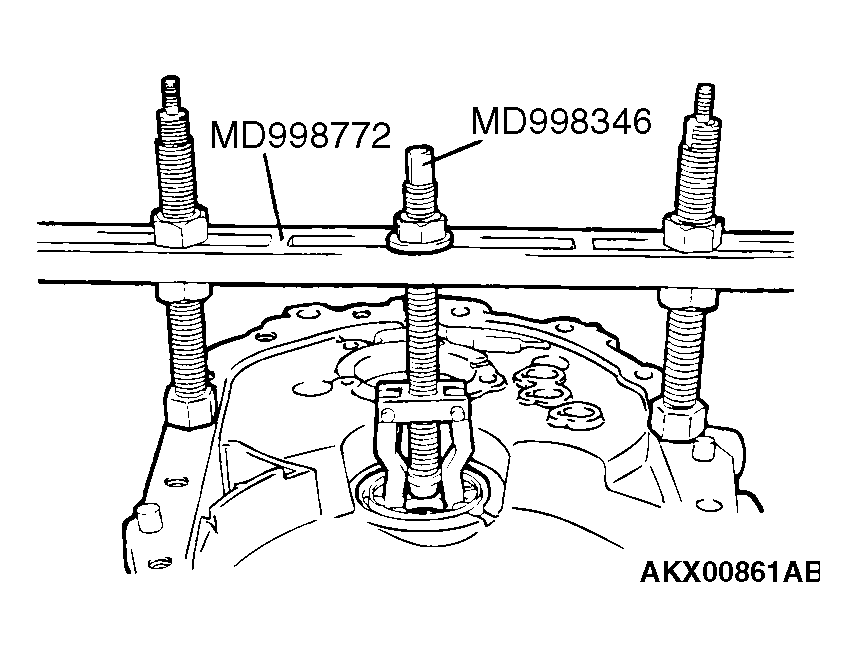

    Fig 1: Removing Outer Race
    G04541708Courtesy of DAIMLERCHRYSLER CORP.
