>> A << Transaxle Assembly Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: On the pull-type clutch, do not roll the transaxle assembly when installing it to the engine. If the transaxle assembly is rolled, the wedge collar and the wire ring will be deformed, causing a clutch malfunction due to improper engagement of the wedge collar and the wire ring.

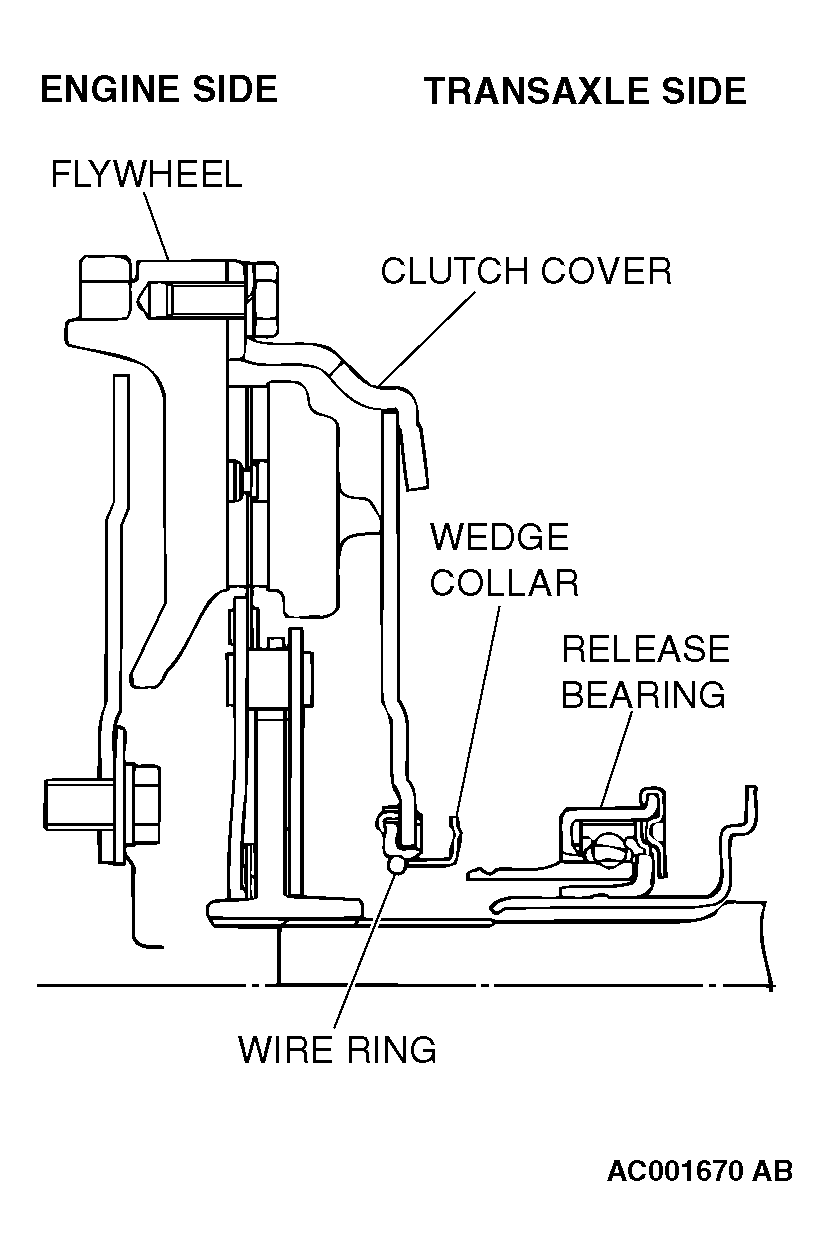

Fig 1: Locating Wedge Collar And Wire Ring
G04541536Courtesy of DAIMLERCHRYSLER CORPORATION
