Steering Angle Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value:

    STEERING ANGLE SPECIFICATION

    ITEM SPECIFICATION
    2.4L ENGINE 3.0L ENGINE
    Inside wheel 31°12' +/- 2°00' 31°00' +/- 2°00'
    Outside wheel (reference) 30°24' 27°00'
    Fig 1: Placing Front Wheel On Turning Radius Gauge
    G04539217Courtesy of DAIMLERCHRYSLER CORPORATION
  2. If the steering angle is not within the standard value, adjust the toe-in.

    Standard value: 0 +/- 3 mm (0 +/- 0.12 inch)

  3. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
    NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.

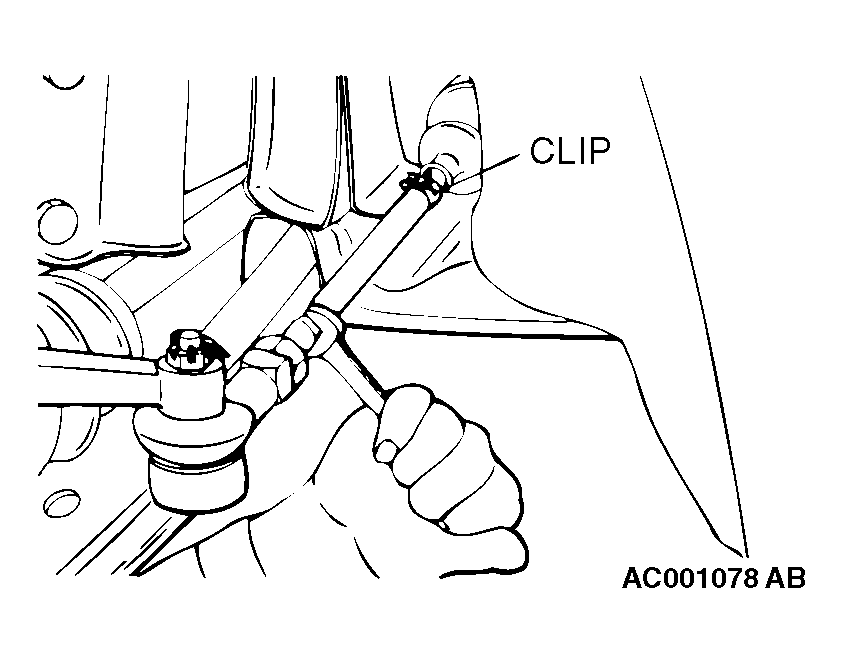

    Fig 2: Adjusting Steering Angle
    G04539218Courtesy of DAIMLERCHRYSLER CORPORATION
