Construction Diagram

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

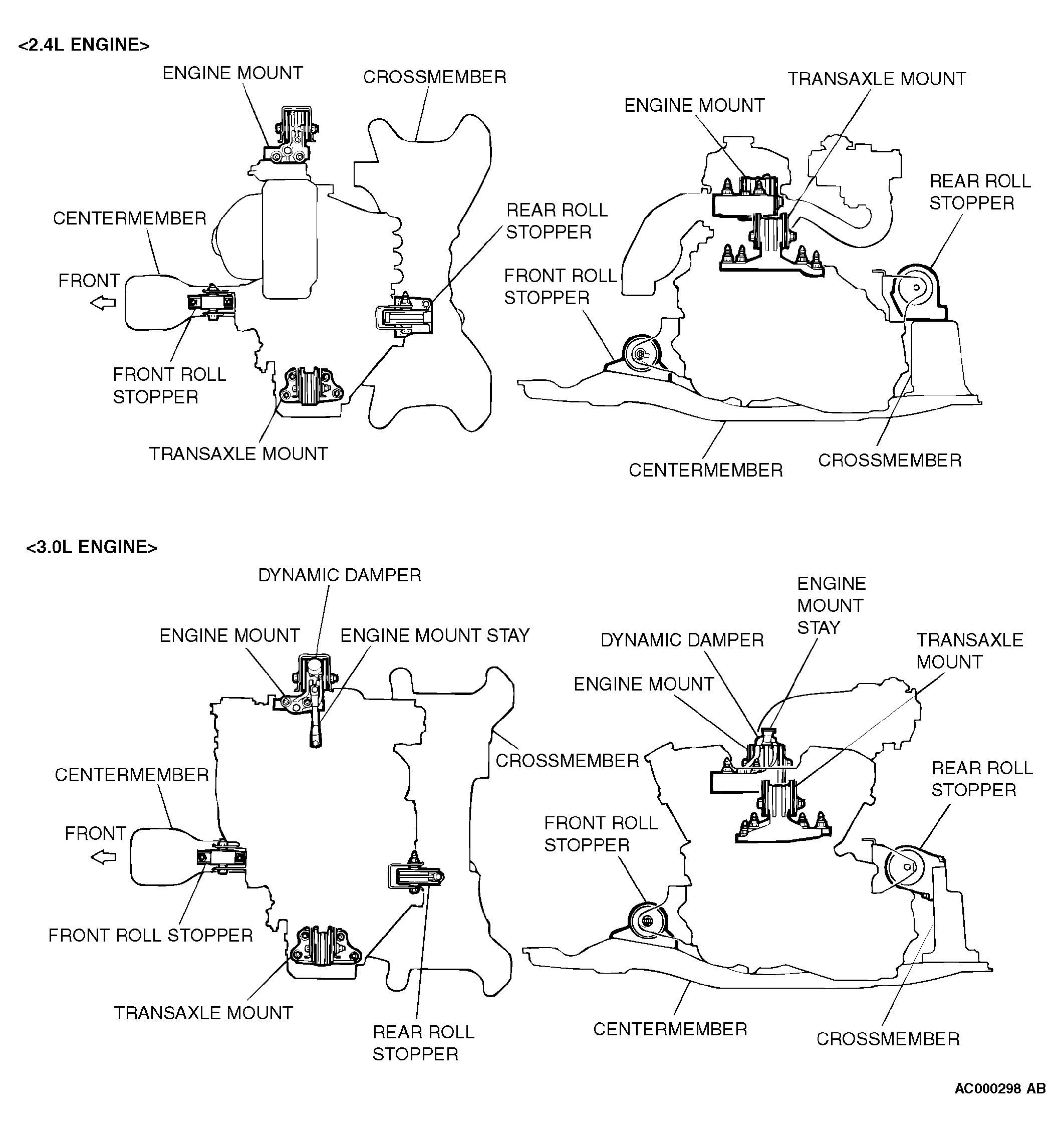

Fig 1: Power Plant Mount Construction Diagram
G04539158Courtesy of DAIMLERCHRYSLER CORP.
