>> C << Rocker Arm, Rocker Arm Shaft And Rocker Shaft Spring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Rotate the camshaft until the dowel pin on its front end is located as shown in the illustration.
NOTE: Placing the camshaft in the illustrated position minimizes the amount of cam lift, making it easier to install the rocker arm and shaft assemblies.
Install the exhaust side rocker arm "C" and shaft assembly to the cylinder head.
Install the inlet side rocker arms "A" and "B" and shaft assembly to the cylinder head.

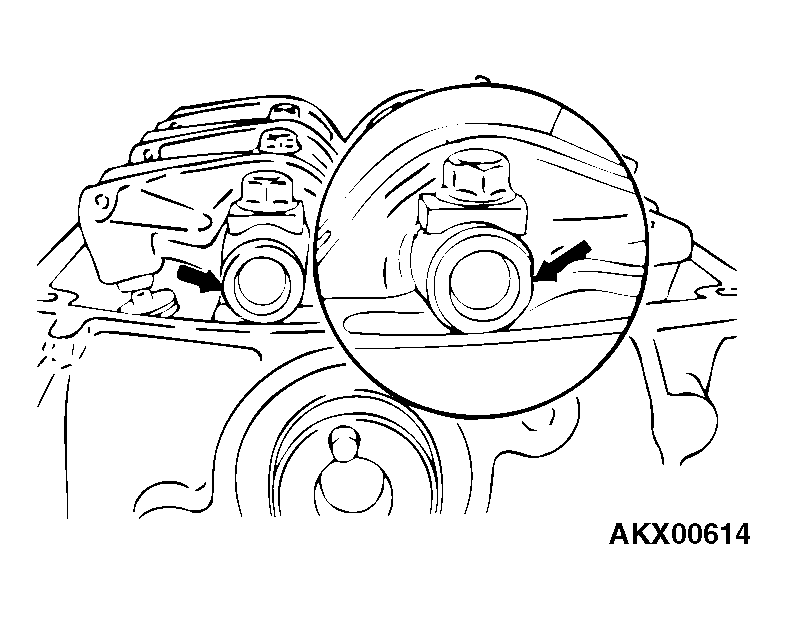

Fig 1: Rotating Camshaft
Courtesy of DAIMLERCHRYSLER CORPORATION
Insert the rocker shaft spring to the intake side rocker arm shaft as illustrated.

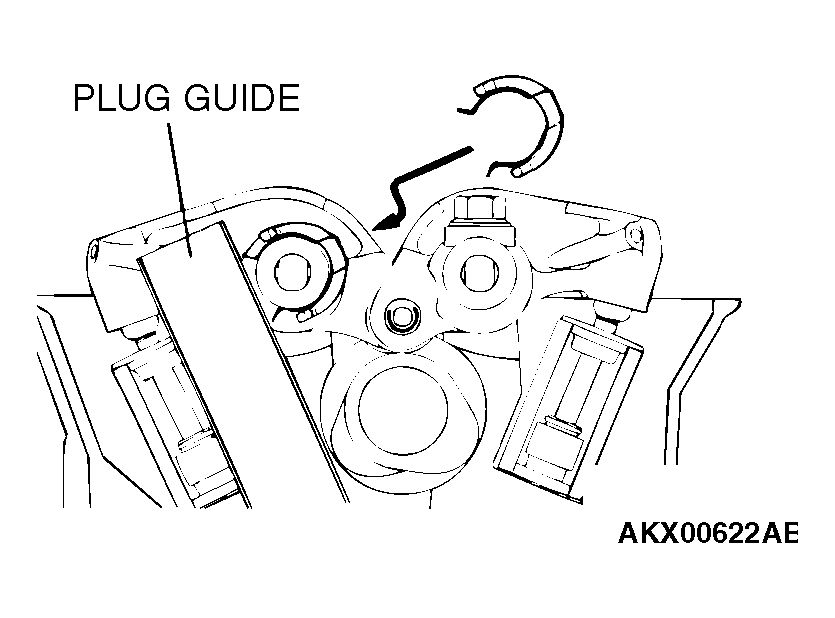

Fig 2: Identifying Plug Guide
Courtesy of DAIMLERCHRYSLER CORPORATION
Make sure that the notch in the end of the rocker arm shaft is facing the direction as shown.

Fig 3: Identifying Notch In End Of Rocker Arm Shaft
Courtesy of DAIMLERCHRYSLER CORPORATION
