Rocker Arms And Camshaft: Inspection: Camshaft
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

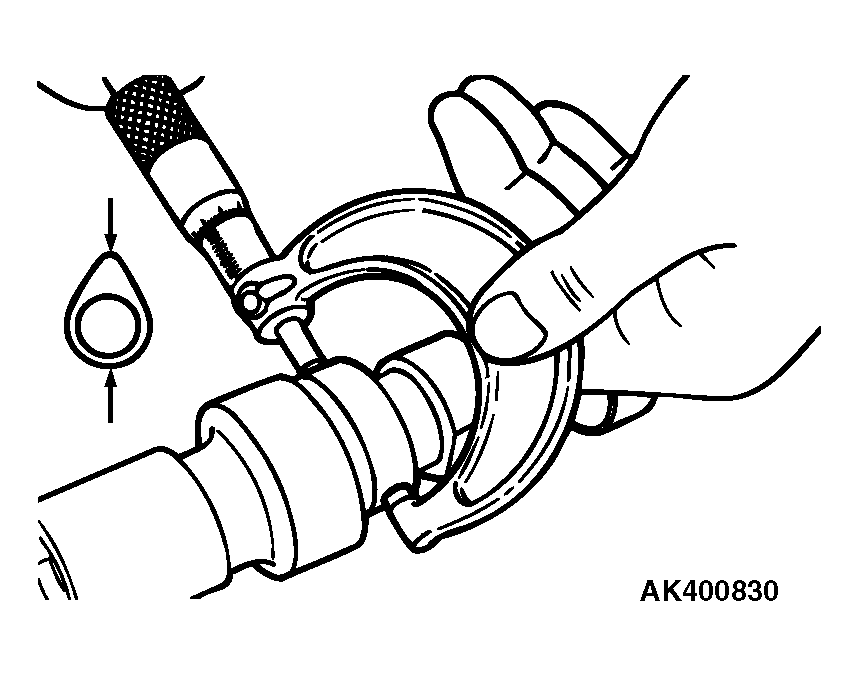

Measure the cam height. If it is below the limit, replace the camshaft.
Standard value:
< Intake > 37.71 mm (1.485 inches)
< Exhaust > 37.14 mm (1.462 inches)
Minimum limit:
< Intake > 37.21 mm (1.465 inches)
< Exhaust > 36.64 mm (1.443 inches)
