>> F << Connecting Rod Cap Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Mate the correct bearing cap with the correct connecting rod by checking with the alignment marks marked during disassembly. If a new connecting rod is used which has no alignment mark, position the notches for locking the bearing on the same side.

Fig 1: Identifying Notches And Cylinder
Courtesy of DAIMLERCHRYSLER CORPORATION
Check if the thrust clearance in the connecting rod big end is correct.
Standard value: 0.10 - 0.25 mm (0.004 - 0.009 inch)

Limit: 0.4 mm (0.02 inch)

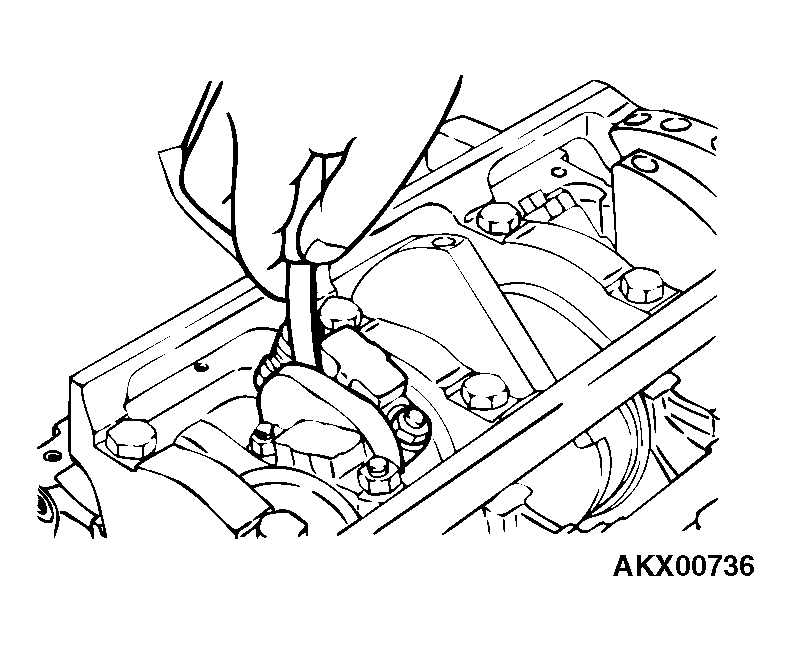

Fig 2: Checking Thrust Clearance In Connecting Rod Big End
Courtesy of DAIMLERCHRYSLER CORPORATION
