>> D << Connecting Rod Bearing Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

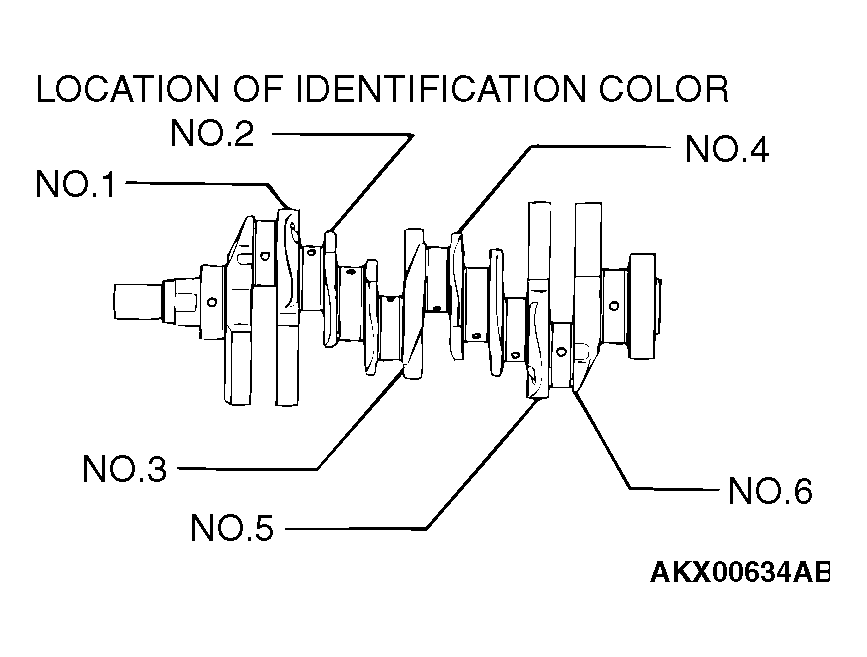

- Measure the crankshaft pin diameter and confirm its classification from the following table. In the case of a crankshaft supplied as a service part, identification colors/marks of its pins are painted/stamped at the positions shown in the illustration.DESCRIPTION CHART
CRANKSHAFT PIN OUTSIDE DIAMETER CONNECTING ROD BEARING IDENTIFICATION COLOR SIZE mm (in) IDENTIFICATION COLOR IDENTIFICATION COLOR Yellow 49.995 - 50.000
(1.9683 - 1.9685)White Yellow None Yellow Yellow None None 49.985 - 49.995
(1.9679 - 1.9683)White Yellow None None Yellow Blue White 49.980 - 49.985
(1.9678 - 1.9679)White None None Blue Yellow Blue Blue 49.976 - 49.980
(1.9676 - 1.9678)White Blue None Blue Yellow Red - If the crankshaft pin outside diameter Identification color is "yellow" and the connecting rod Identification color is "yellow," for example, select a bearing whose Identification color is "none." If there is no Identification color paint on the crankshaft, measure the pin outside diameter and select a bearing appropriate for the measured value.
- Install the selected bearing in the big end and in the cap of the connecting rod.
