>> F << Drain Plug Gasket Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the gasket is installed in the wrong direction, oil leaks will be occurred.

Install the drain plug gasket in the direction shown.

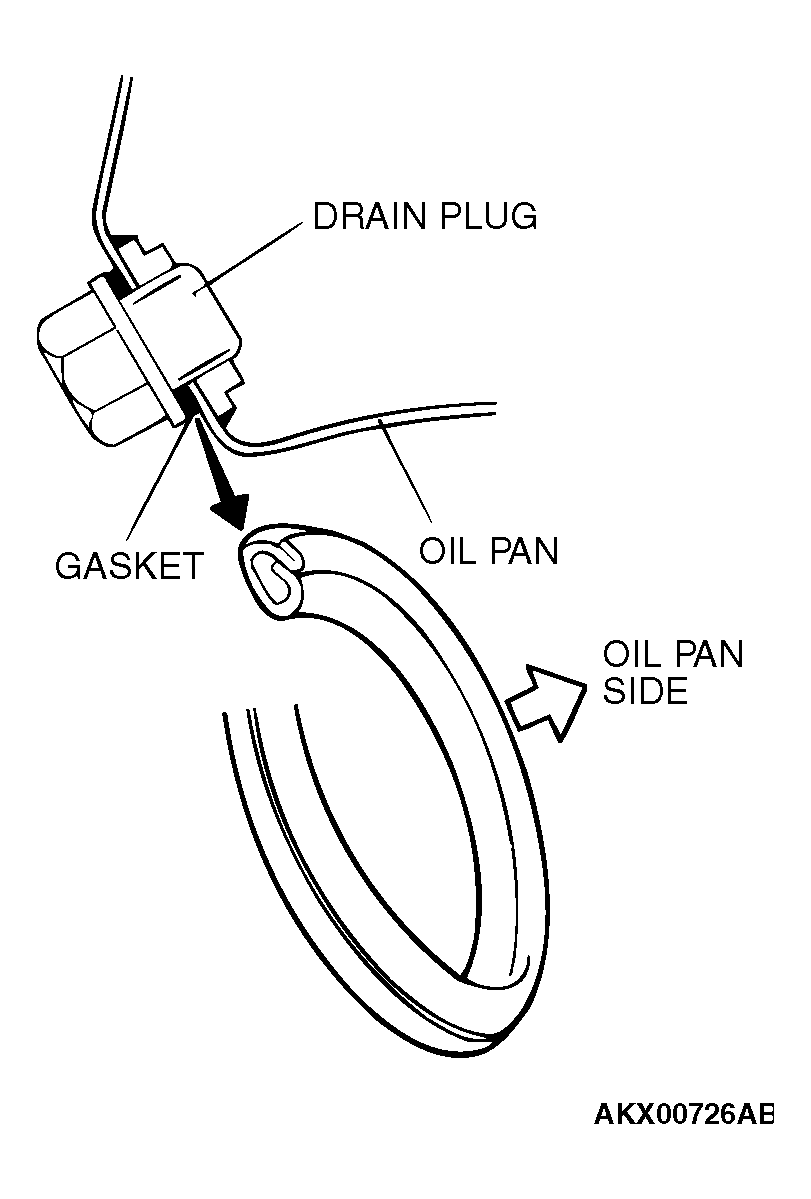

Fig 1: Installing Drain Plug Gasket In Direction Shown
G04538468Courtesy of DAIMLERCHRYSLER CORPORATION
