>> E << Oil Pan, Lower Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean both gasket surfaces of the upper and lower oil pans.
  2. Apply a 4 mm (0.2 inch) diameter bead of sealant (MITSUBISHI Genuine Parts number MD970389 or equivalent) to the lower oil pan.

    Apply sealant as indicted by the broken line in the illustration; the grooves must be traced and the bolt holes must be surrounded with a bead of sealant.

  3. Install the lower oil pan to the upper oil pan.
    NOTE: Be sure to install the oil pan quickly while the sealant is wet (within 15 minutes).

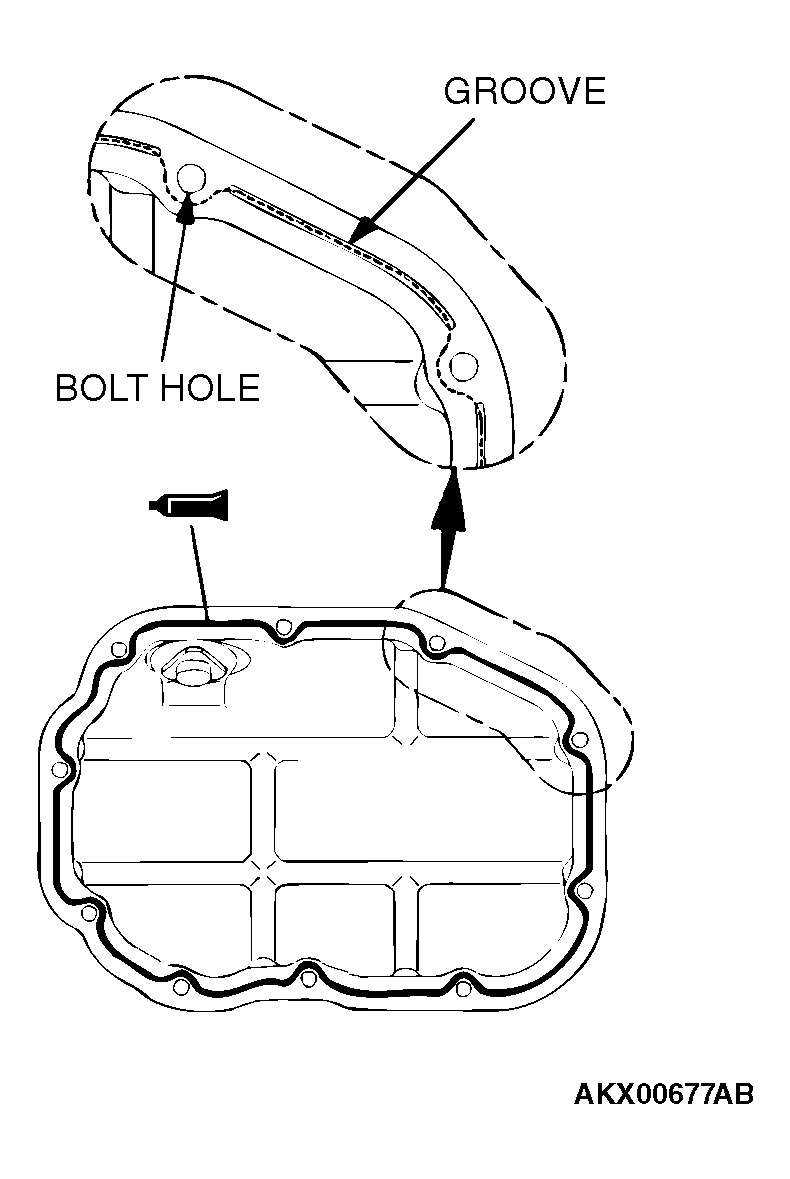

    Fig 1: Applying Sealing
    G04538466Courtesy of DAIMLERCHRYSLER CORPORATION
  4. Tighten the lower oil pan bolts in the sequence shown.

    Tightening torque: 11 +/- 1 N.m (95 +/- 9 in-lb)

    NOTE: After installation, keep the sealed area away from oil for approximately one hour.
    Fig 2: Tightening Lower Oil Pan Bolts In Sequence Shown
    G04538467Courtesy of DAIMLERCHRYSLER CORPORATION
