>> D << Oil Pan, Upper Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Clean both gasket surfaces of the upper oil pan and cylinder block.
- Apply a 4 mm (0.2 inch) diameter bead of sealant (MITSUBISHI Genuine Parts number MD970389 or equivalent) to the upper oil pan.

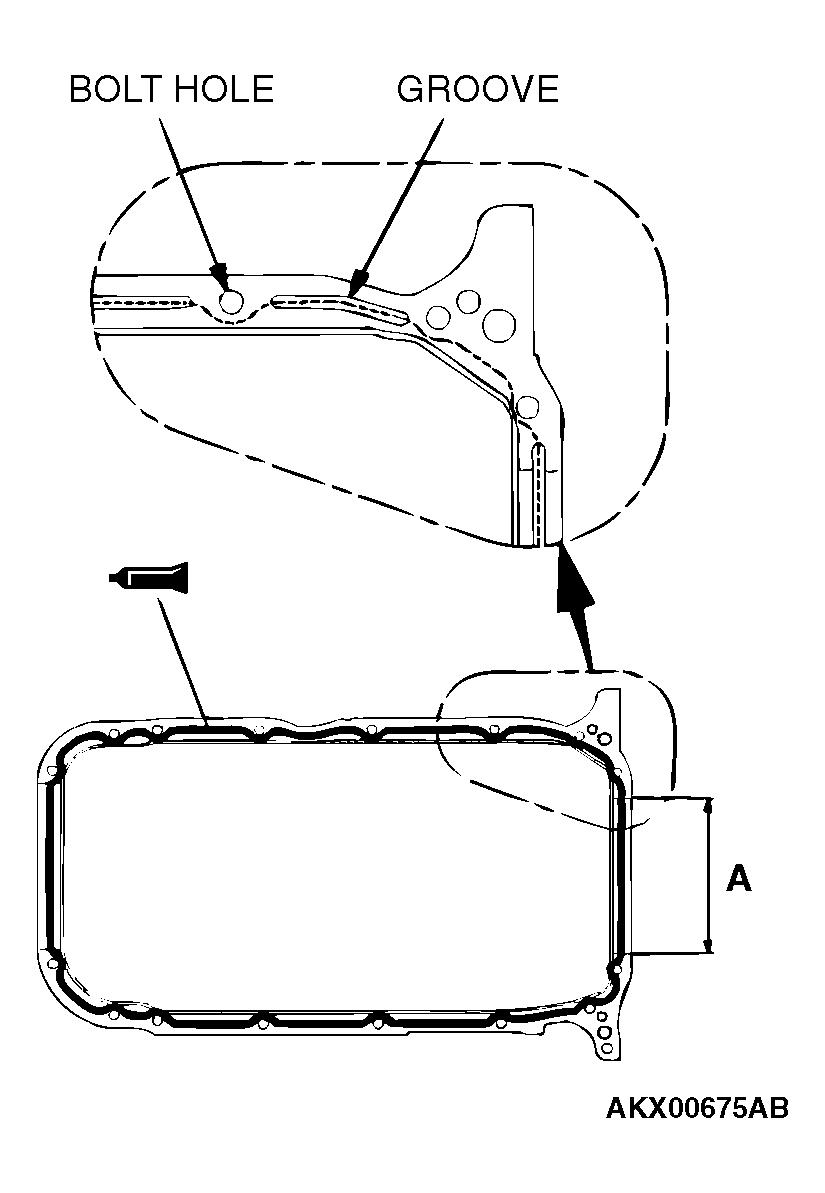

Apply sealant as indicated by the broken line in the illustration; the grooves must be traced and the bolt holes must be surrounded with a bead of sealant.
CAUTION: When installing the upper oil pan, be sure not to expel the sealant from the oil pan flange at portion A in the illustration. - Install the oil pan to the bottom of the cylinder block.NOTE: Be sure to install the oil pan quickly while the sealant is wet (within 15 minutes).
- Tighten the upper oil pan bolts in the sequence shown.
Tightening torque: 9.0 +/- 3.0 N.m (80 +/- 27 in-lb)
NOTE: After installation, keep the sealed area away from the oil and coolant for approximately one hour.
