>> C << Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide of special tool MD998717 to the front end of the crankshaft.
  2. Apply engine oil to the lip area of a new oil seal and push it in until it contacts the oil pump case.
    Fig 1: Applying Engine Oil To Lip Area
    G04538462Courtesy of DAIMLERCHRYSLER CORPORATION
  3. Using special tool MD998717, press-fit the oil seal into the oil pump case.

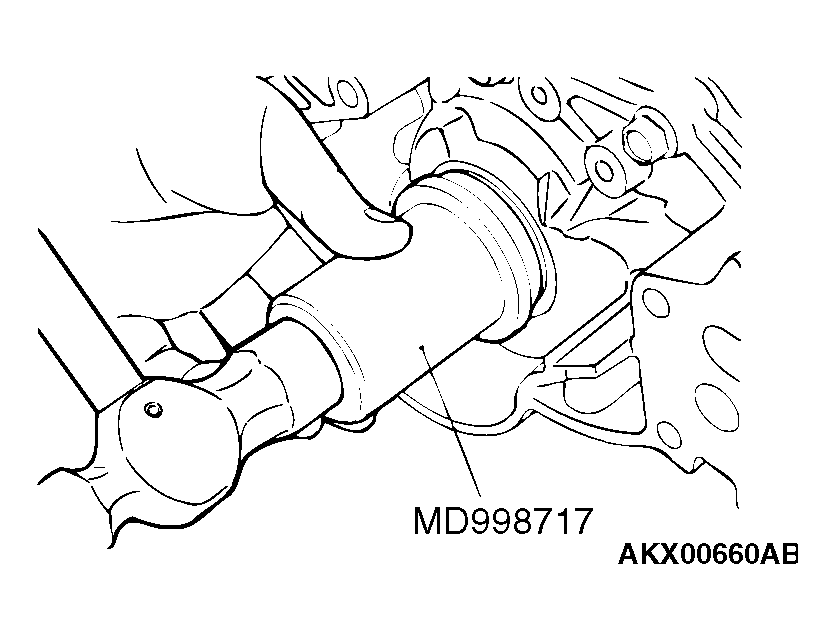

    Fig 2: Pressing-Fit Oil Seal Into Oil Pump Case
    G04538463Courtesy of DAIMLERCHRYSLER CORPORATION
