Oil Pump

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Check the tip clearance.
Standard value: 0.06 - 0.18 mm (0.003 - 0.007 inch)

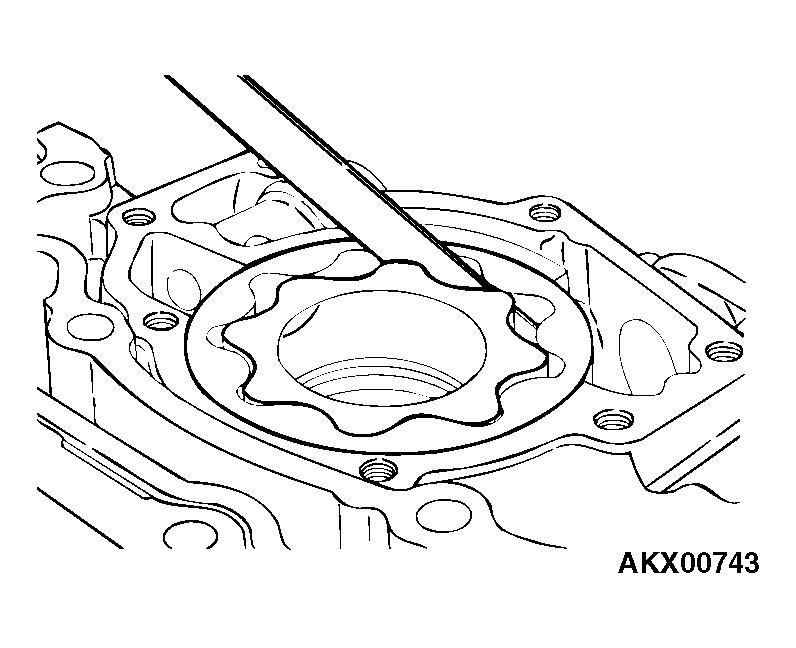

Fig 1: Checking Tip Clearance
Courtesy of DAIMLERCHRYSLER CORPORATION
Check the side clearance.
Standard value: 0.04 - 0.10 mm (0.002 - 0.003 inch)

Fig 2: Checking Side Clearance
Courtesy of DAIMLERCHRYSLER CORPORATION
Check the body clearance.
Standard value: 0.10 - 0.18 mm (0.004 - 0.007 inch)

Limit: 0.35 mm (0.013 inch)

Fig 3: Checking Body Clearance
Courtesy of DAIMLERCHRYSLER CORPORATION
