<< B >> Retainer Lock Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set special tool MD998735 or MD998772 as illustrated to compress the valve spring. Remove the retainer locks.
  2. Relieve the spring tension and remove the valve, retainer, spring, etc.

    Store removed valves, springs and other parts, tagged to indicate their cylinder number and location for assembly.

    Fig 1: Compressing Valve Spring Using Special Tool MD998735
    G04538436Courtesy of DAIMLERCHRYSLER CORPORATION

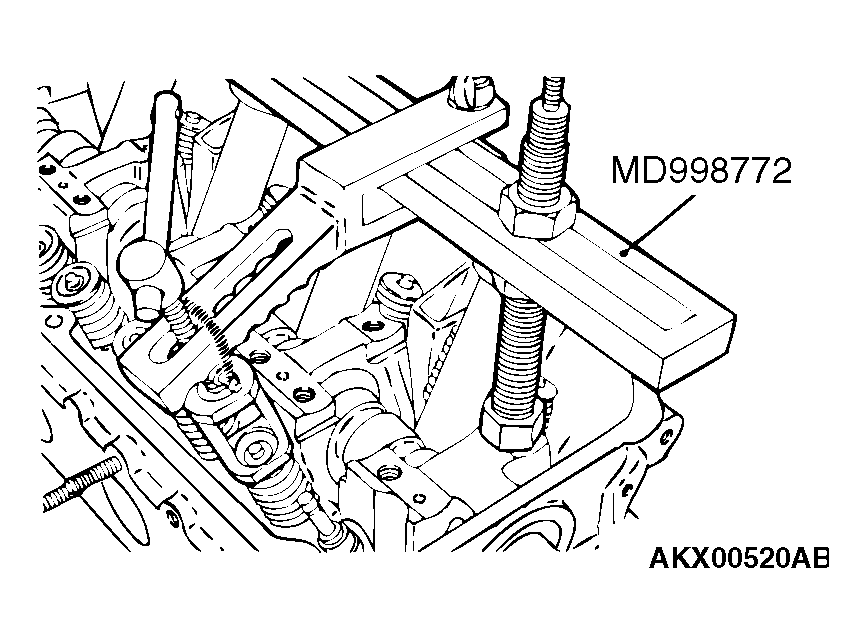

    Fig 2: Removing Valve, Retainer And Spring Etc
    G04538437Courtesy of DAIMLERCHRYSLER CORPORATION
