>> D << Cylinder Head Bolt Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the cylinder head bolt with a washer attached into the bolt hole in the cylinder head. The washer must be set with the "rounded shoulder" side upward.
    Fig 1: Inserting Cylinder Head Bolt With Washer
    G04538443Courtesy of DAIMLERCHRYSLER CORPORATION
  2. Tighten the cylinder head bolts to the specified torque in the sequence shown.

    Tightening torque: 108 +/- 5 N.m (80 +/- 4 ft-lb)

  3. Loosen all bolts fully.
  4. Retighten the cylinder head bolts to the specified torque in the sequence shown.

    Tightening torque: 108 +/- 5 N.m (80 +/- 4 ft-lb)

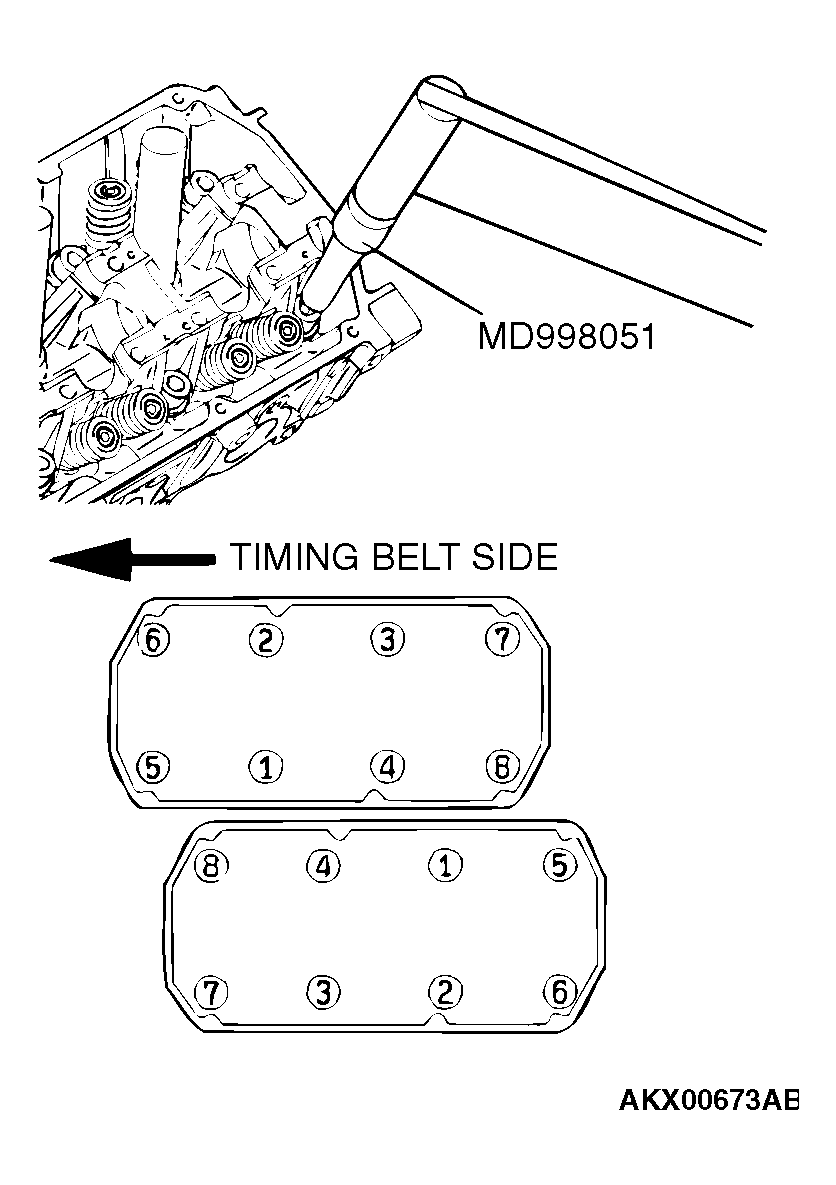

    Fig 2: Tightening Cylinder Head Bolts To Specified Torque In Sequence
    G04538444Courtesy of DAIMLERCHRYSLER CORPORATION
